51 16 195 Removing and installing center armrest: Installation:

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

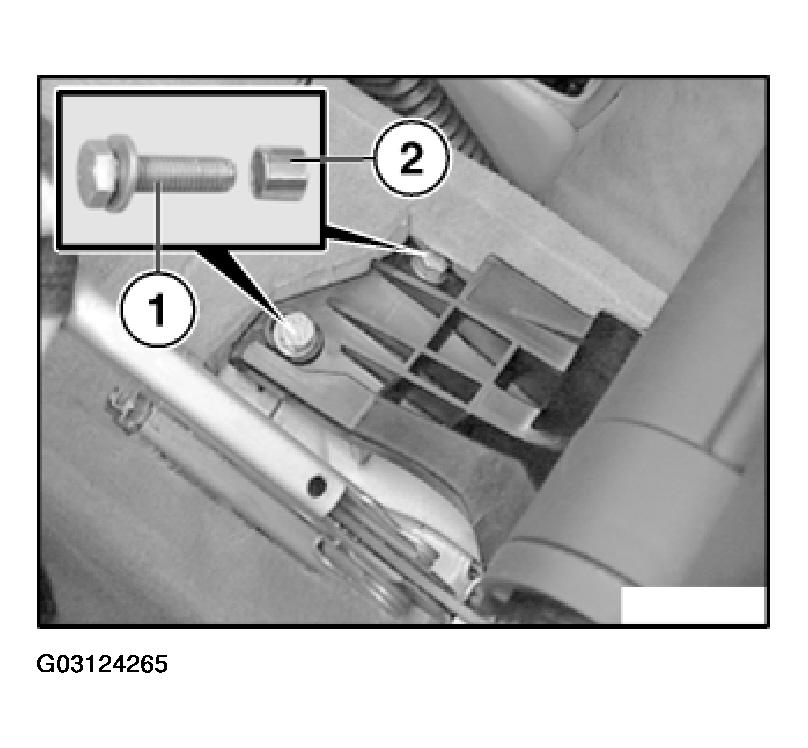

Fit screws (1) with space bushings (2).

Fig 1: Unscrewing Bolts
Courtesy of BMW OF NORTH AMERICA, INC.

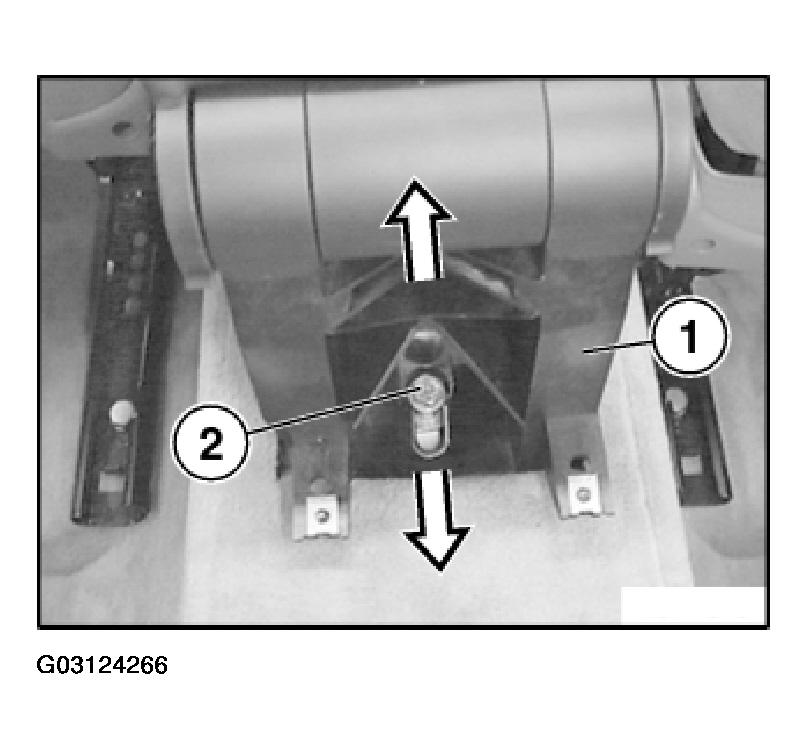

Push center armrest (1) towards rear until screw (2) is located in assembly hole and remove armrest (1) towards top.

Fig 2: Pushing Center Armrest

Courtesy of BMW OF NORTH AMERICA, INC.

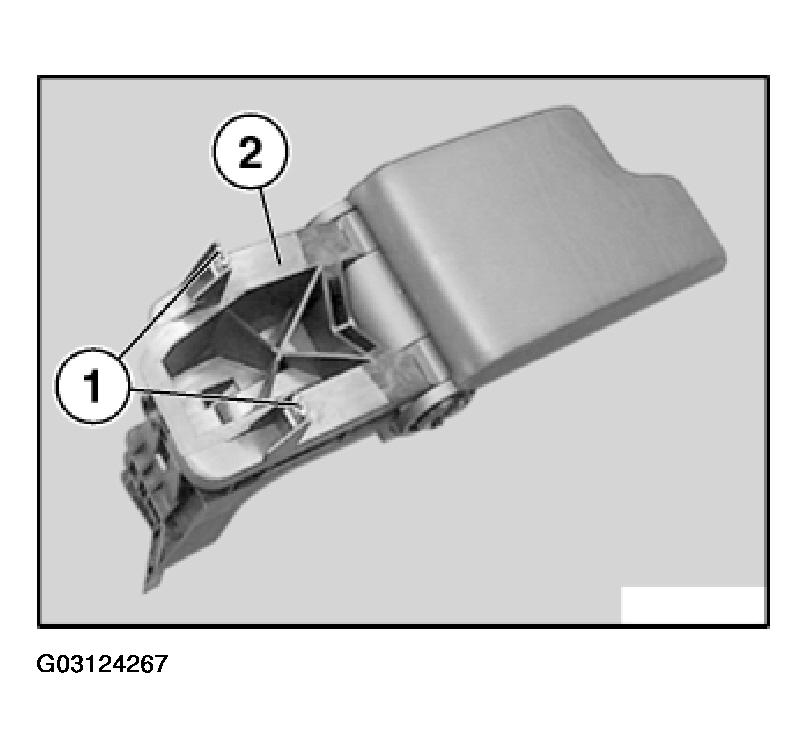

If necessary, replace faulty metal nuts (1) in center armrest (2).

Fig 1: Replacing Metal Nuts In Center Armrest
Courtesy of BMW OF NORTH AMERICA, INC.
