Removal of versions (C) and (D):

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

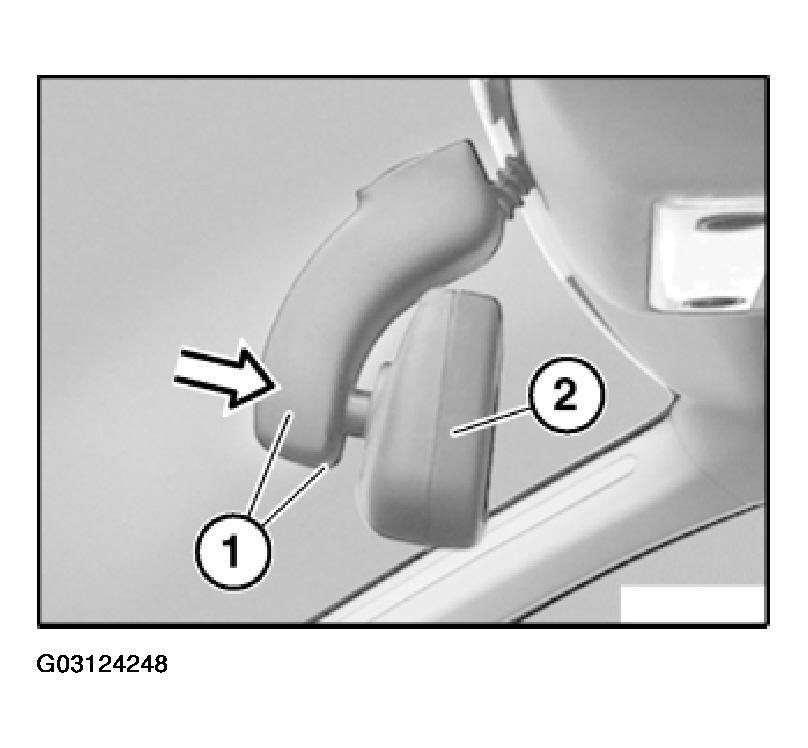

Press end caps (1) towards mirror housing (2); this releases clip connection of both caps (1).

Fig 1: Pressing End Caps

G03124248

Courtesy of BMW OF NORTH AMERICA, INC.

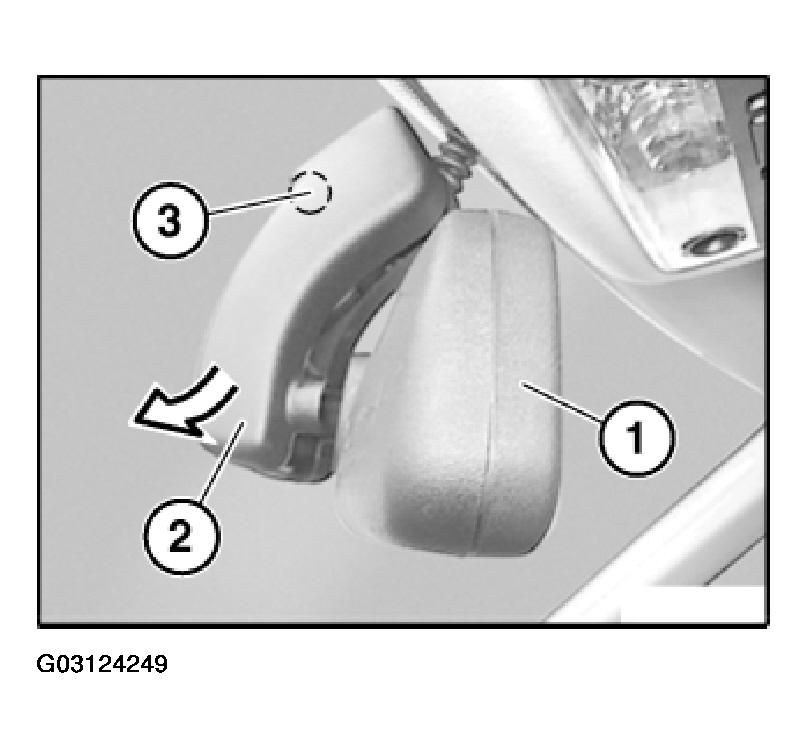

Twist mirror (1) at an angle towards front and right/top.

Swivel left end cap (2) off ball neck in direction of arrow; this detaches the engagement clip (3) from the metal foot.

Fig 2: Installing Twist Mirror

G03124249

Courtesy of BMW OF NORTH AMERICA, INC.

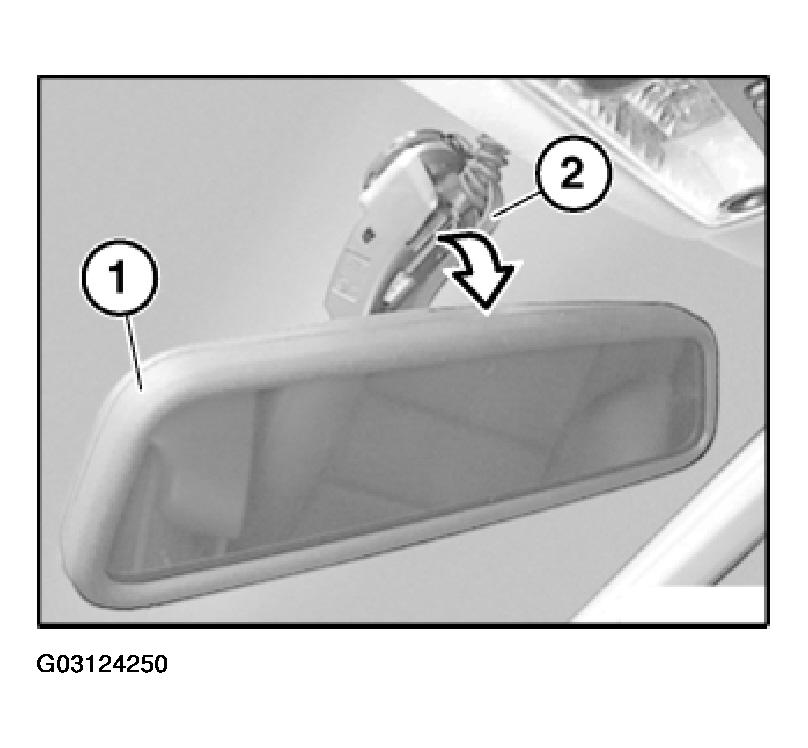

Twist mirror (1) at an angle towards front and left/top.

Swivel right end cap (2) off ball neck in direction of arrow; this detaches the engagement clip from the metal foot.

Fig 3: Installing Swivel Right End Cap Off Ball Neck

G03124250

Courtesy of BMW OF NORTH AMERICA, INC.

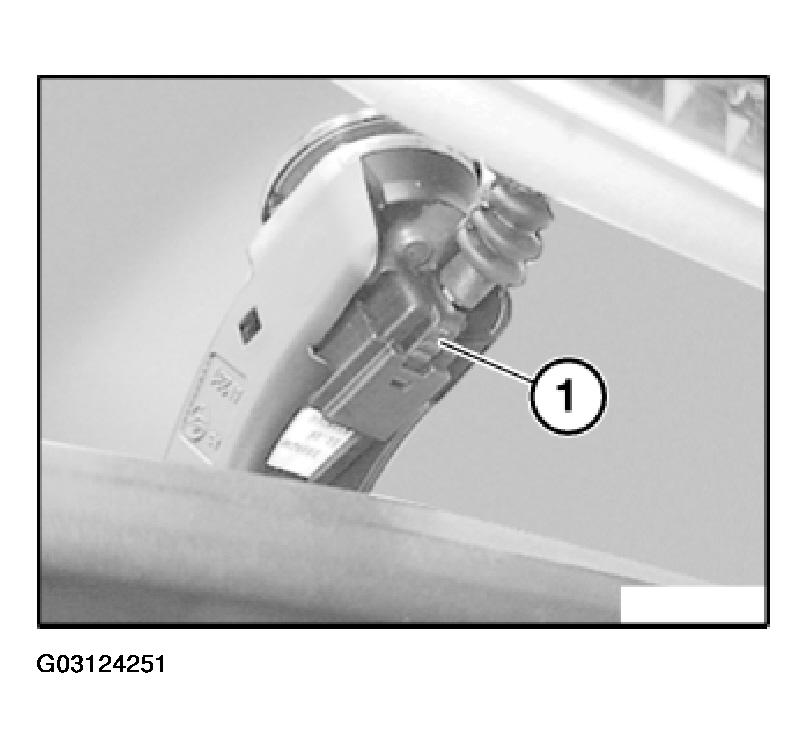

Disconnect plug connection (1).

Fig 4: Disconnecting Plug Connection

G03124251

Courtesy of BMW OF NORTH AMERICA, INC.

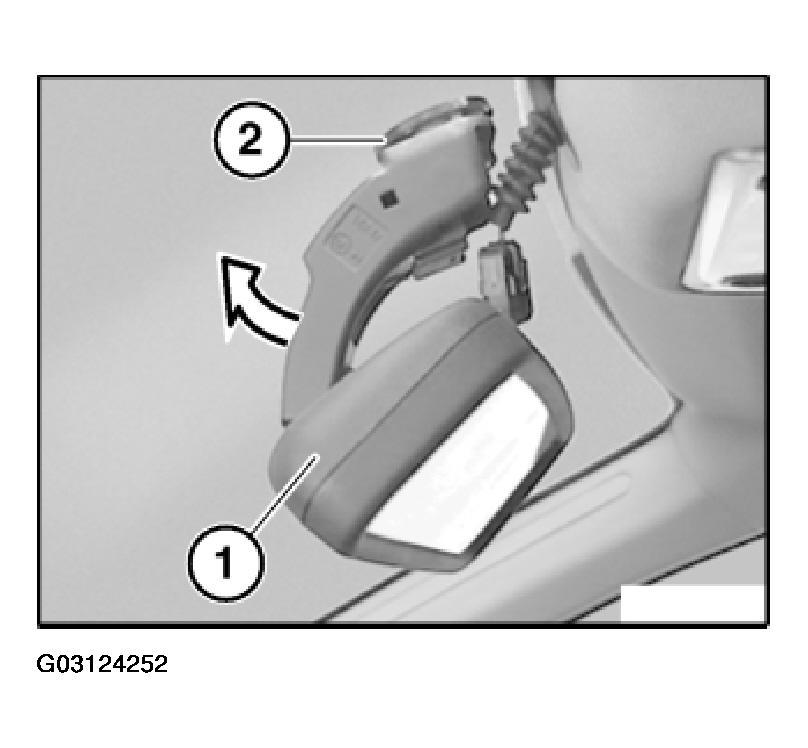

IMPORTANT:

Do not remove interior mirror (1) towards rear or by twisting (risk of damage).

Snap out interior mirror (1) from mirror mount (2) towards front by striking with ball of thumb and remove.

Fig 5: Identifying Snap Out Interior Mirror From Mirror Mount

G03124252

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

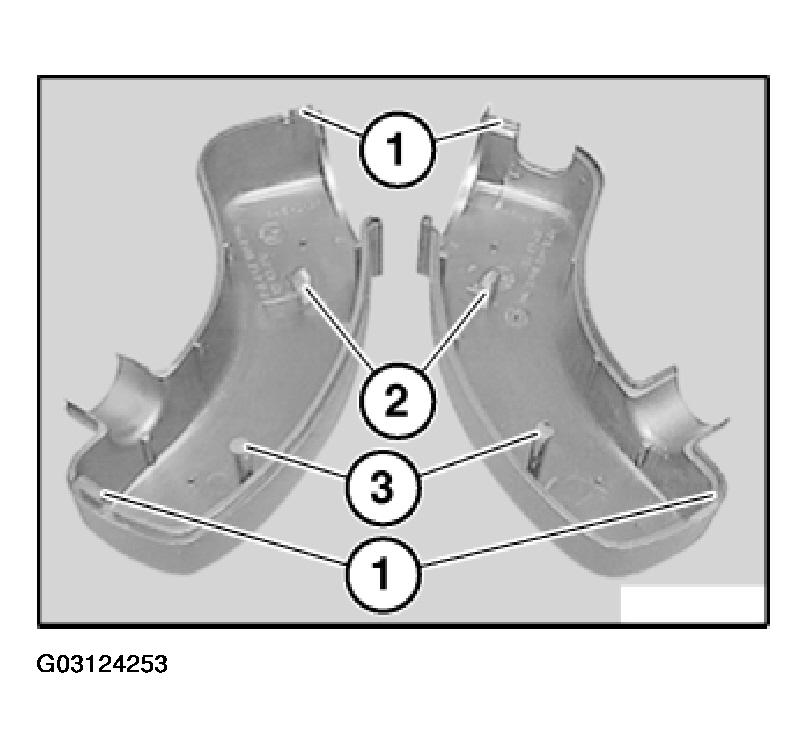

Clips (1) and retaining hooks (2) of end caps (3) must not be damaged, replace if necessary.

Fig 6: Installing Clips & Retaining Hooks Of End Caps

G03124253

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

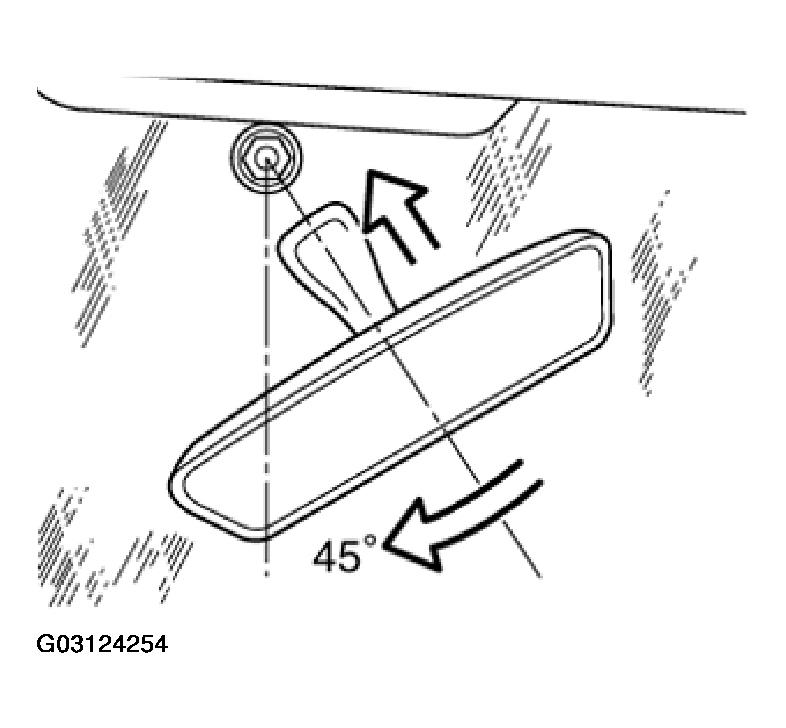

Twist mirror foot by approx. 45° and fit to mirror mount.
Turn mirror foot until it engages on mirror base.

Fig 7: Installing Twist Mirror Foot
Courtesy of BMW OF NORTH AMERICA, INC.
