Removal of version (B):

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Version with automatic dim action (electro-chrome technology) for interior mirror and/or remote control:

Lever out plug cover and disconnect plug connection.

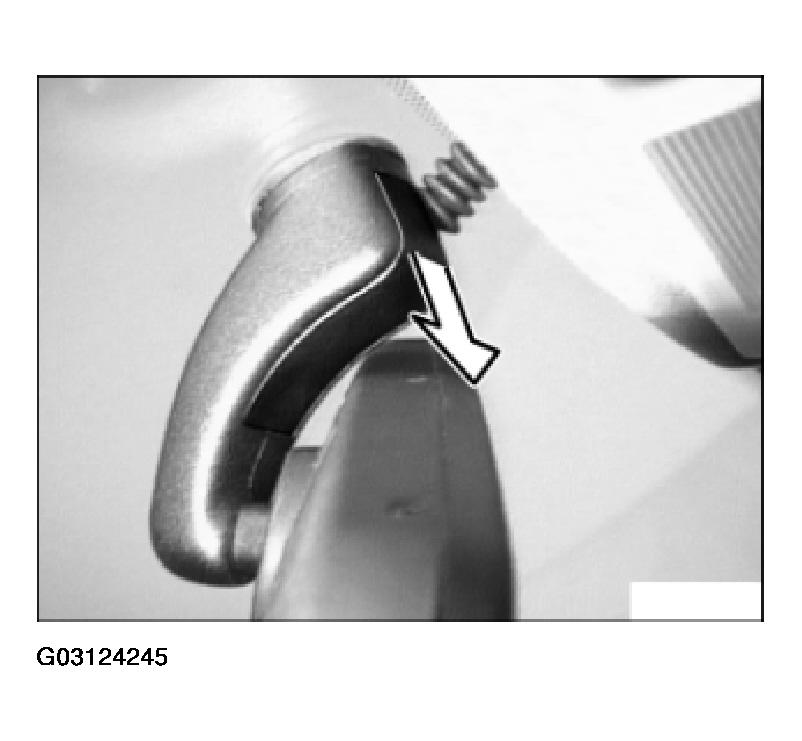

Fig 1: Identifying Lever Out Plug Cover & Disconnecting Plug Connection
G03124245Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT:
  1. Do not remove interior mirror (1) towards rear or by twisting (risk of damage).

Snap out interior mirror (1) from mirror mount towards front by striking with ball of thumb and remove.

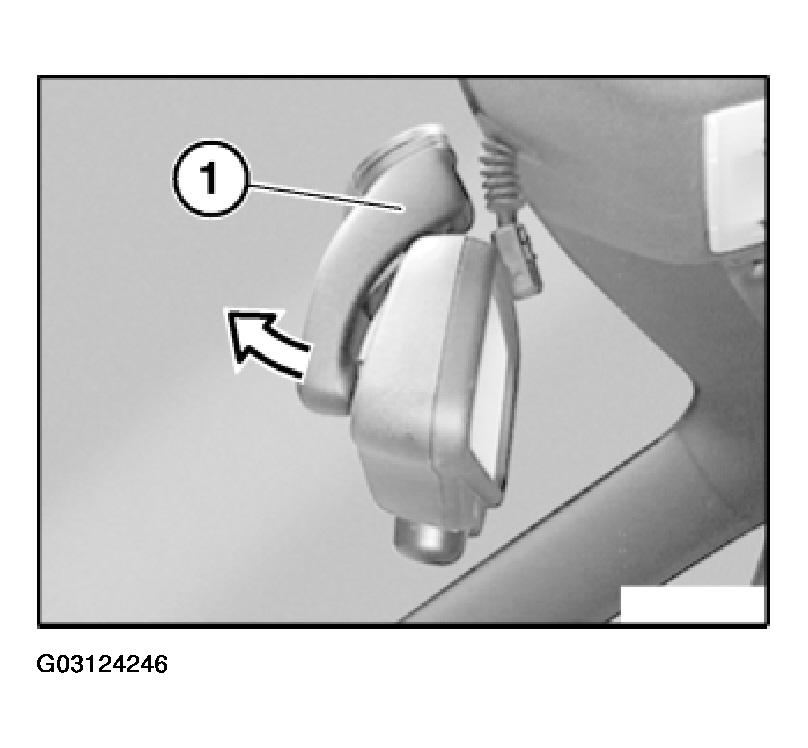

Fig 2: Removing Interior Mirror
G03124246Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

  1. Twist mirror foot by approx. 45° and fit to mirror mount.
  2. Turn mirror foot until it engages on mirror base.

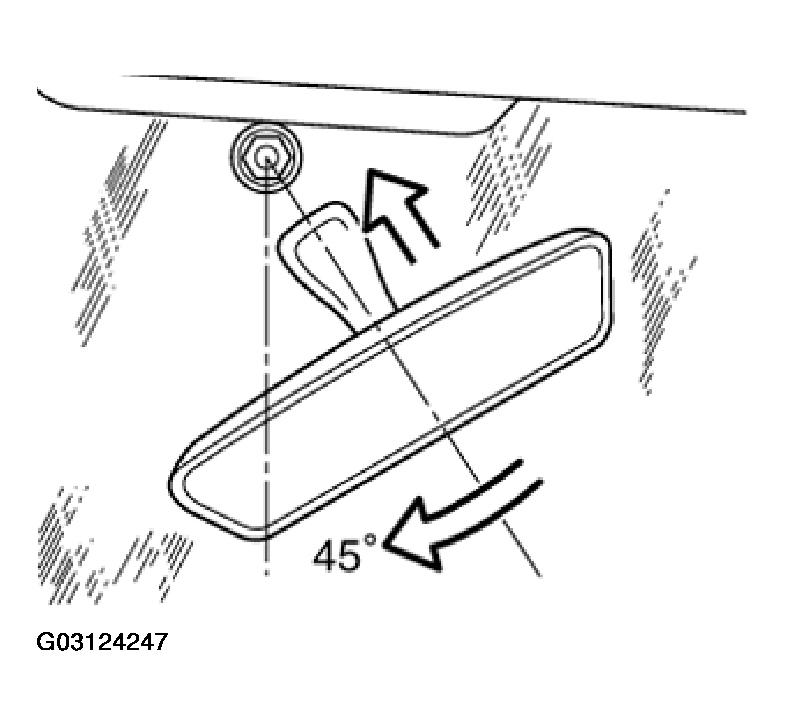

Fig 3: Installing Twist Mirror Foot
G03124247Courtesy of BMW OF NORTH AMERICA, INC.

Only replace with version with remote control for central locking:

Installation:

Initialize all transmitters (ignition keys), refer to Owner's Handbook.
