51 16 000 Removing and installing/replacing rear-view mirror on left or right front door: Notes

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Partly remove cover (anti-trapping protection) at front from inside of door window frame, refer to REMOVING AND INSTALLING/REPLACING COVER (ANTI-TRAPPING PROTECTION) ON DOOR WINDOW FRAME, LEFT OR RIGHT, INSIDE  .

Version with loudspeaker:

Unfasten plug connection (1).

Release screws (2) and remove speaker (3).

Release screws (2) and (4).

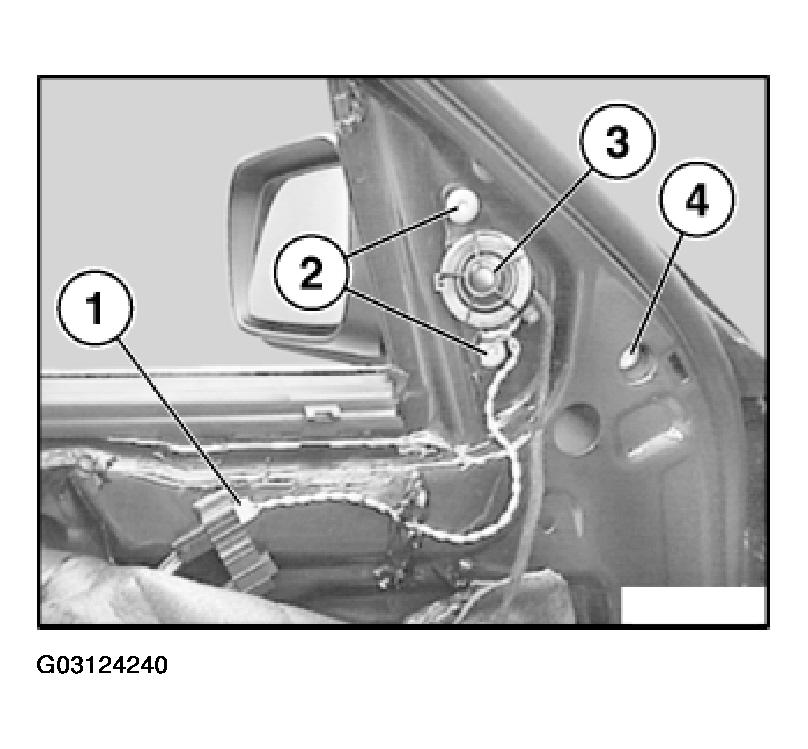

Fig 1: Releasing Screws
G03124240Courtesy of BMW OF NORTH AMERICA, INC.
