Overview for side window cementing (E46 Touring):

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

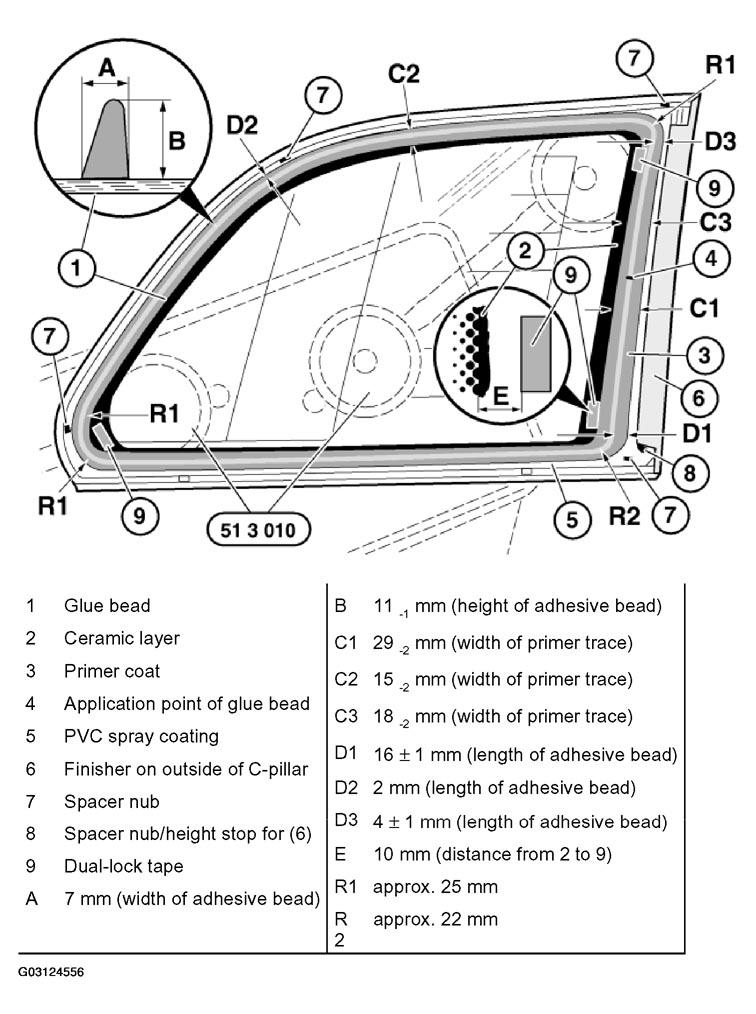

Fig 1: Overview For Side Window Cementing (E46 Touring)

Courtesy of BMW OF NORTH AMERICA, INC.

Attach special tool 51 3 010 to tool trolley. Moisten suction surfaces and secure side window.

When reusing old side window, remove residual adhesive to 0.5 mm.

Remove rest of dual-lock tapes (9). Clean bonding area and stick on new dual-lock tapes (9).

Almost vertical part (B) of adhesive bead (1) must face PVC spray coating (5).

Spread adhesive bead with special tool 00 9 322.

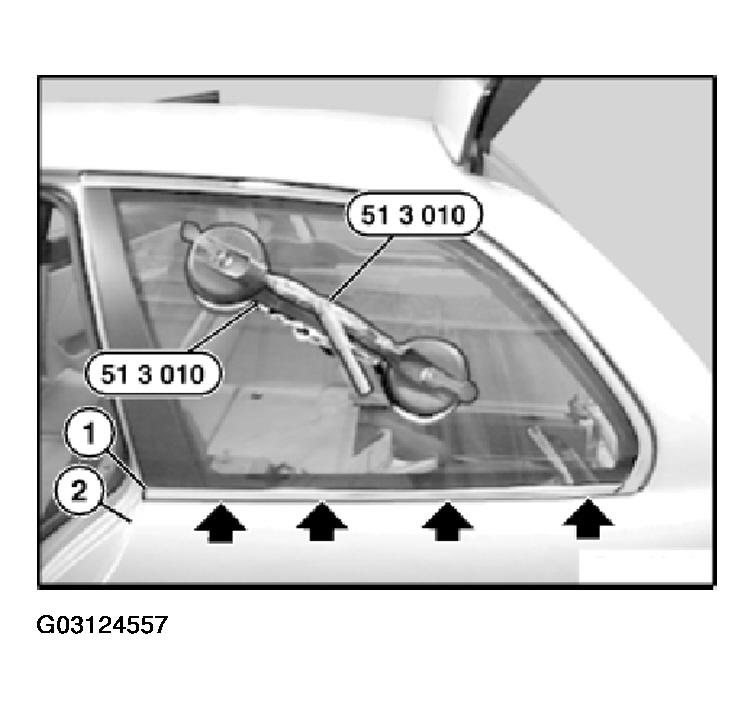

Fig 2: Fitting Side Window With Special Tool 51 3 010 & Chrome Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Fit side window with special tool 51 3 010 at bottom. Chrome strip (1) must be flush at front with body edge (2).

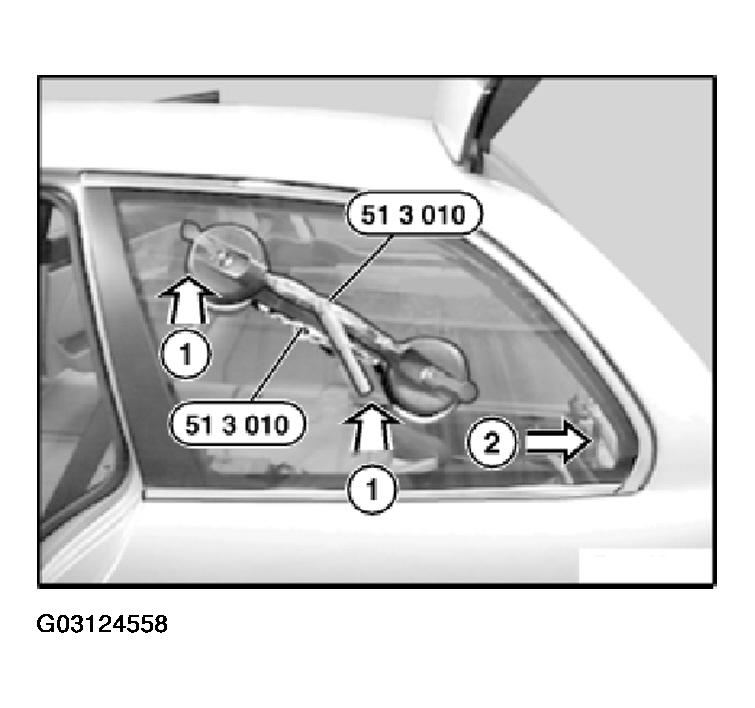

Fig 3: Attaching Side Window At Top & Sliding Completely To Rear

Courtesy of BMW OF NORTH AMERICA, INC.

Attach side window at top (1) and slide completely to rear (2). Close rear door.

Adapt side window if necessary to rear-door and snap into dual-lock tapes.

Fix side window in position with yellow plastic adhesive tape (sourcing reference: BMW Parts Service).
