51 23 265 Removing and installing/replacing left or right gas strut for engine bonnet/hood
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Risk of injury and damage!
For the following tasks, you must take the appropriate measures to support the engine bonnet/hood.
As an alternative, you can enlist the help of a second person to hold the bonnet/hood.
For the following tasks, you must take the appropriate measures to support the engine bonnet/hood.
As an alternative, you can enlist the help of a second person to hold the bonnet/hood.
Raise bonnet/hood lid.

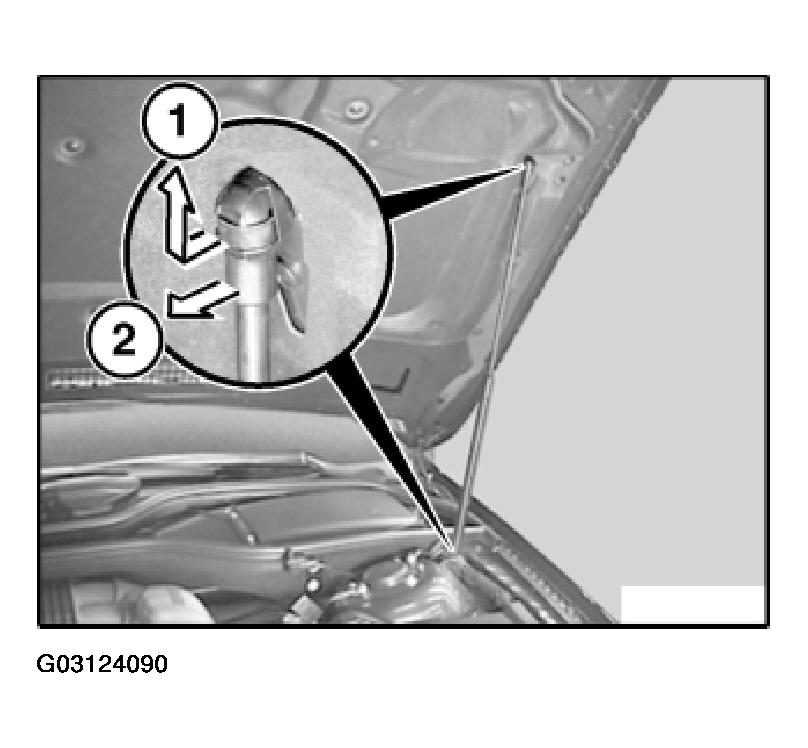

Removing gas spring strut at top and bottom:
- Push retainer spring to end of gas spring strut.
- Remove gas spring strut from ball head.
