51 21 300 Removing and installing or replacing window cavity cover strip on outside of left or right front door

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 311

Attach adhesive tape (1) underneath window cavity cover strip (2) (risk of damage).

Fig 1: Attaching Adhesive Tape

Courtesy of BMW OF NORTH AMERICA, INC.

Carry out disassembly with special tool 00 9 311.

Lever out window cavity cover strip (1) starting at rear towards front and pull out under rearview mirror (2).

Installation:

Coat window cavity cover strip with water prior to installation.

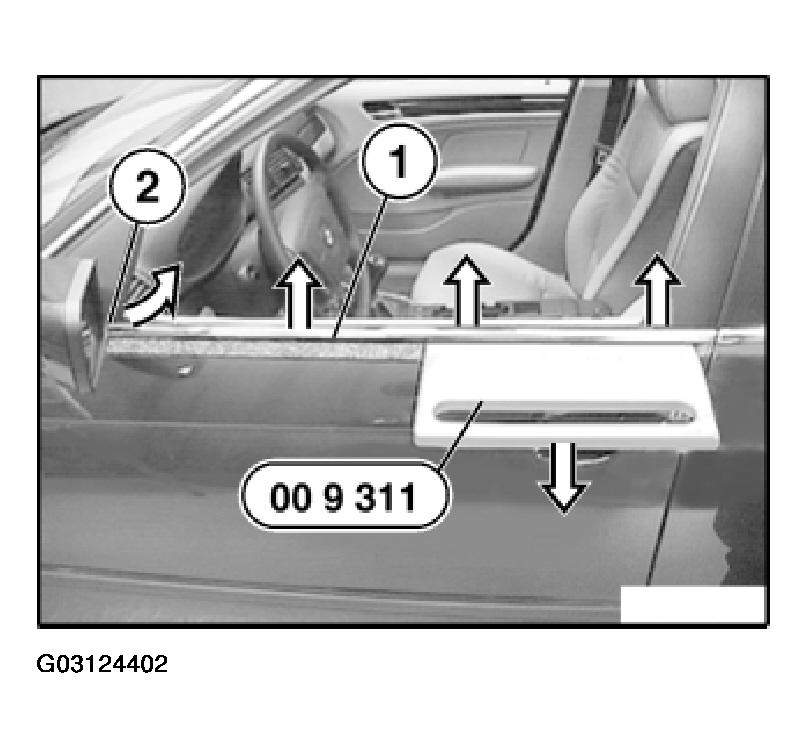

Fig 2: Using Special Tool 00 9 311

Courtesy of BMW OF NORTH AMERICA, INC.
