51 21 200 Removing and installing/replacing outside handle and lock actuator on left or right front door (from 09/00): Notes

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The lock actuator has a Bowden cable from year of manufacture 09/2000.

Remove acoustic insulation. See 51 48... Removing and installing/replacing sound insulation in front door, left or right

Remove outside handle.51 21 170 Removing and installing/replacing outside handle on left or right front door (from 09/00)

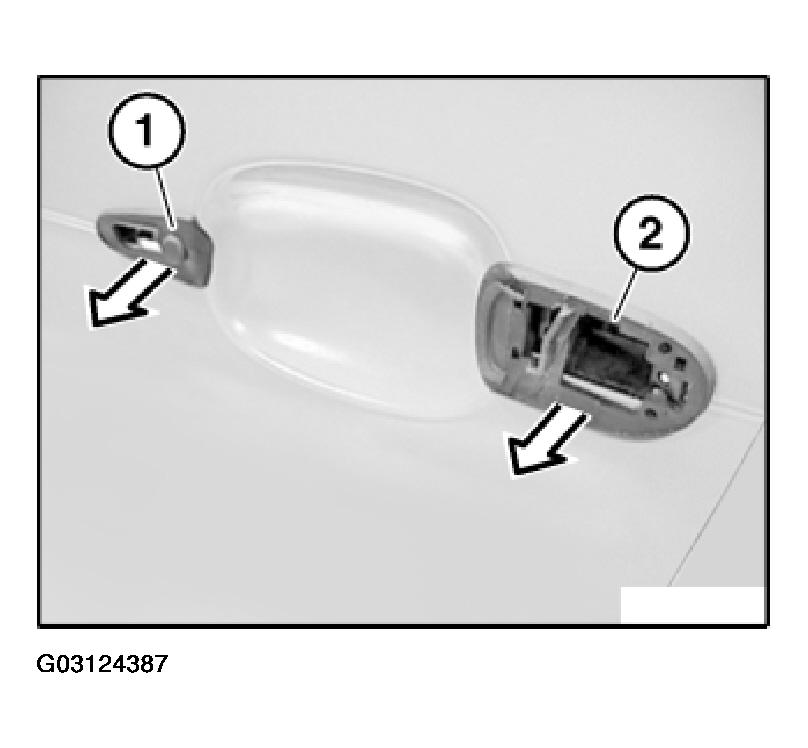

Remove seals (1) and (2) for outside handle.

Fig 1: Removing Seals & For Outside Handle

Courtesy of BMW OF NORTH AMERICA, INC.

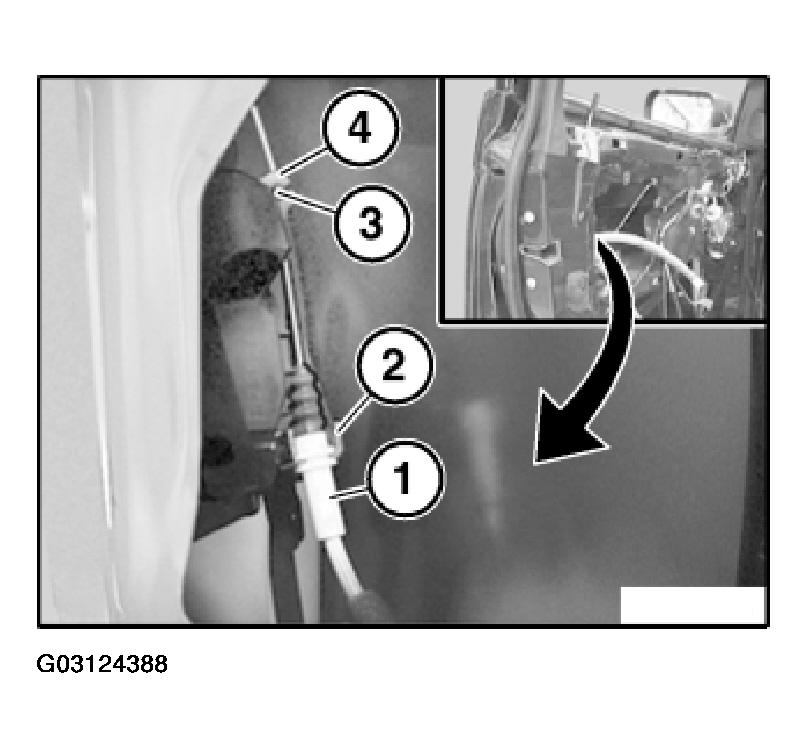

Lever out Bowden cable (1) from holder (2) with screwdriver.

CAUTION: Do not bend holder (2).

Unhook Bowden cable nipple (3) from lever (4).

Fig 2: Unhooking Bowden Cable Nipple From Lever

Courtesy of BMW OF NORTH AMERICA, INC.
