Exposing Bowden cable (3) on compact:

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

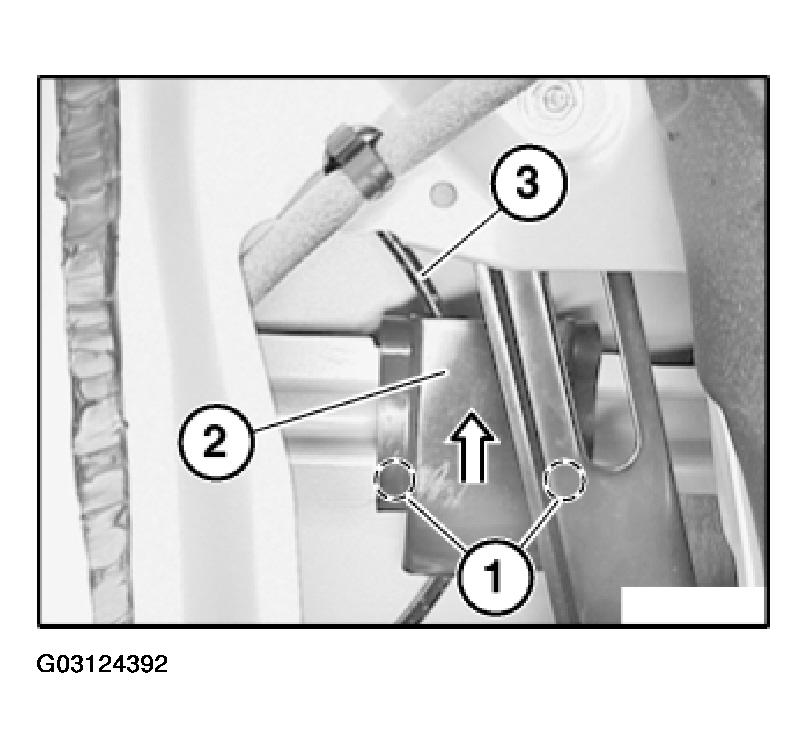

To do so, unlock catches (1) and remove guide (2) towards top.

Fig 1: Unlocking Catches & Removing Guide

G03124392

Courtesy of BMW OF NORTH AMERICA, INC.

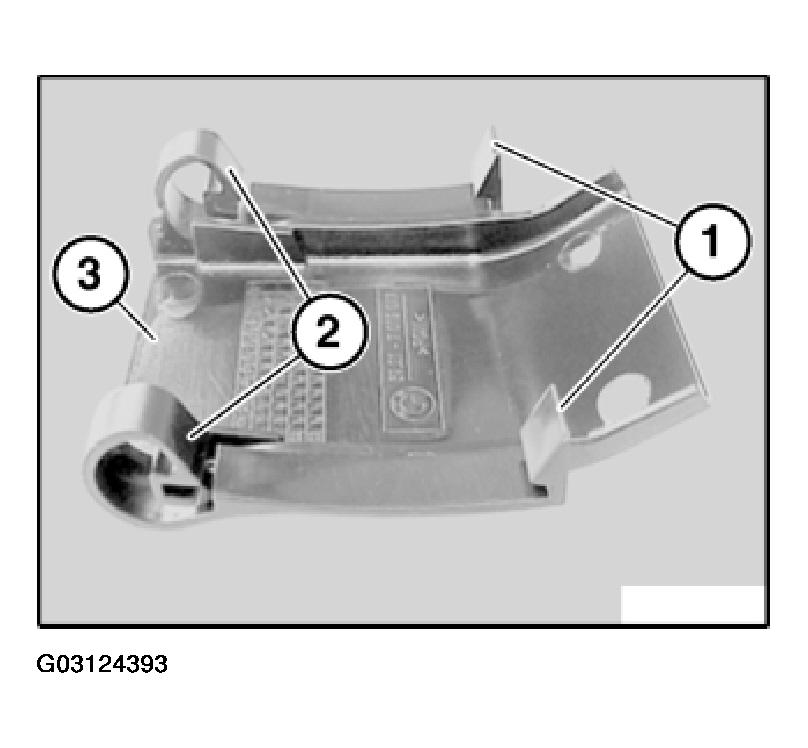

Installation:

Catches (1) and mountings (2) on guide (3) must not be damaged.

Fig 2: Installing Catches & Mountings On Guide

G03124393

Courtesy of BMW OF NORTH AMERICA, INC.

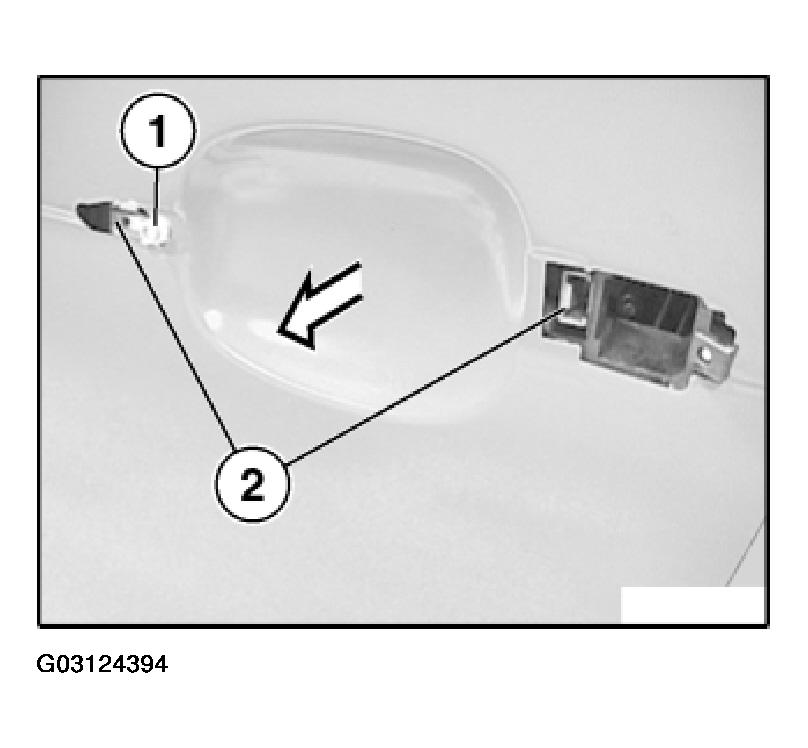

Slacken screw (1).

Lever out lock actuator (2) towards front and remove to inner door plate.

Fig 3: Identifying Slacken Screw

G03124394

Courtesy of BMW OF NORTH AMERICA, INC.

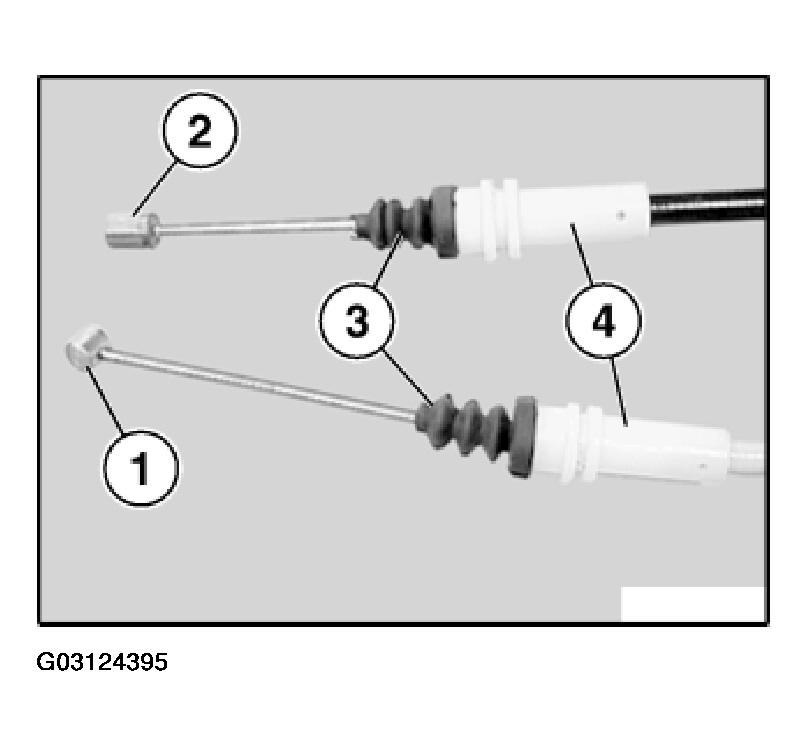

NOTE: 2-door and 4-door models have different locking systems.
The locking systems differ in the form of the Bowden cable nipple.
Bowden cable nipple (1) for 4-door model.
Bowden cable nipple (2) for 2-door model.

Installation:

Grommet (3) must be pushed onto end piece (4).

Fig 4: Identifying Bowden Cable Nipple

G03124395

Courtesy of BMW OF NORTH AMERICA, INC.

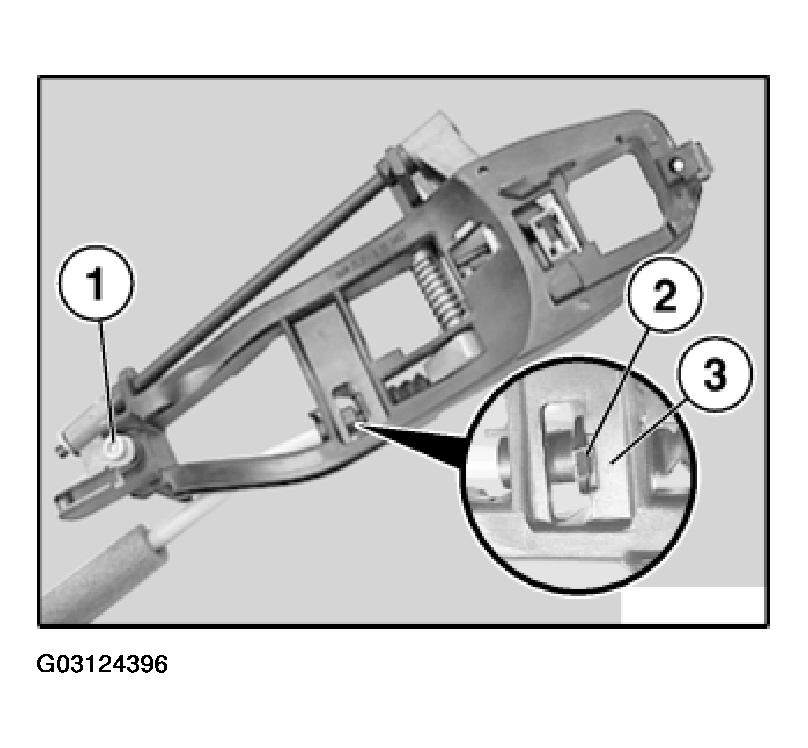

Installation:

If necessary, replace screw (1) on lock actuator (3).

Bowden cable (2) must be correctly engaged with lock actuator (3).

Fig 5: Replacing Screw On Lock Actuator

G03124396

Courtesy of BMW OF NORTH AMERICA, INC.

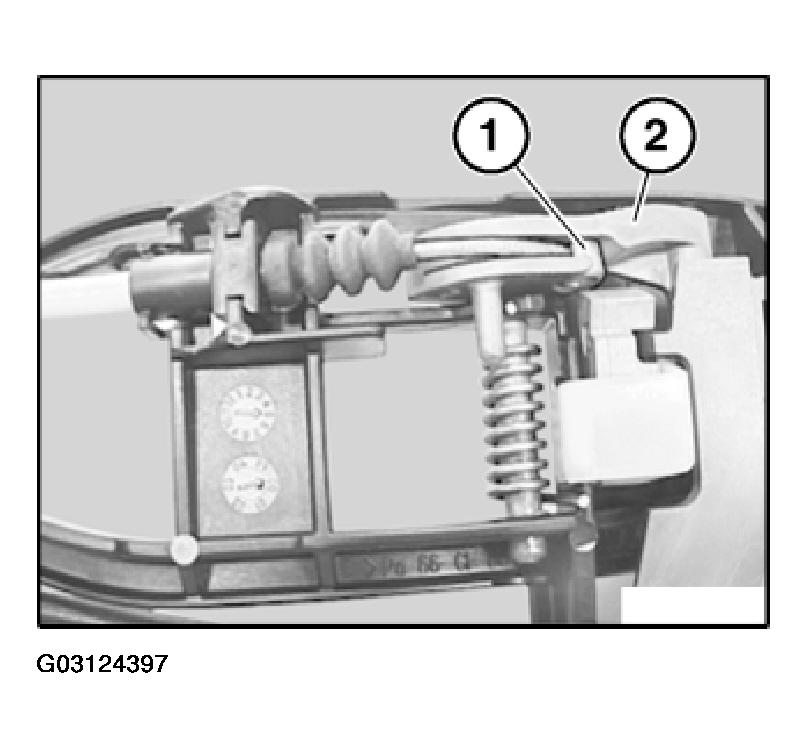

Installation:

Bowden cable nipple (1) must be correctly fitted in lock actuator (2) and must not be removed.

Fig 6: Installing Bowden Cable Nipple

G03124397

Courtesy of BMW OF NORTH AMERICA, INC.
