Exposing Bowden cable (3) on Coupe and convertible:

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

To do so, unlock catches (1) and remove guide (2).

NOTE: Guide (2) is shown on right front door.

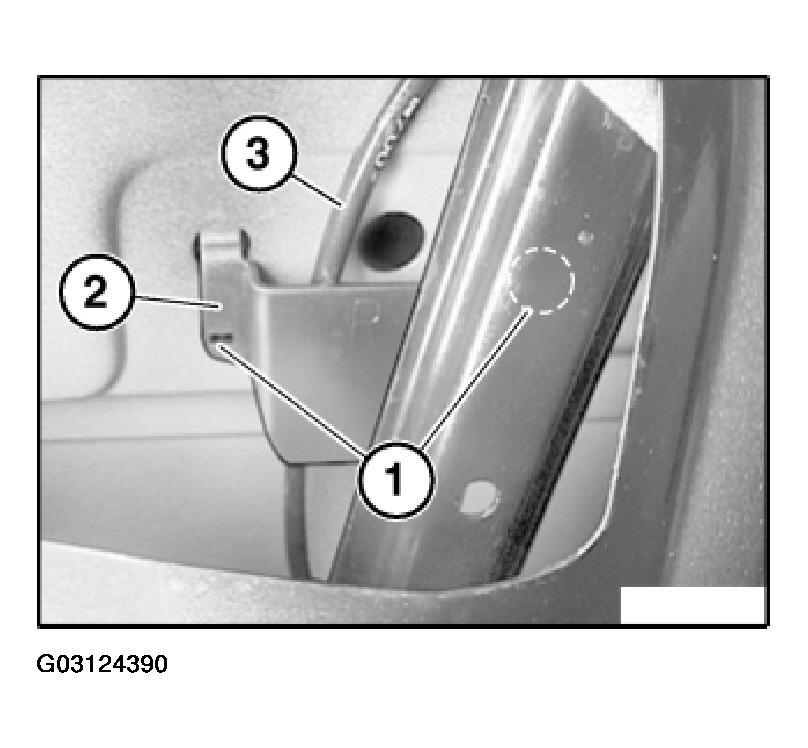

Fig 1: Unlocking Catches & Removing Guide
G03124390Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) and mounting (2) on guide (3) must not be damaged.

NOTE: Guide on right front door shown.

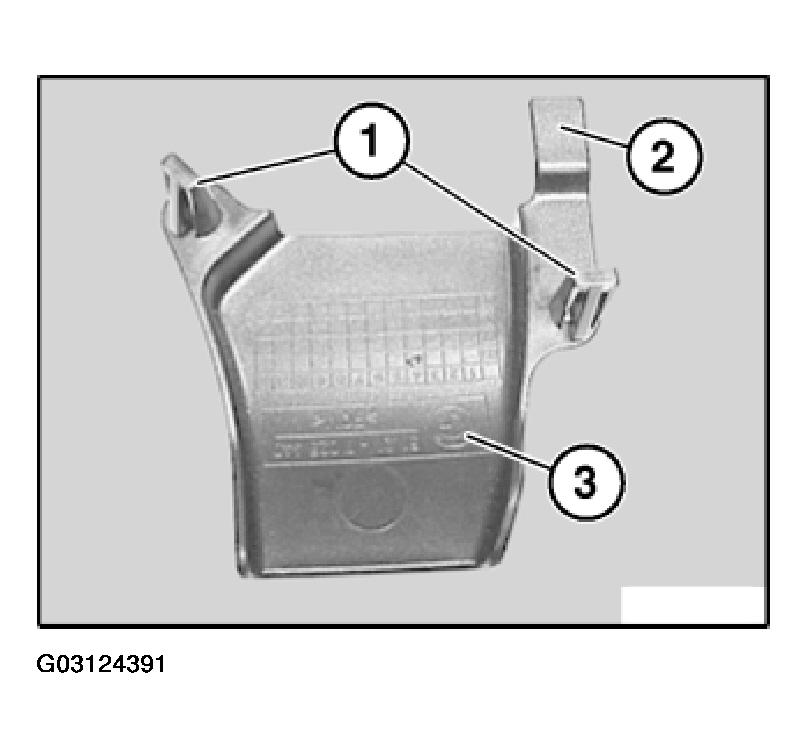

Fig 2: Installing Catches & Mounting On Guide
G03124391Courtesy of BMW OF NORTH AMERICA, INC.
