51 21 180 Removing and installing/replacing cover on outside handle: Installation:

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Fit new plate (1).

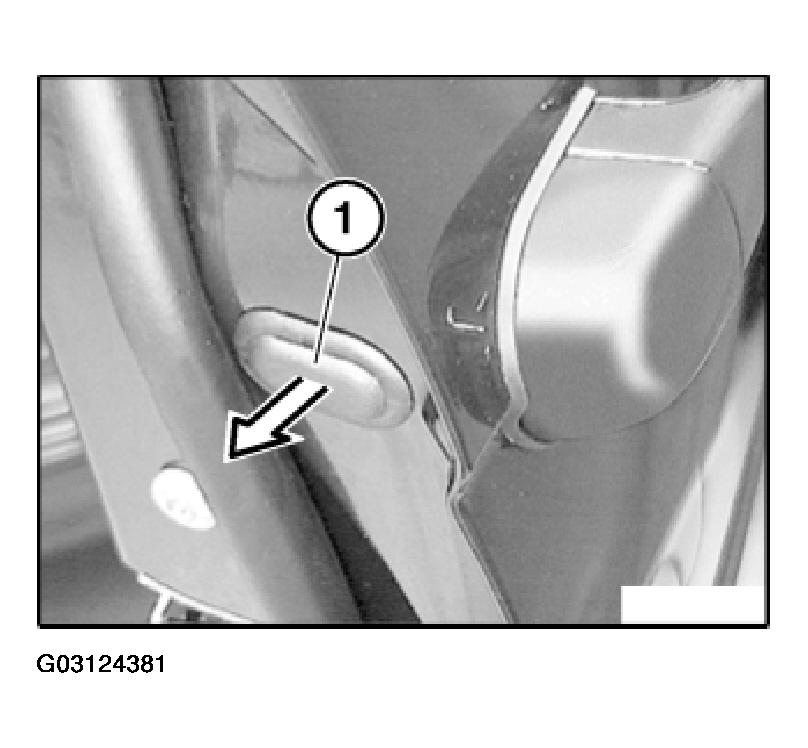

Fig 1: Removing Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew bolt (1).

Detach cover (2).

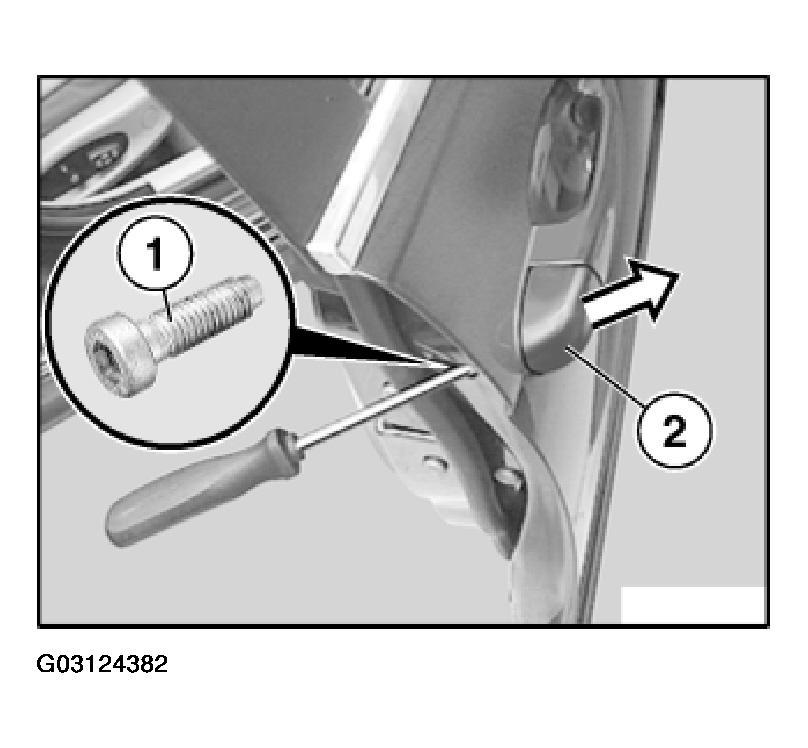

Fig 2: Unscrewing Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out catches (1) and detach cover (2) from filler element (3).

Catches (1) on cover (2) must not be damaged.

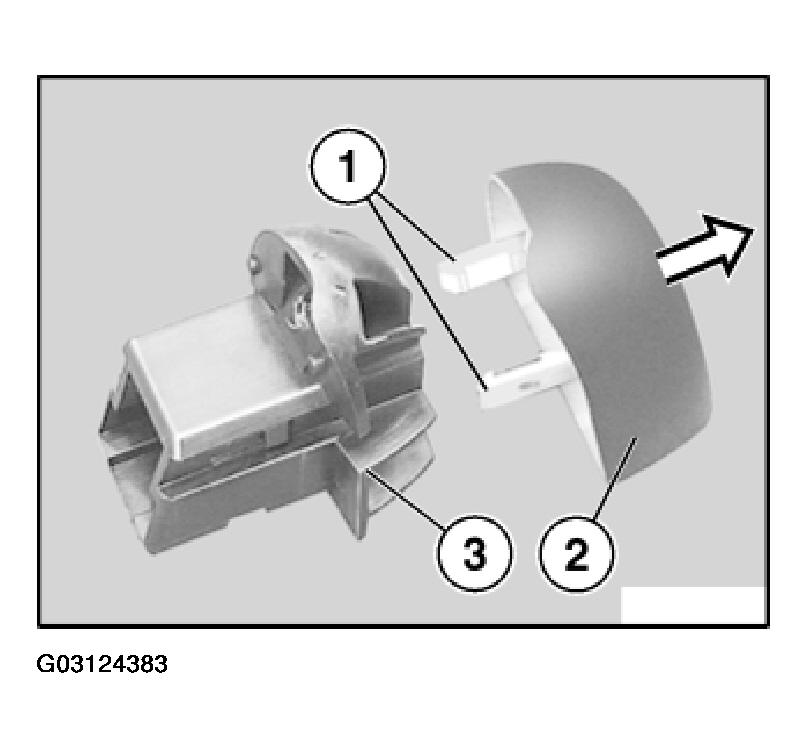

Fig 1: Installing Catches On Cover
Courtesy of BMW OF NORTH AMERICA, INC.
