51 21 170 Removing and installing/replacing outside handle on left or right front door (from 09/00): Removal:
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.
Moving lock actuator to "installation position":
Pull outside handle (1) outwards/upwards and secure with special tool 00 9 322.
In this position, tighten down screw (2) counterclockwise (left-hand thread).
Lock actuator is now in "installation position".
Installation:
Tightening torque. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .
Remove special tool 00 9 322.
NOTE:
Turn driver's and passenger sides in same direction.
3 Screw for lock cylinder

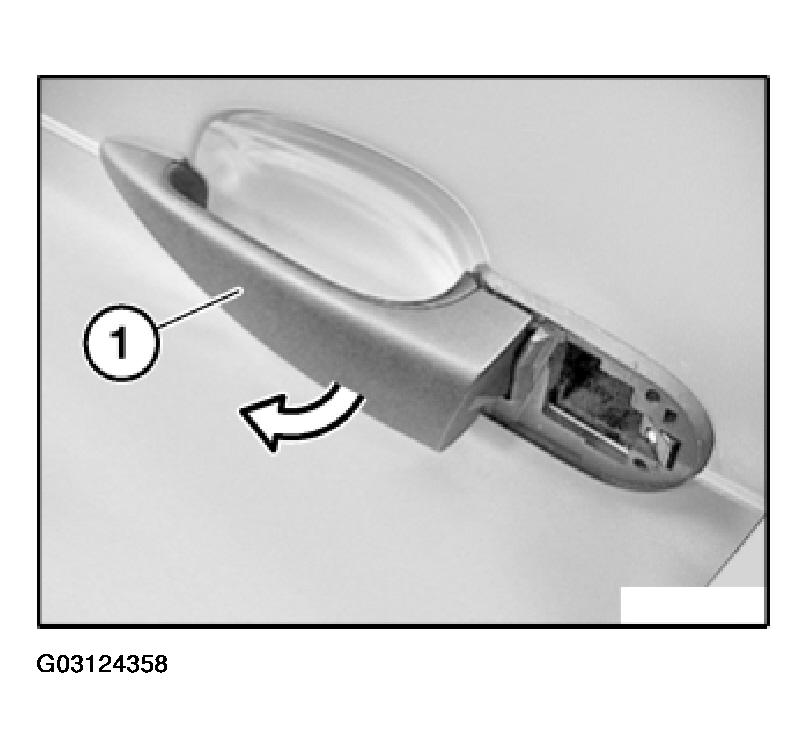

Pull outside handle (1) outwards.

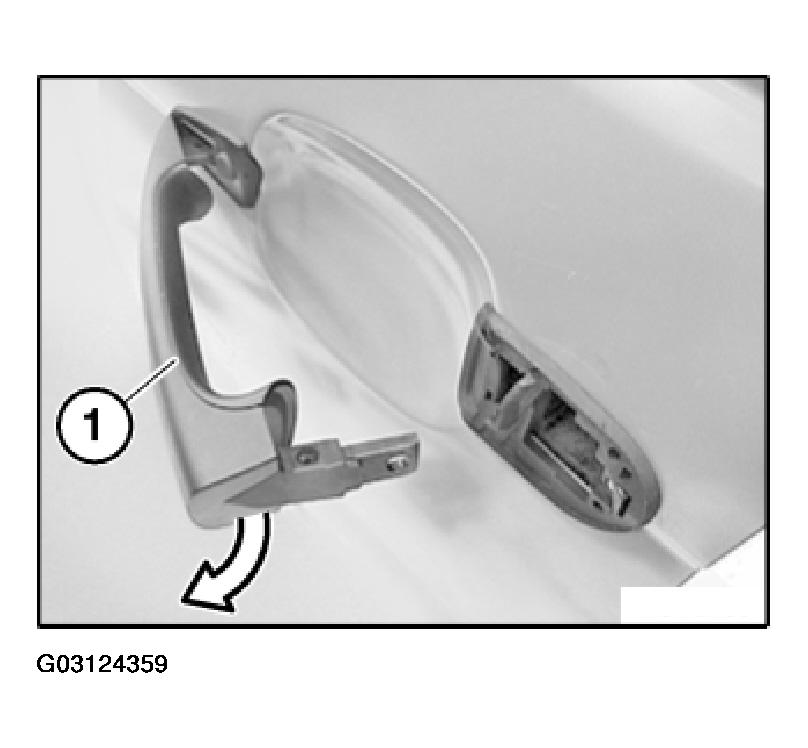

Pull off outside handle (1) towards rear/outwards from front door.
Installation:
If the outside handle (1) cannot be fitted, the lock actuator is not in the "installation position".
Installation:

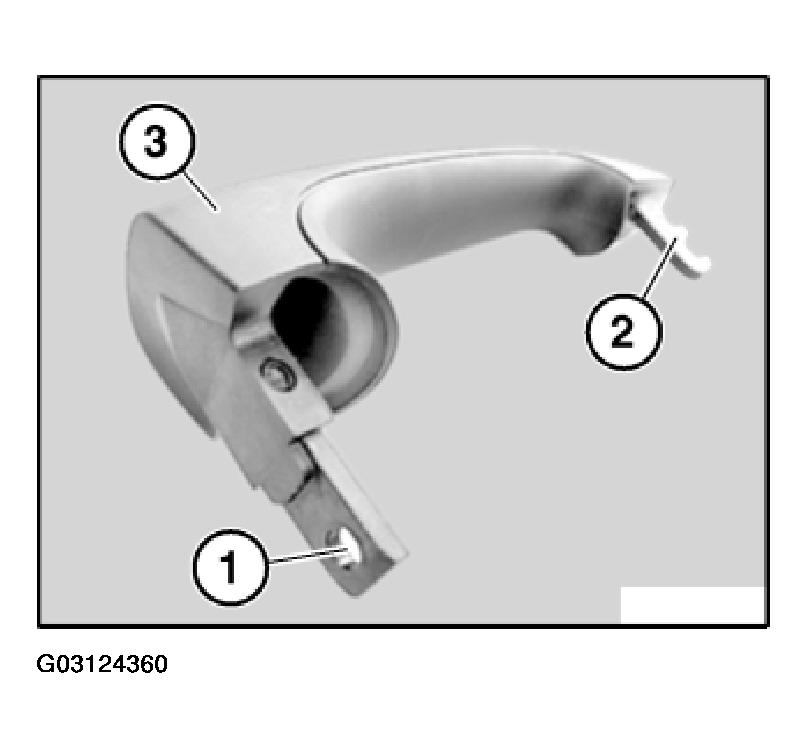

Bore (1) and guide (2) on outside handle (3) must not be damaged.
