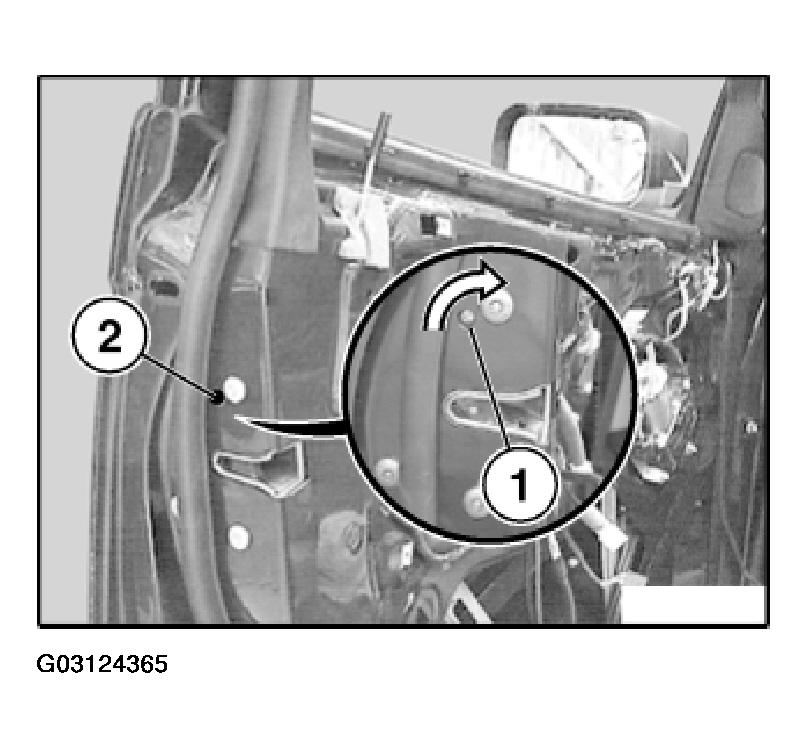

Direction of rotation of adjustment screw (1):
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.
ADJUSTING SCREW ROTATION DIRECTION
| Front left door | Front right door |
|---|---|
| Tighten down adjusting screw (1) in clockwise direction, as shown in illustration. | Tighten down adjusting screw (1) in counterclockwise direction. |
CAUTION:
Carry out function and overtravel checks only when door is open.
If door is closed and the setting at the rotary striker lock is incorrect, door cannot be opened any more and the door trim panel must be destroyed.
If door is closed and the setting at the rotary striker lock is incorrect, door cannot be opened any more and the door trim panel must be destroyed.
