Checking unlocking of rotary striker lock:
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

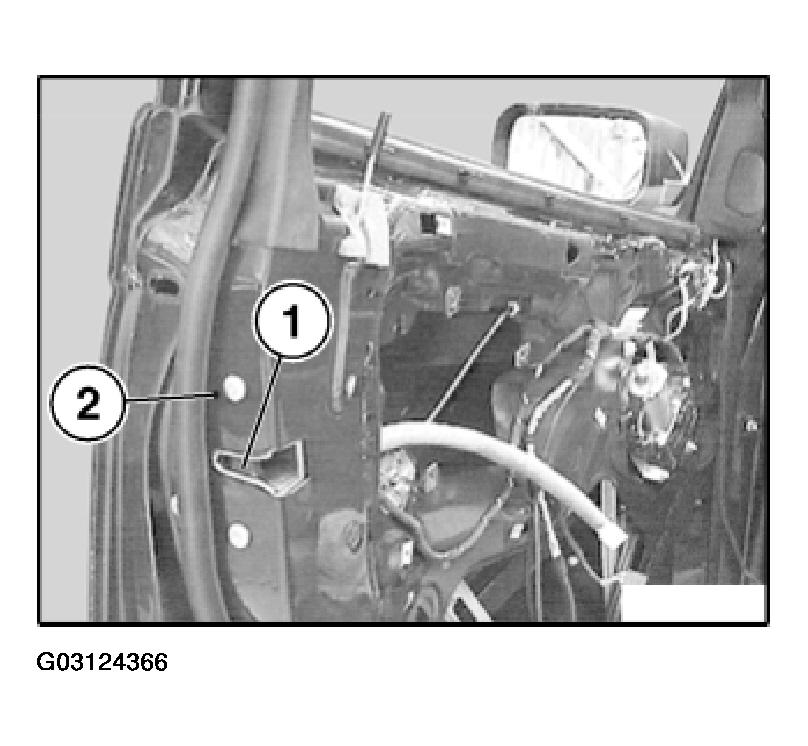

- Close rotary striker lock (1) with a screwdriver,
- lock car with car key,
- unlock car with car key,
- open rotary striker lock (1) with outside door handle,
- if rotary striker lock (1) opens, then OK.
- If rotary striker lock (1) fails to open,
- slacken adjustment screw (2) again,
- Retighten adjusting screw (2),
- carry out check again.
Fit sealing cap.
