Checking overtravel at outside handle:
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

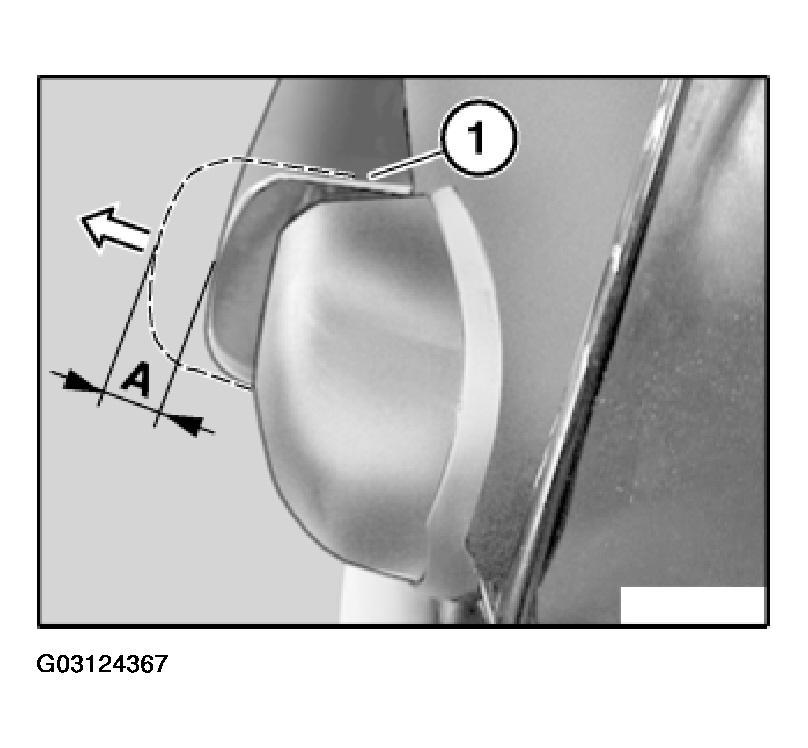

- Close rotary striker lock with a screwdriver,
- open rotary striker lock with outside door handle (1),
- outside door handle (1) must be able to open further by measurement (A),
- if measurement (A) is obtained, then OK.
- if measurement (A) is not obtained, readjust rotary striker lock and carry out overtravel check,
- if measurement (A) is still not obtained, you must Bowden cable with carrier.
A min. 2 mm
