Checking overtravel at outside handle:

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.
  1. At least 2 mm

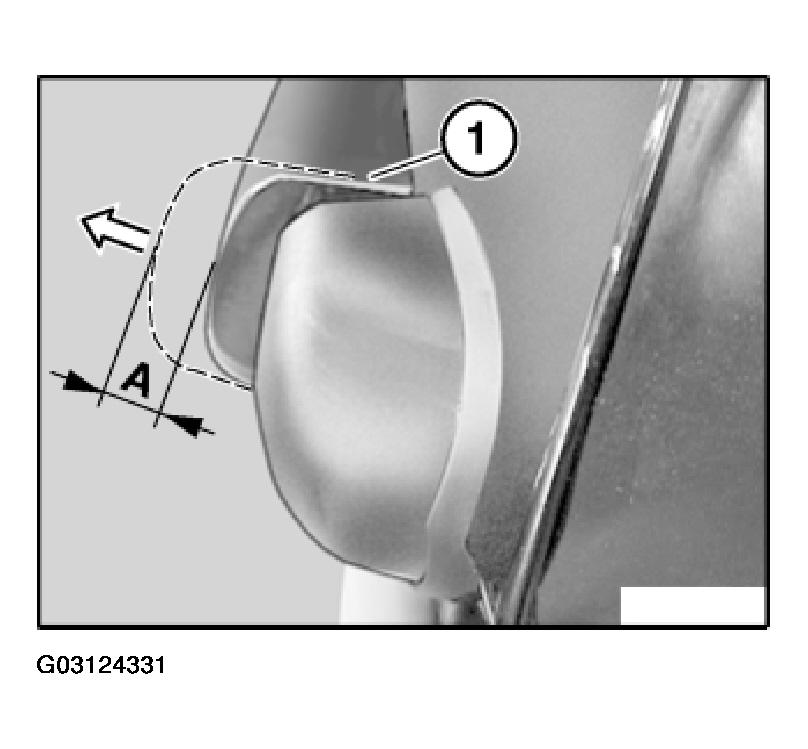

    Fig 1: Checking Overtravel At Outside Handle
    G03124331Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Door striker (lock wedge) must not be greased.
Door lock does not have to be greased until after 100, 000 km.

Only replace:

Lift out lock (1) and detach Bowden cable (2) from fixture (3).

Remove Bowden cable nipple (4) from lever (5).

NOTE: The Bowden cable mount for the inside door handle is the same for all construction versions. The construction version up to 09/2000 is shown here.

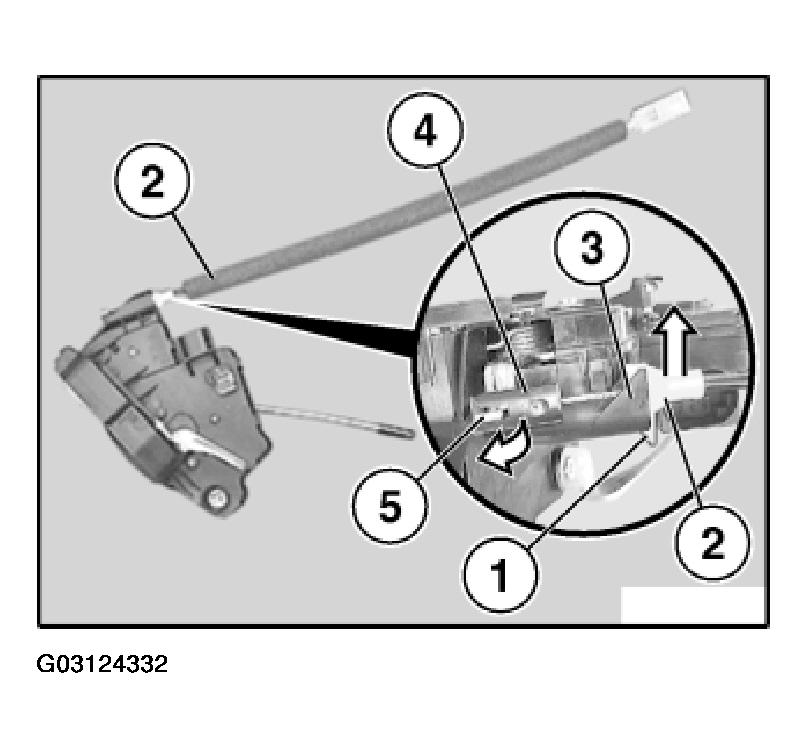

Fig 2: Removing Bowden Cable Nipple From Lever
G03124332Courtesy of BMW OF NORTH AMERICA, INC.

Only replace:

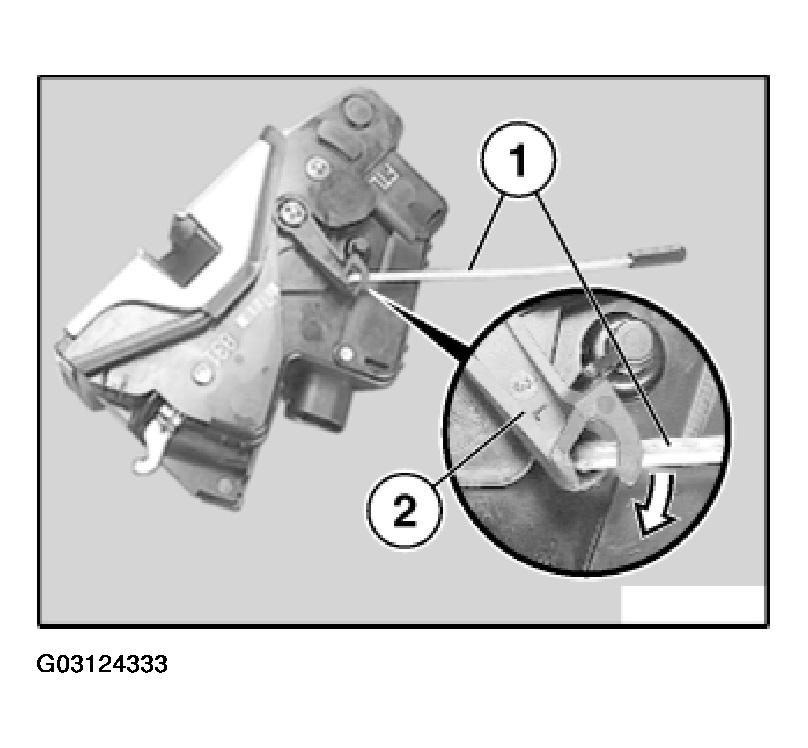

Turn linkage for locking knob (1) and detach from lever (2).

Fig 3: Turning Linkage For Locking Knob
G03124333Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts must not be damaged:

  1. Mount for paddle of lock barrel (driver's side only)
  2. Mount for Bowden cable of outside door handle
  3. Mount for Bowden cable of inside door handle

The illustration shows the left driver's door lock on the Saloon.

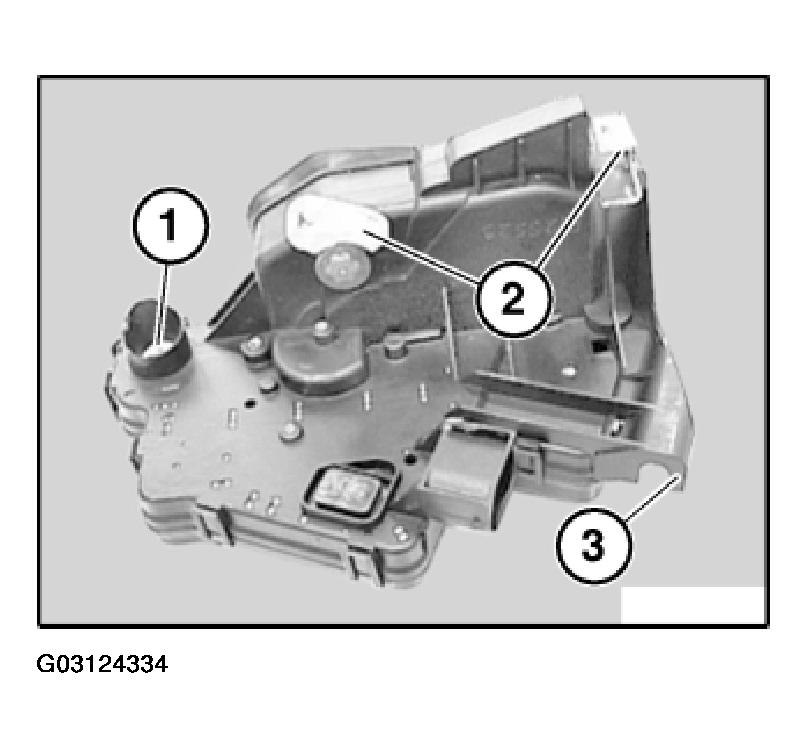

Fig 4: Installing Mount For Paddle Of Lock Barrel
G03124334Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts must not be damaged:

  1. Spring
  2. Mount for Bowden cable of inside door handle
  3. Mount for linkage of locking knob
  4. Mount for paddle of lock barrel (driver's side only)

The illustration shows the left driver's door lock on the Coupe.

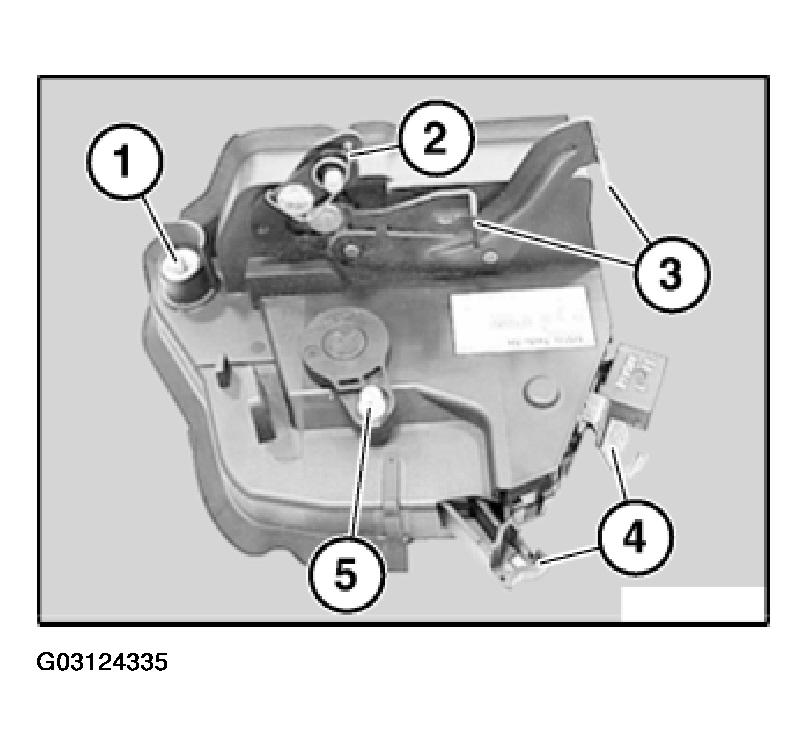

Fig 5: Installing Mount For Bowden Cable Of Inside Door Handle
G03124335Courtesy of BMW OF NORTH AMERICA, INC.
