51 11 701 Replacing bracket for front left or right bumper (saloon/sedan and touring up to 9/01)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front bumper. See 51 11 000 Removing and installing complete front bumper (from 10/01)

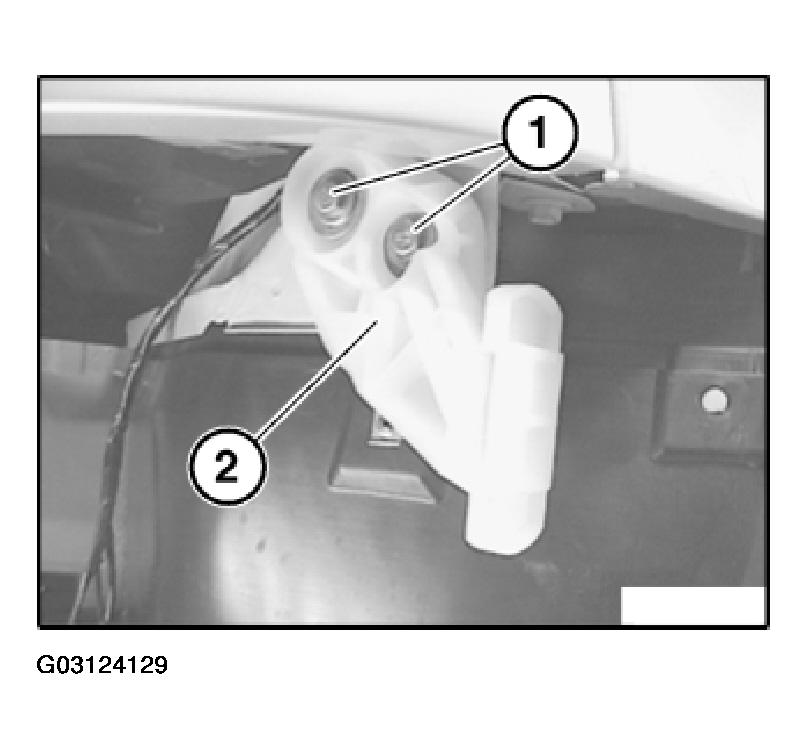

If necessary, mark position of bracket (2) on body. Unfasten screws (1) and remove bracket (2).

Fig 1: Unfastening Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Ideal adjustment:

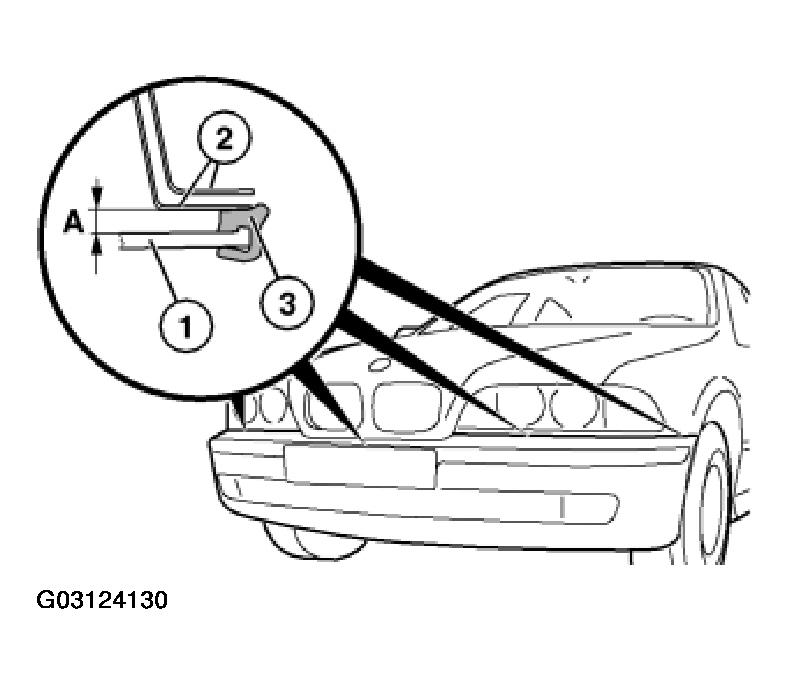

Gap (A) should be uniform along the full length between bumper and aperture in body.

Dimension (A) = 5 + 1 mm

Fig 2: Identifying Gap (A)

Courtesy of BMW OF NORTH AMERICA, INC.
