Necessary preliminary tasks:

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove bumper. See 51 11 000 Removing and installing complete front bumper (from 10/01)

Loosen screws (1).

Pull bracket forwards out of T-guide (2).

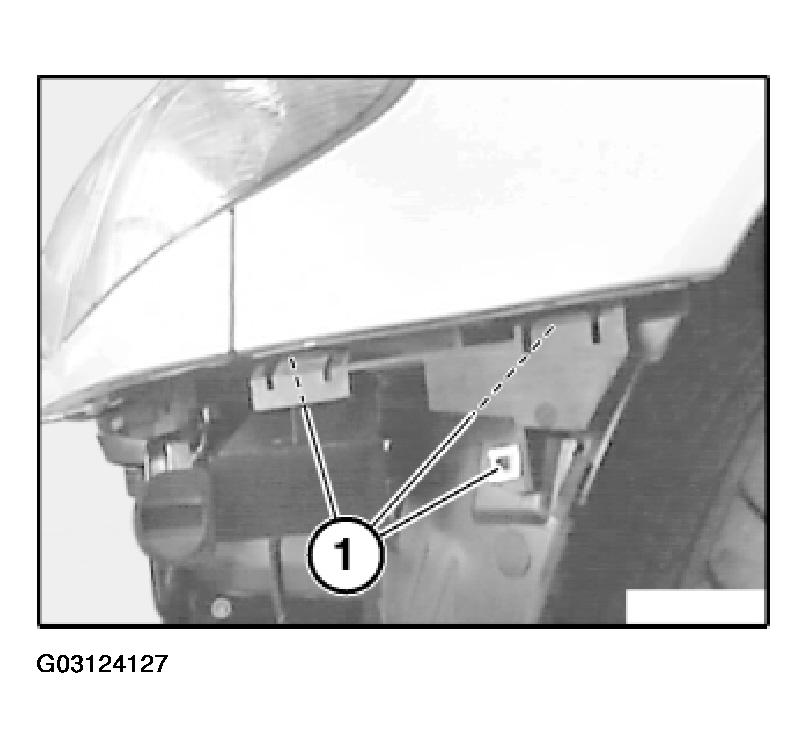

Fig 1: Loosening Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed inner bracket (1) into T-guide (2).

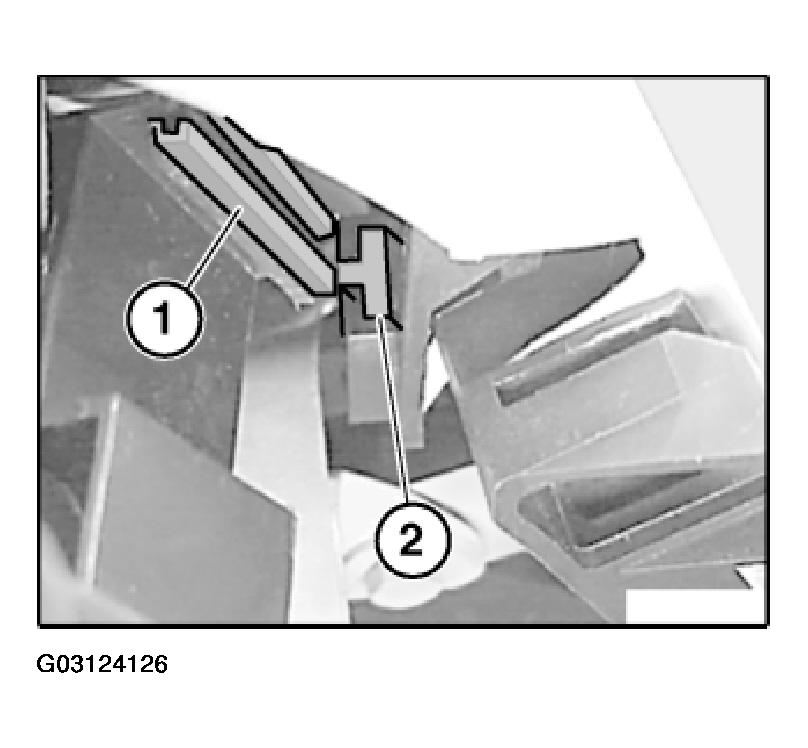

Fig 2: Installing Feed Inner Bracket Into T-Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (1).

Detach bracket to middle from metal fold (gently pull downwards if necessary).

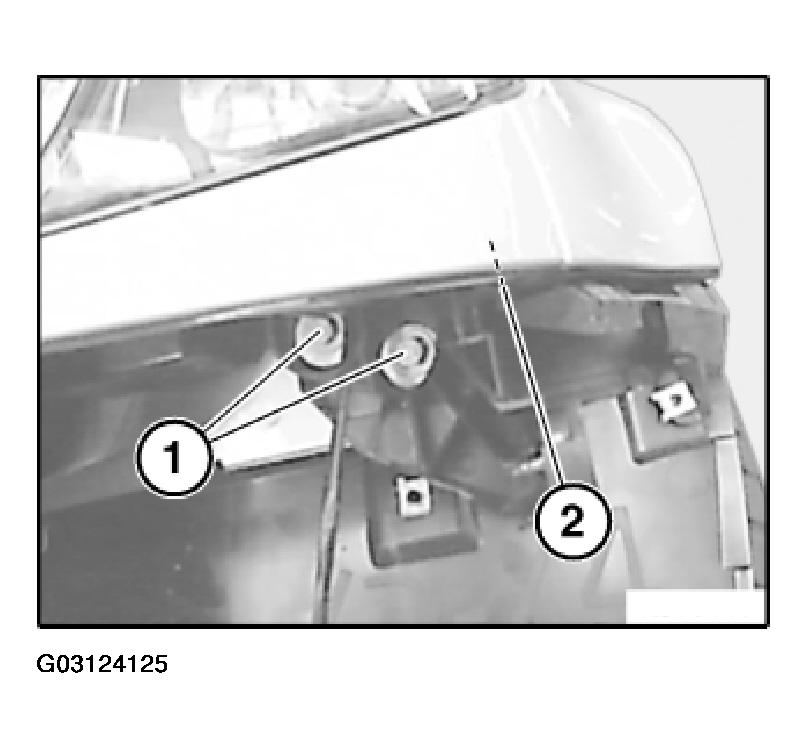

Fig 3: Loosening Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Level for placing on metal fold
Level for subsequent clipping in of bumper

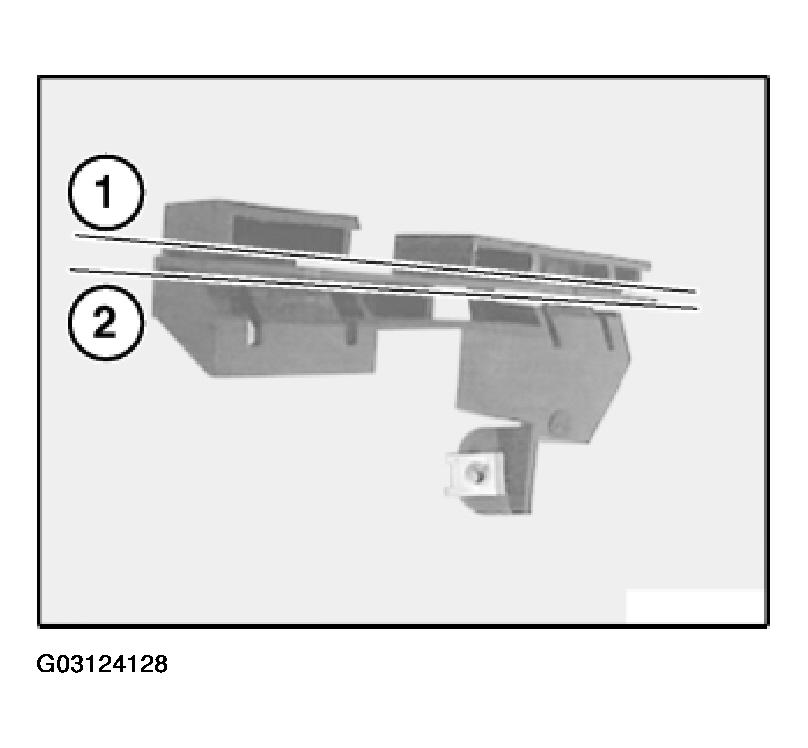

Fig 4: Installing Level For Placing On Metal Fold
Courtesy of BMW OF NORTH AMERICA, INC.
