Necessary preliminary tasks:

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove complete front bumper.51 11 000 Removing and installing complete front bumper (from 10/01)

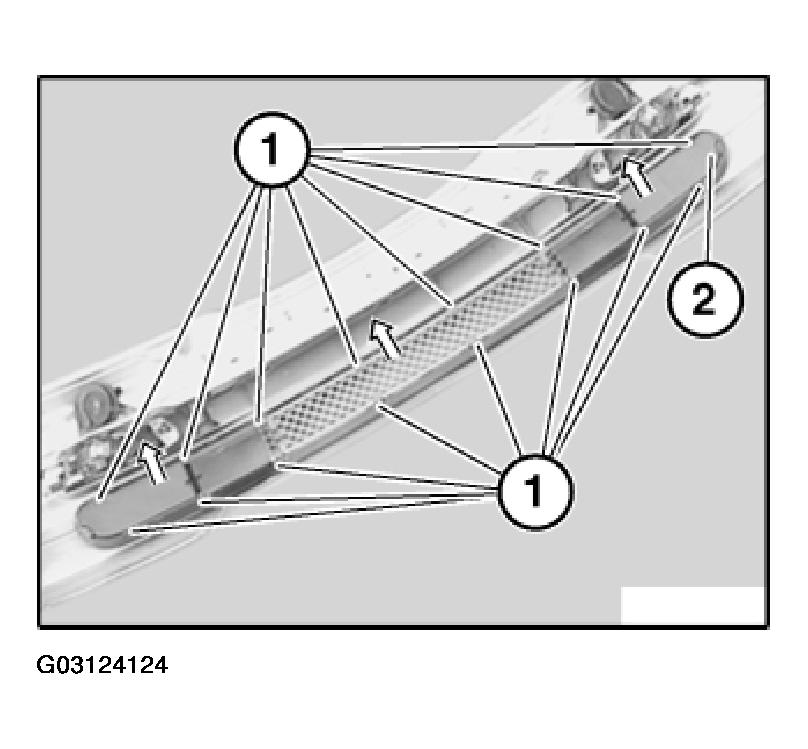

Unhook catches (1) on grill (2) on left/right and press forward a little.

Fig 1: Unhooking Catches On Grill On Left/Right & Pressing Forward Little

Courtesy of BMW OF NORTH AMERICA, INC.

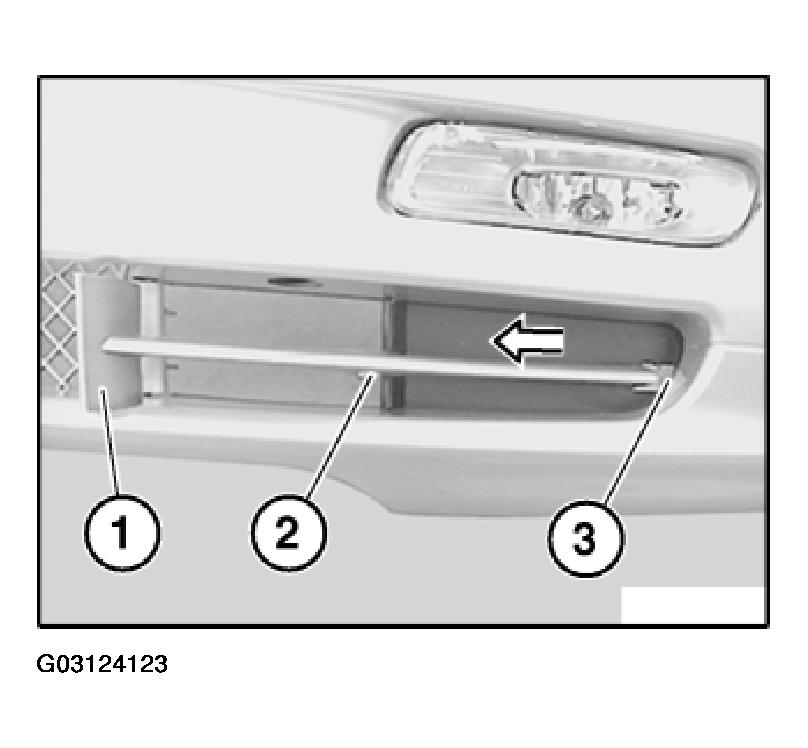

Unhook grill (1) from catch (2) and remove on left/right from bumper (3).

Fig 2: Unhooking Grill From Catch & Removing On Left/Right From Bumper

Courtesy of BMW OF NORTH AMERICA, INC.

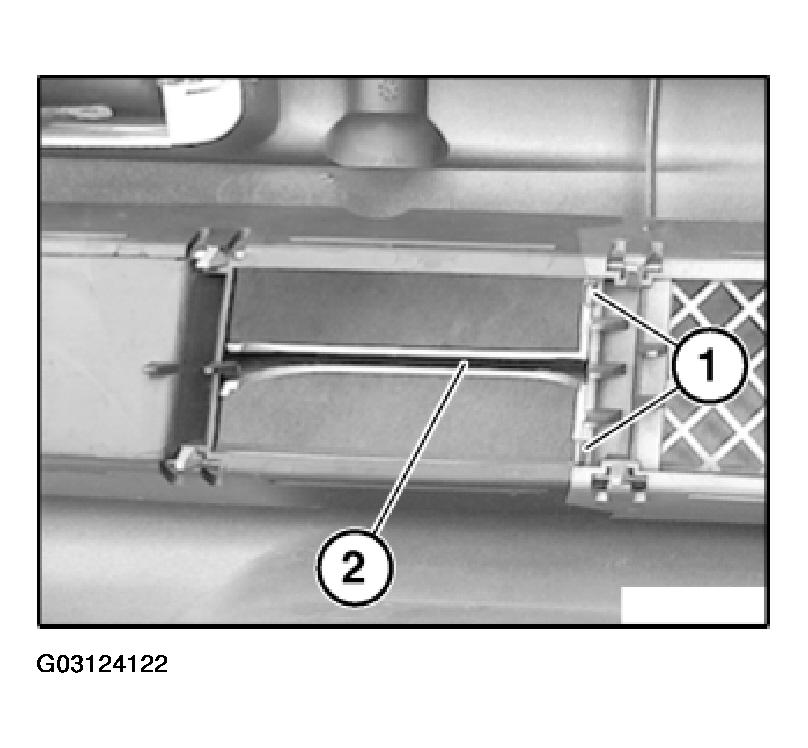

Unhook catches (1) and remove grill (2).

Fig 3: Unhooking Catches & Removing Grill

Courtesy of BMW OF NORTH AMERICA, INC.
