Replacing center section of front bumper (support beam):

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

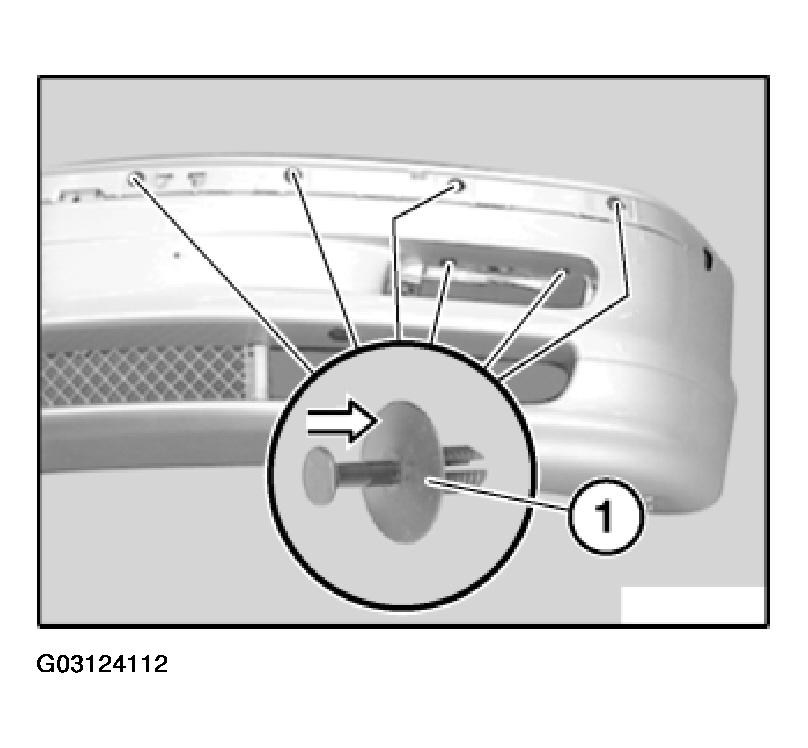

Release left/right expansion rivets (1).

Fig 1: Releasing Left/Right Expansion Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

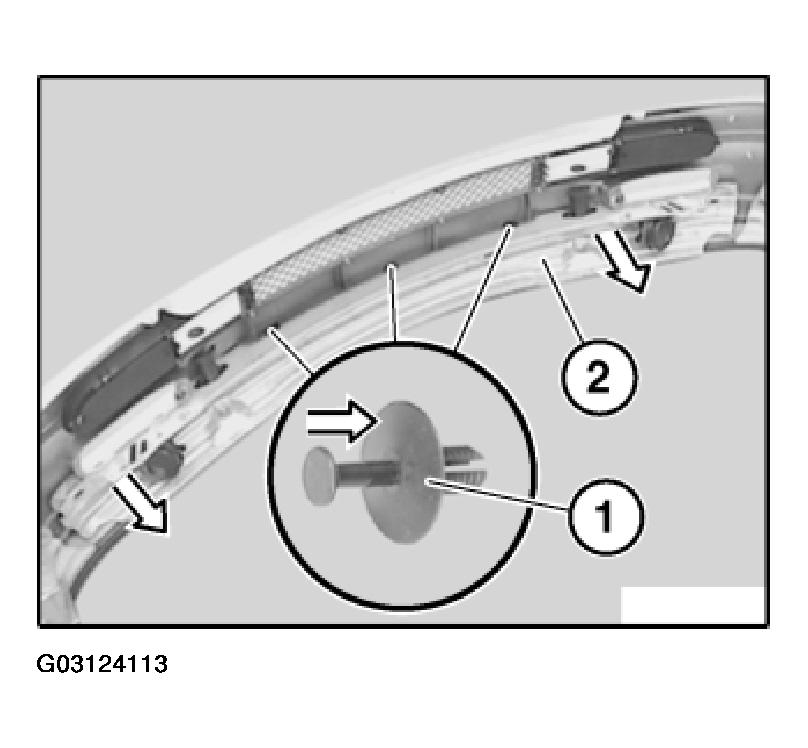

Release expansion rivets (1) and remove bumper support (2) towards rear.

Fig 2: Releasing Expansion Rivets & Removing Bumper Support Towards Rear

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only (bumper center section):

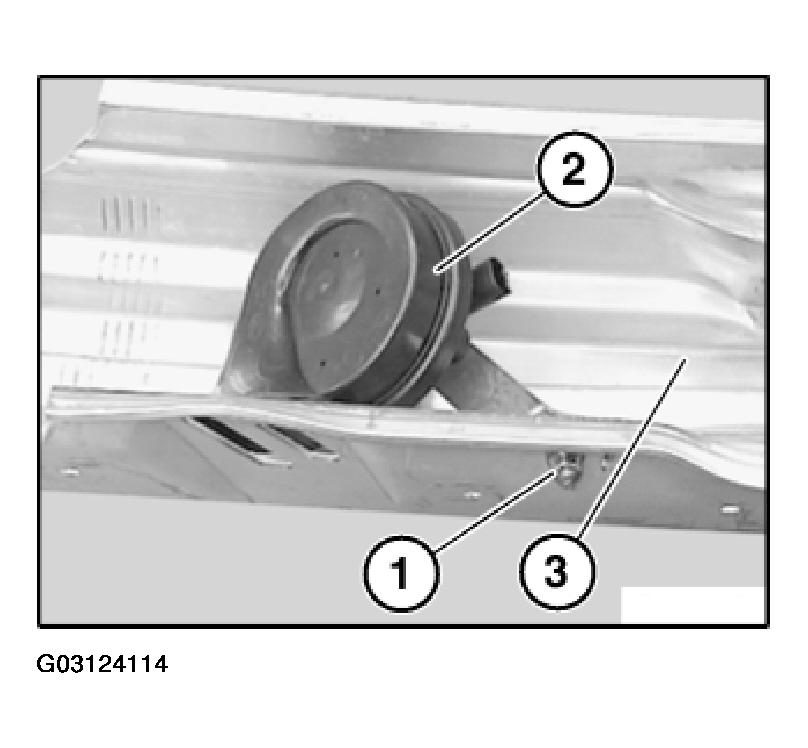

If necessary, release nuts (1) on left/right and remove fanfare (2) from bumper center section (3).

Fig 3: Releasing Nuts On Left/Right & Removing Fanfare From Bumper Center Section

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only (bumper center section):

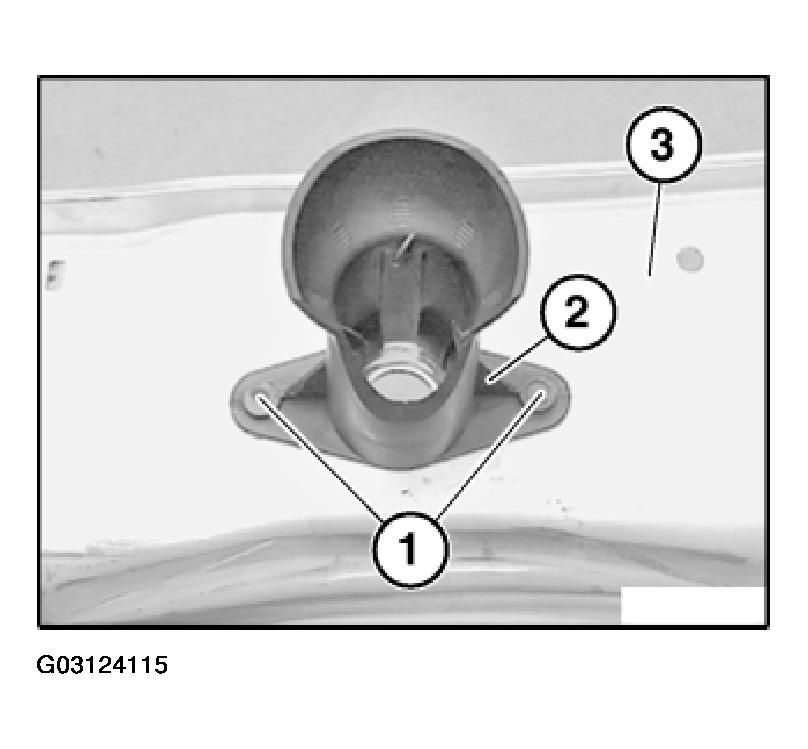

If necessary, release split pins (1) on left/right and remove installation sleeve (2) from bumper center section (3).

Fig 4: Releasing Split Pins On Left/Right & Removing Installation Sleeve From Bumper Center Section

Courtesy of BMW OF NORTH AMERICA, INC.
