51 11 000 Removing and installing complete front bumper (up to 9/01): Installation:

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Tightening Torque. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

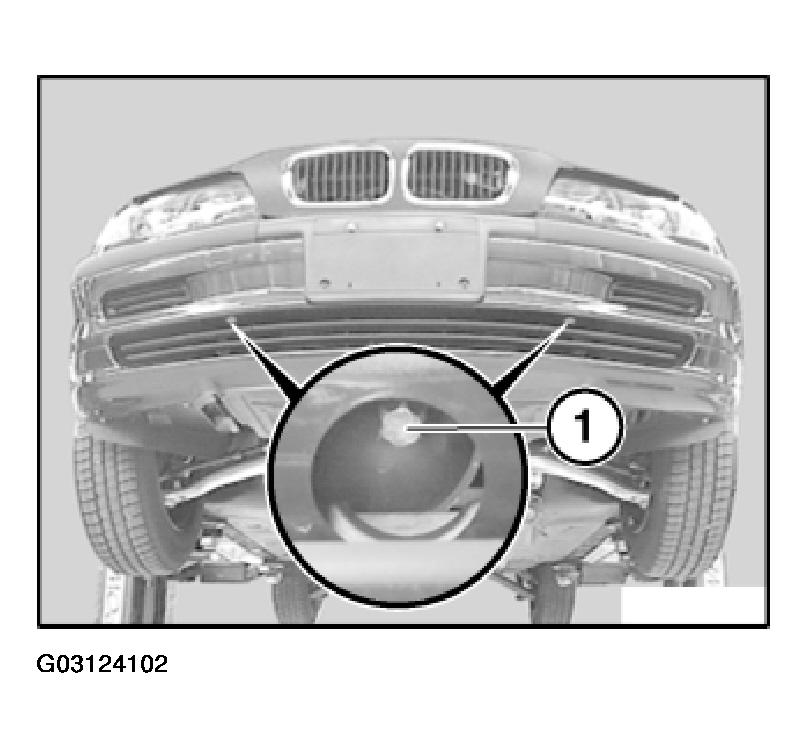

Fig 1: Releasing Screws On Impact Absorber On Left/Right

G03124102

Courtesy of BMW OF NORTH AMERICA, INC.

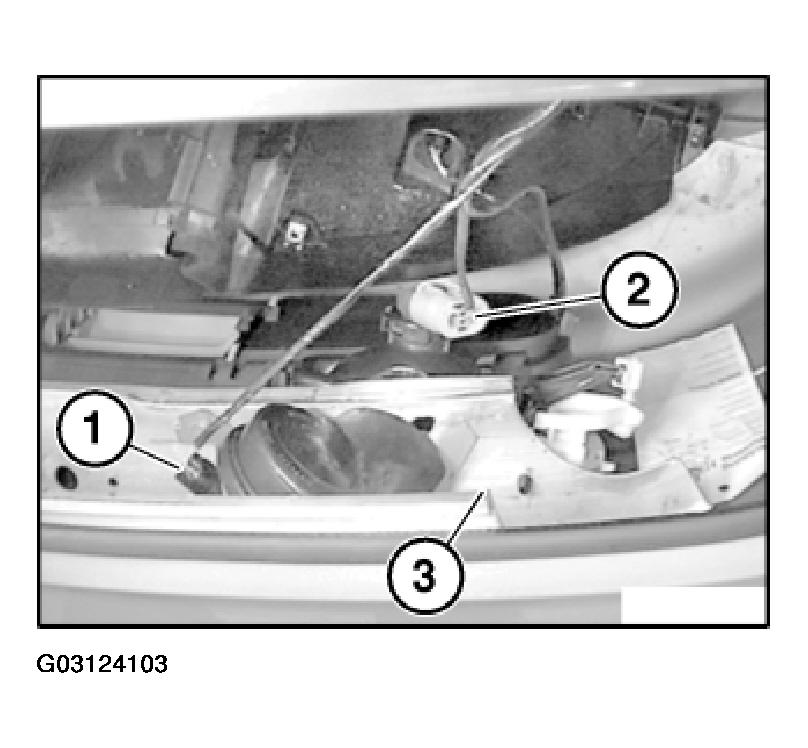

Pull out bumper a little

and disconnect plug connection (1) of air horn on left/right.

Version with fog lamps:

Disconnect plug connection (2) of fog lamps on left/right.

Remove bumper (3).

Fig 2: Disconnecting Plug Connection

G03124103

Courtesy of BMW OF NORTH AMERICA, INC.

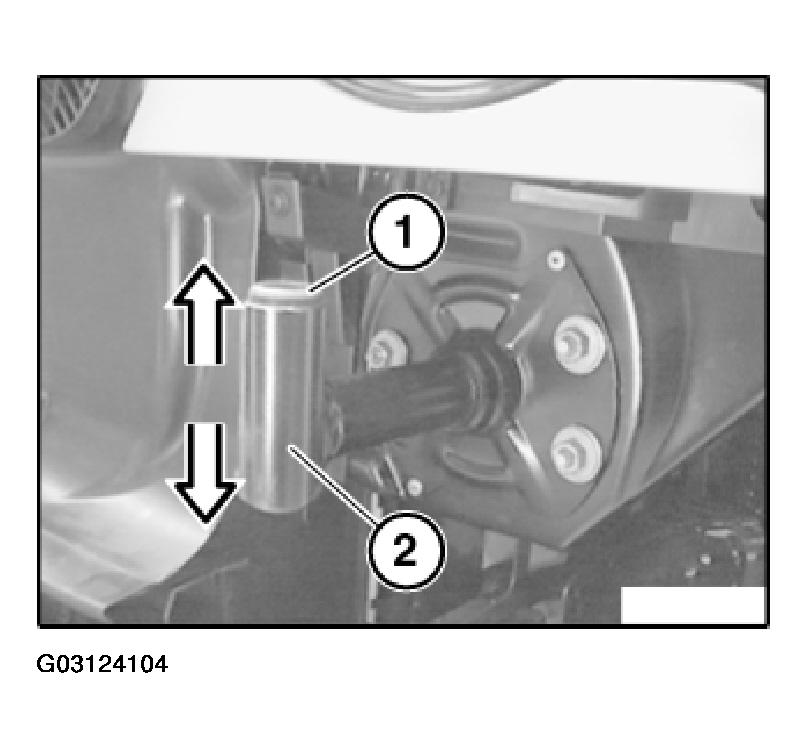

Height of bumper is adjusted by turning hexagon socket head screw (1) on impact absorber (2).

Fig 1: Installing Hexagon Socket Head Screw

G03124104

Courtesy of BMW OF NORTH AMERICA, INC.

Ideal adjustment:

Gap (A) should be uniform along the full length between bumper and aperture in body.

Dimension (A) = 5 + 1 mm

Fig 2: Identifying Gap (A) Full Length Between Bumper & Aperture In Body

G03124105

Courtesy of BMW OF NORTH AMERICA, INC.
