51 47 065 Removing and installing/replacing finishing strip at front left or right entrance

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Carefully lever out finishing strip (1) with special tool 00 9 318 (universal wedge) from clips (2) towards top.

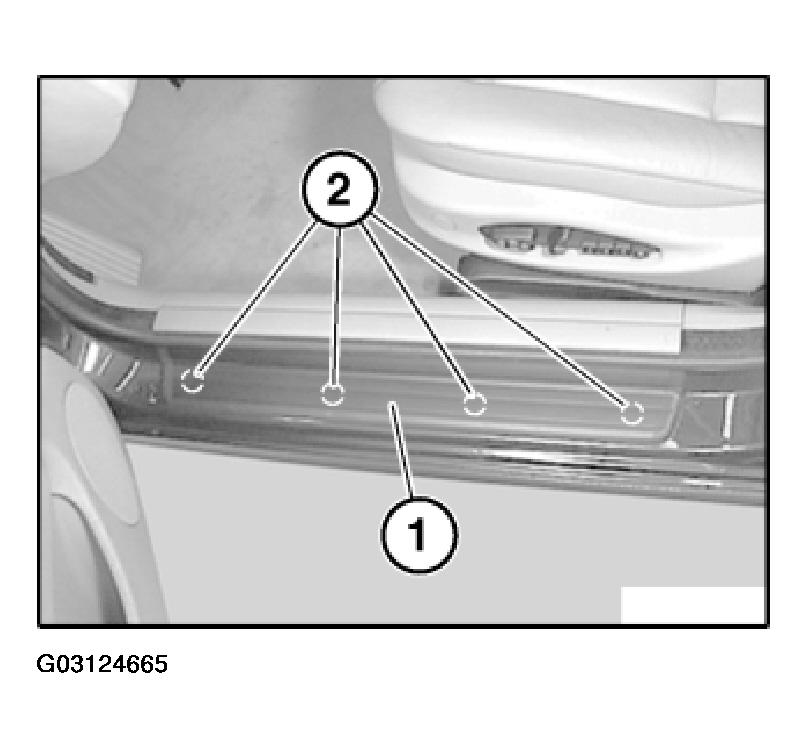

Fig 1: Removing Finishing Strip

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, lever clips out of entrance with pliers (head of pliers surface-ground).

If necessary, replace damaged clips.

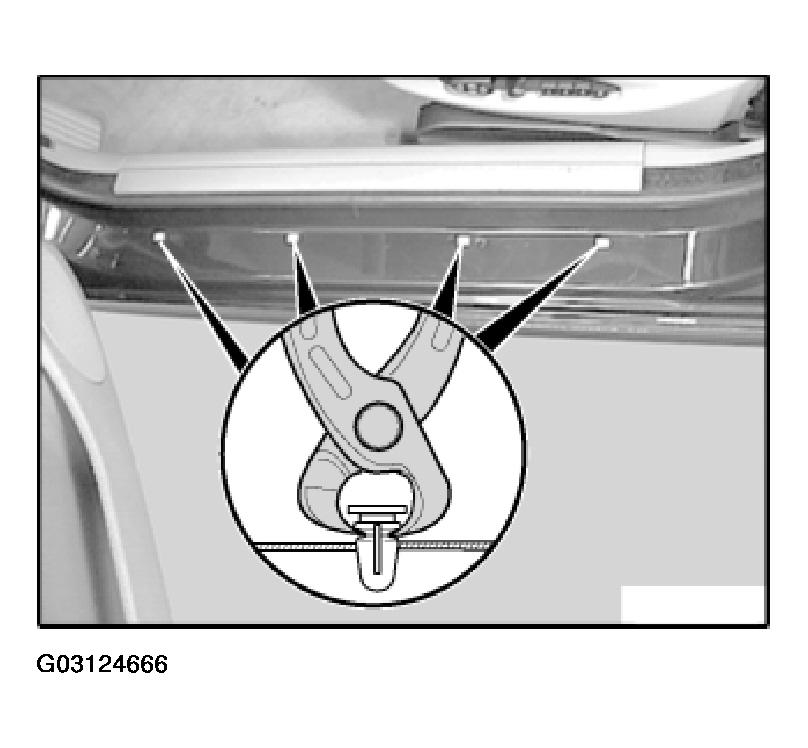

Fig 2: Removing Clips Out Of Entrance With Pliers

Courtesy of BMW OF NORTH AMERICA, INC.

Foam tape (1) must be fitted.

Push clips (2) onto finishing strip (3) and align.

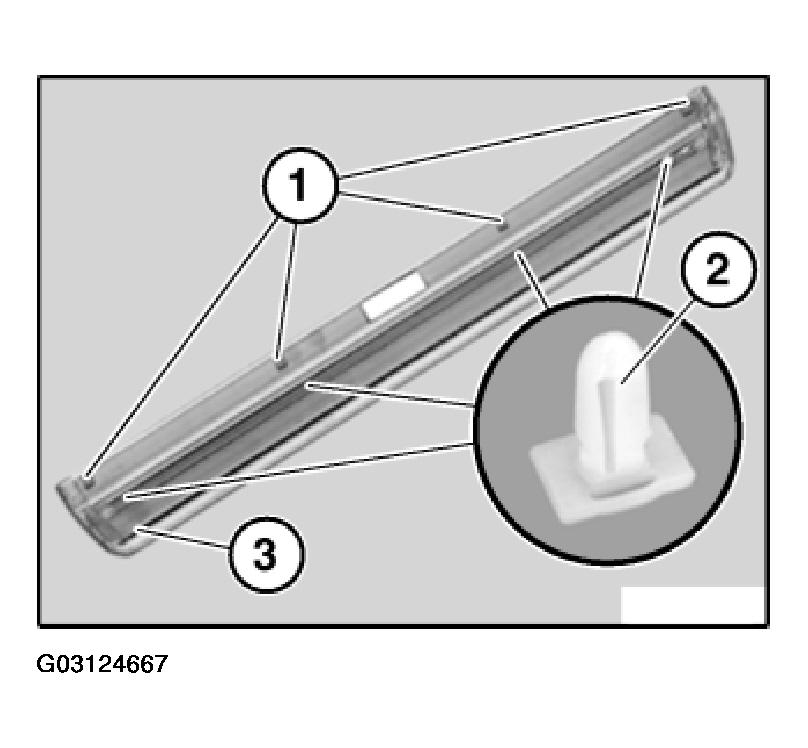

Fig 3: Installing Clips Onto Finishing Strip

Courtesy of BMW OF NORTH AMERICA, INC.
