51 47 030 Removing and installing / replacing the rear (inside) left or right rocker panel strip

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear seat. See 52 24 005 REMOVING AND INSTALLING / REPLACING REAR SEAT (NORMAL)

NOTE: For purposes of clarity, shown here without backrest side section.

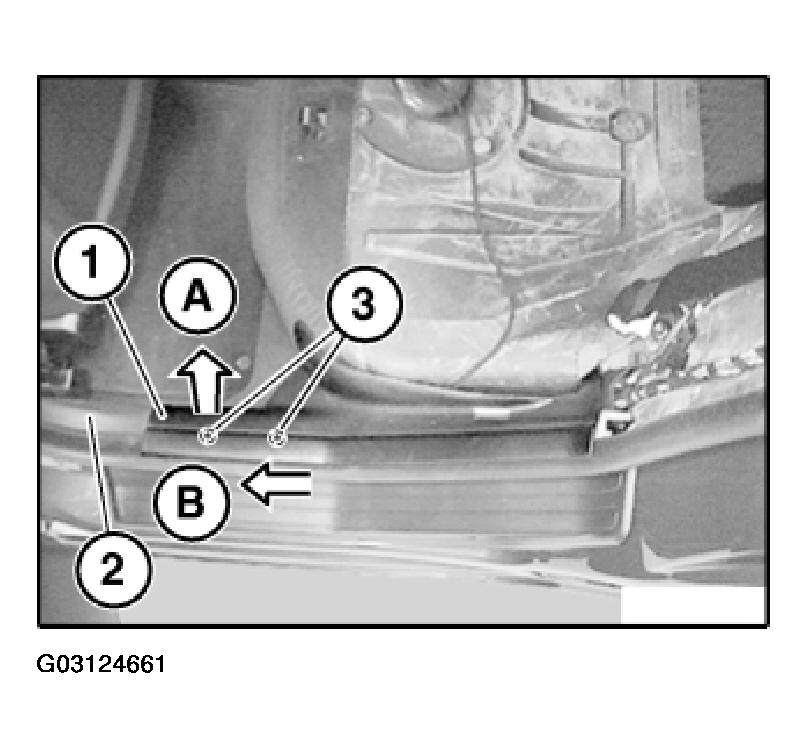

A Lift out entrance cover strip (1) towards inside from trim (2) of door pillar.
B Slide entrance cover strip (1) approx. 20 mm forwards out of clips (3) and remove.

Fig 1: Removing Entrance Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

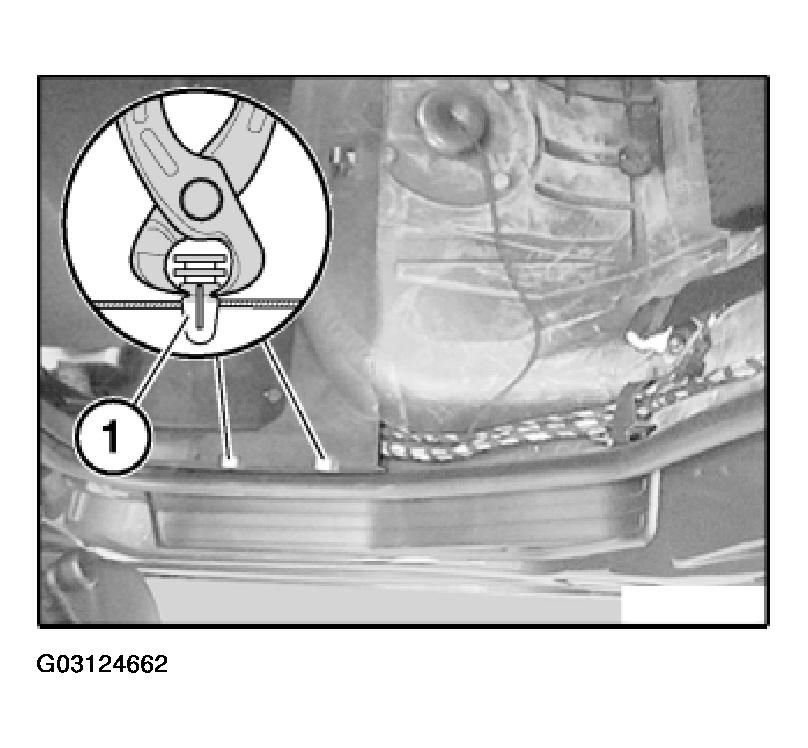

Lever out clips (1) with pliers (head of pliers surface-ground)

Fig 2: Removing Clips With Pliers

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

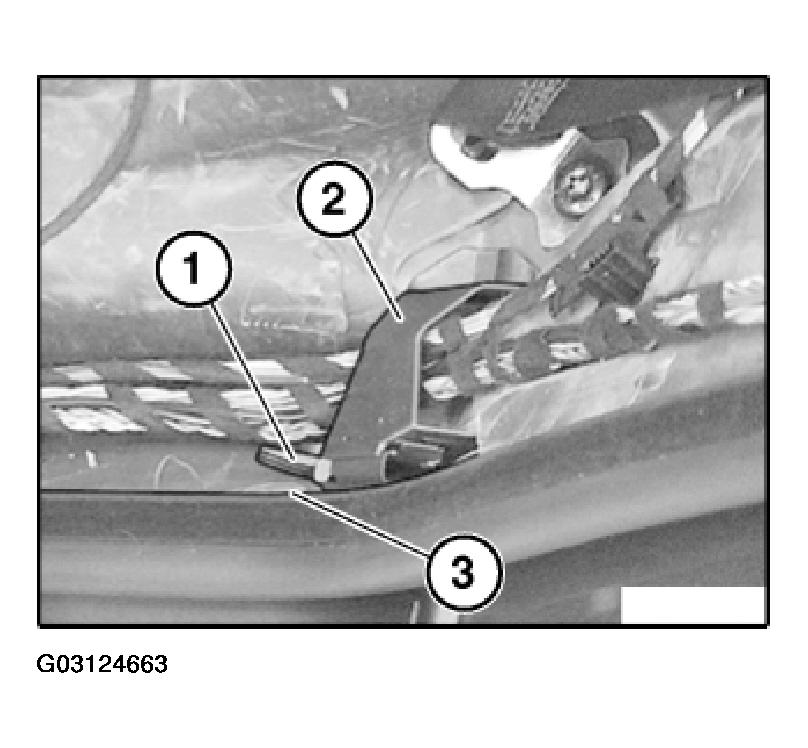

Guide (1) on bracket (2) must not be damaged.
When installing entrance cover strip, insert guide lug between guide (1) and door seam (3).

Fig 3: Identifying Guides On Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

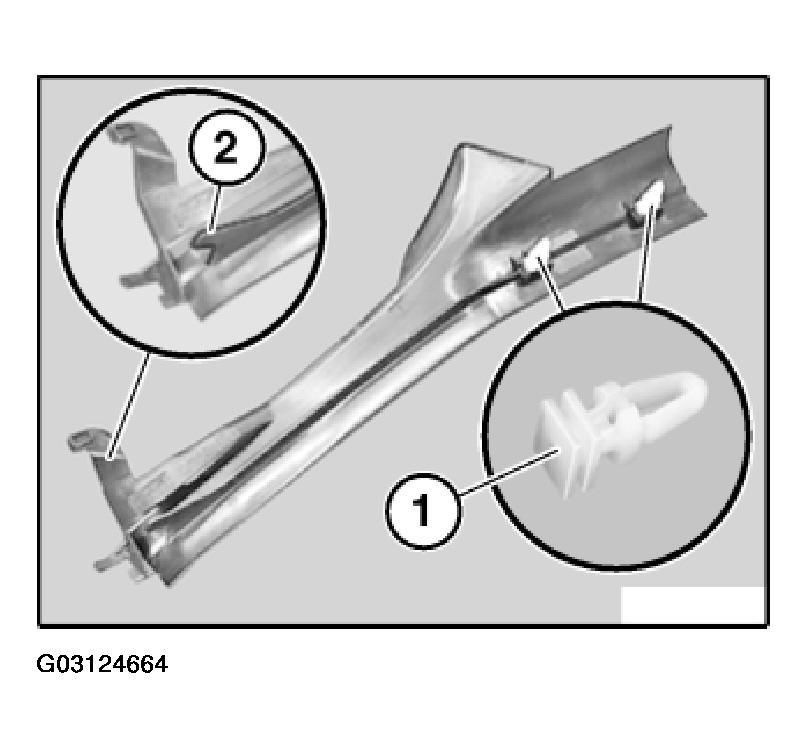

If necessary, replace defective clips (1).
Guide lug (2) of entrance cover strip (3) must not be damaged.

Fig 4: Identifying Clips & Guide Lug Of Entrance Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.
