51 15 360 Removing and installing rubbing strip on rear door on left or right: Installation:

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.
  1. If necessary, replace faulty rubber grommets (1) and clips (2).
  2. Attach clips to body molding in rubber grommet and align.
  3. Prior to installation, coat rubber grommet (1) with soapy solution (washing-up liquid).

Clip rubbing strip into rear door.

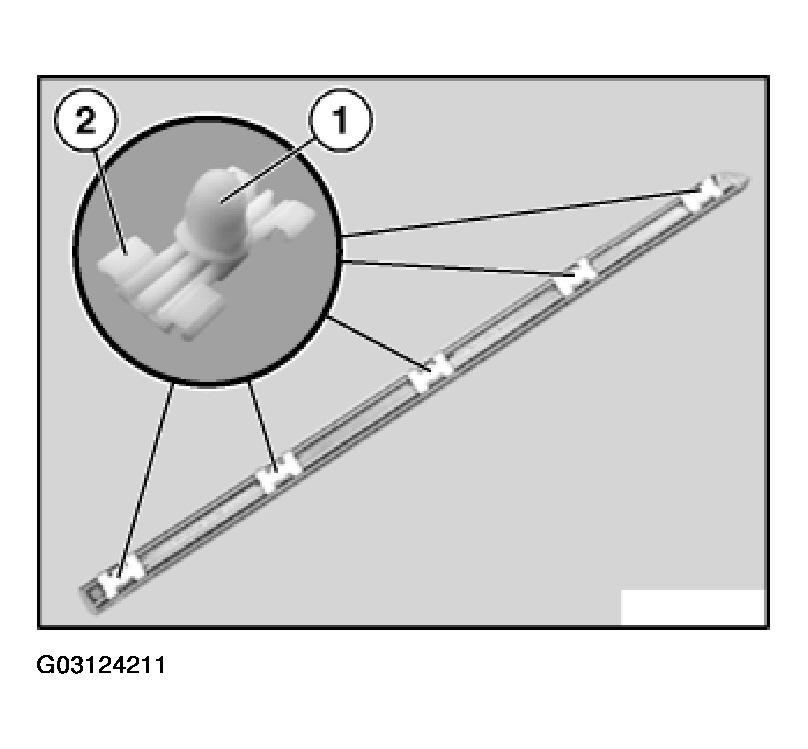

Fig 1: Replacing Rubber Grommets & Clips
G03124211Courtesy of BMW OF NORTH AMERICA, INC.
