Special tools required:

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

00 5 500
11 1 310
11 2 030

Necessary preliminary tasks:

Remove propeller shaft. See 26 11 000 Removing and installing propeller shaft (cardan universal joint) completely

Fill centering bore (1) completely with viscous grease.

Drive special tool 11 1 310 with a plastic hammer into centering bore.

The centering mount (1) is forced out of the propeller shaft by the pressure on the grease filling.

If necessary, top up grease repeatedly.

NOTE: To drive out the mount, you can also fill the centering bore with water instead of grease.

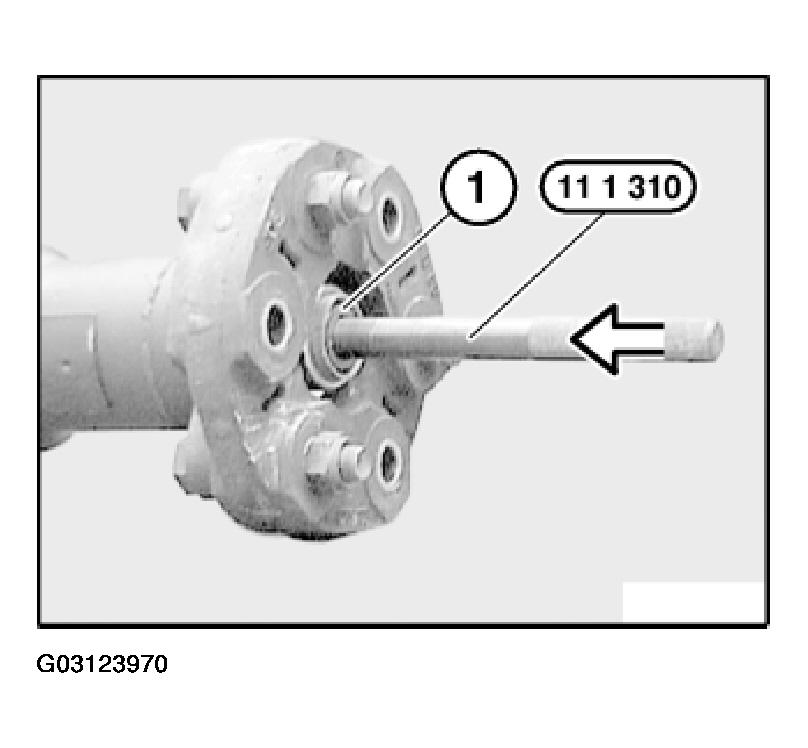

Fig 1: Driving Special Tool 11 1 310 In To Centering Bore

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Remove grease/water from mount bore.

Drive in centering (1) with special tools 11 2 030 and 00 5 500 into propeller shaft (observe protrusion).

Grease centering mount.

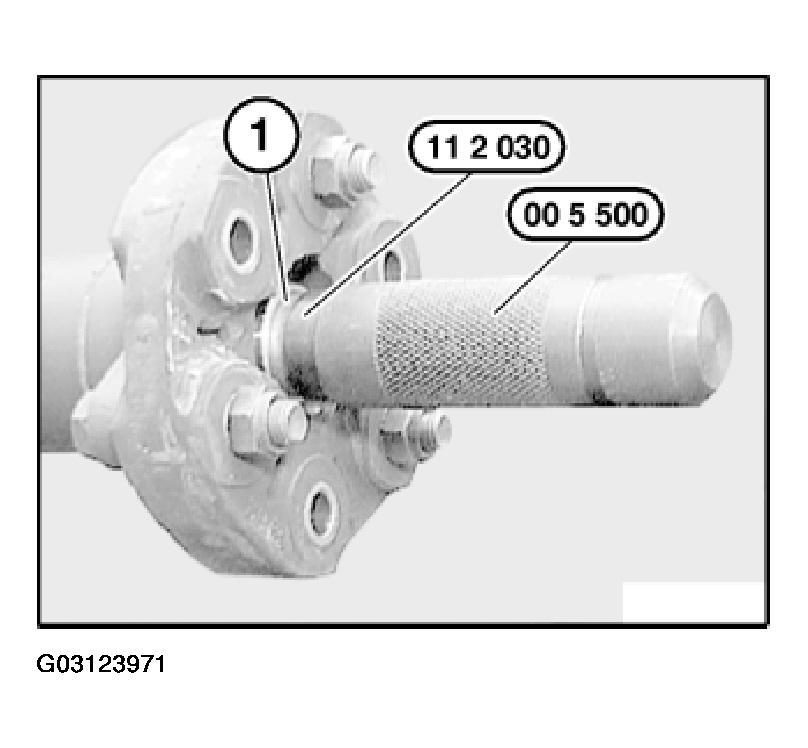

Fig 2: Driving Centering With Special Tools 11 2 030 & 00 5 500 In To Propeller Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Observe protrusion A = 4⁺² mm of centering (1).

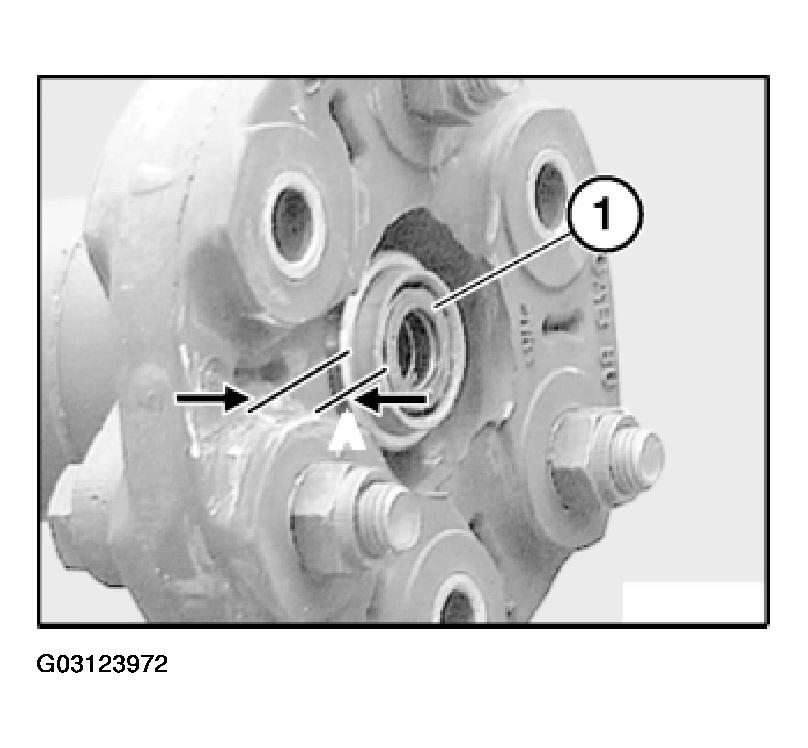

Fig 3: Identifying Observe Protrusion Dimensions
Courtesy of BMW OF NORTH AMERICA, INC.
