26 12 001 Replacing complete propeller shaft center bearing

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove propeller shaft. See 26 12 001 Replacing complete propeller shaft center bearing

NOTE: The propeller shaft is balanced. The front and rear propeller shafts must be reassembled in the same position.

Mark front propeller shaft (1) and rear propeller shaft (2) in one plane.

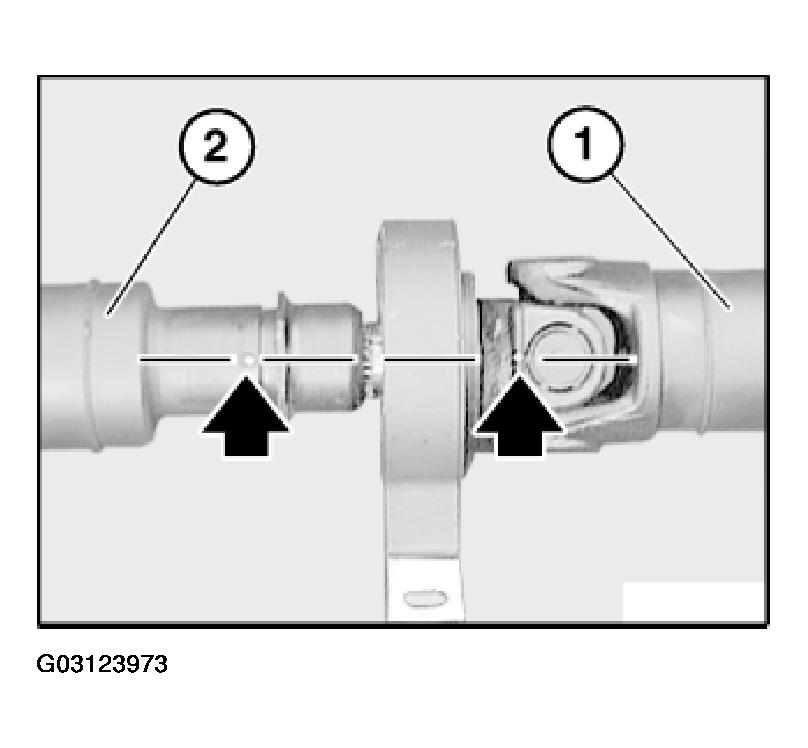

Fig 1: Identifying Front Propeller Shaft & Rear Propeller Shaft Marking In One Plane

G03123973

Courtesy of BMW OF NORTH AMERICA, INC.

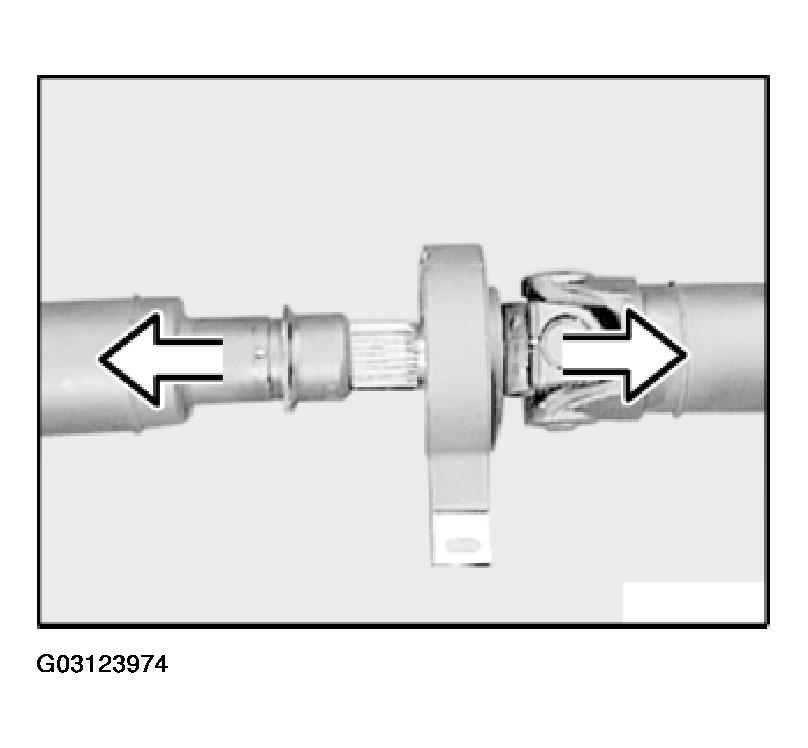

Pull propeller shaft apart.

Fig 2: Pulling Propeller Shaft Apart

G03123974

Courtesy of BMW OF NORTH AMERICA, INC.

Remove snap ring (1).

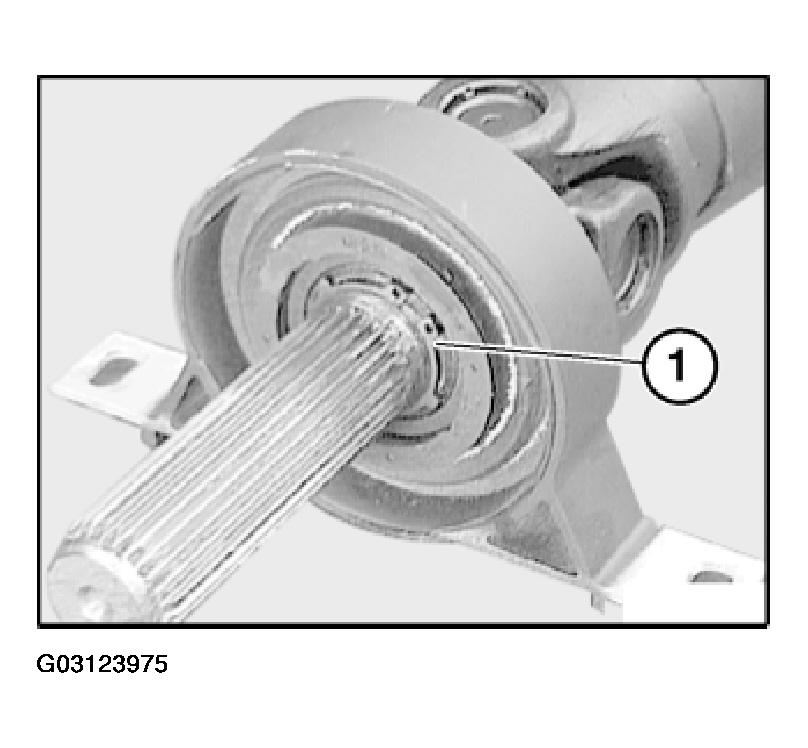

Fig 3: Identifying Snap Ring

G03123975

Courtesy of BMW OF NORTH AMERICA, INC.

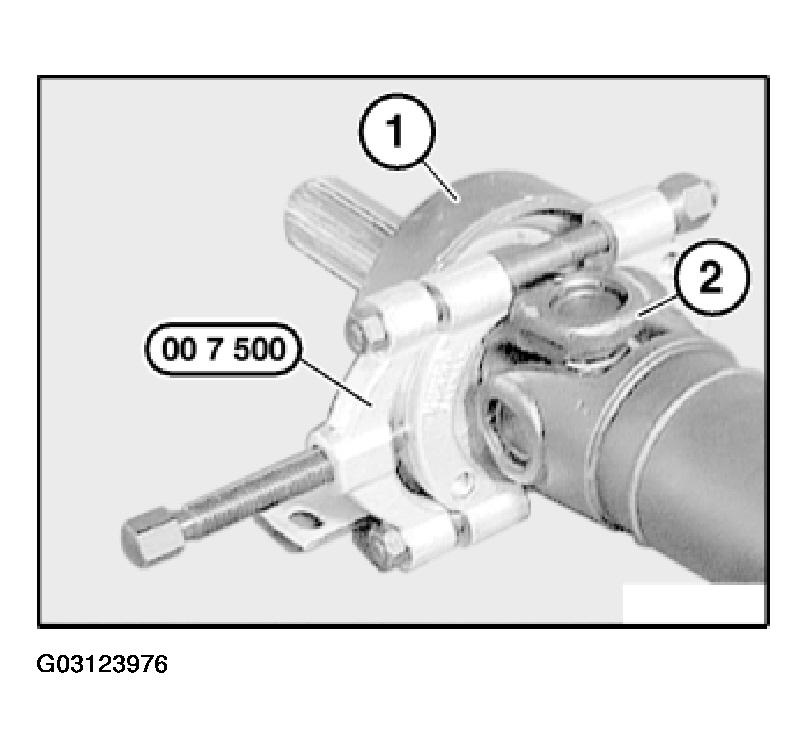

Install special tool 00 7 500 between center bearing (1) and universal joint (2).

Fig 4: Installing Special Tool 00 7 500 Between Center Bearing & Universal Joint

G03123976

Courtesy of BMW OF NORTH AMERICA, INC.

Using a hydraulic press, force center bearing (1) off propeller shaft (2).

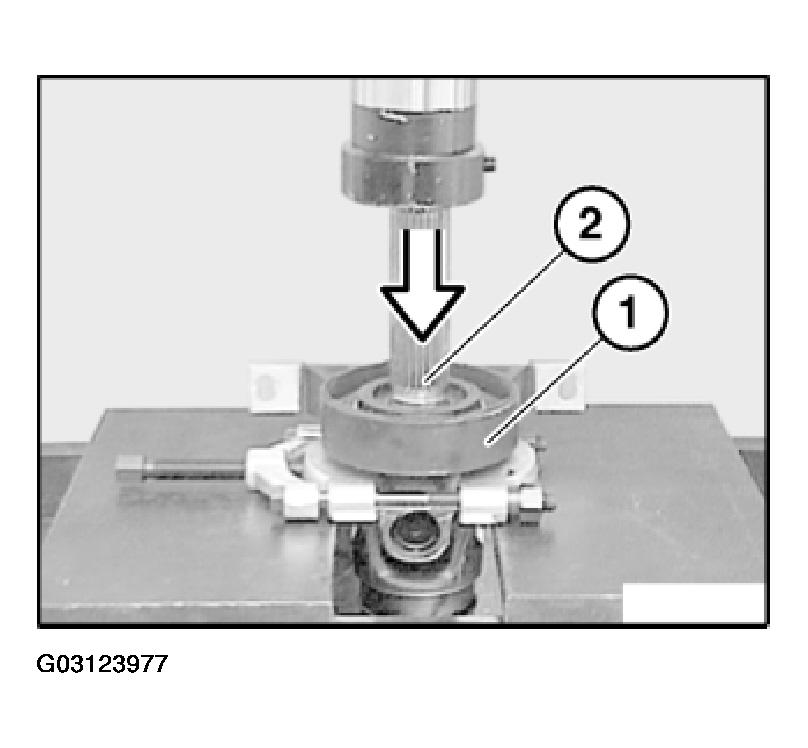

Fig 5: Forcing Center Bearing Off Propeller Shaft Using Hydraulic Press

G03123977

Courtesy of BMW OF NORTH AMERICA, INC.

Force new center bearing (1) onto propeller shaft. Collar (2) must point to universal joint (3). Drive center mount firmly home with special tool 23 1 160.

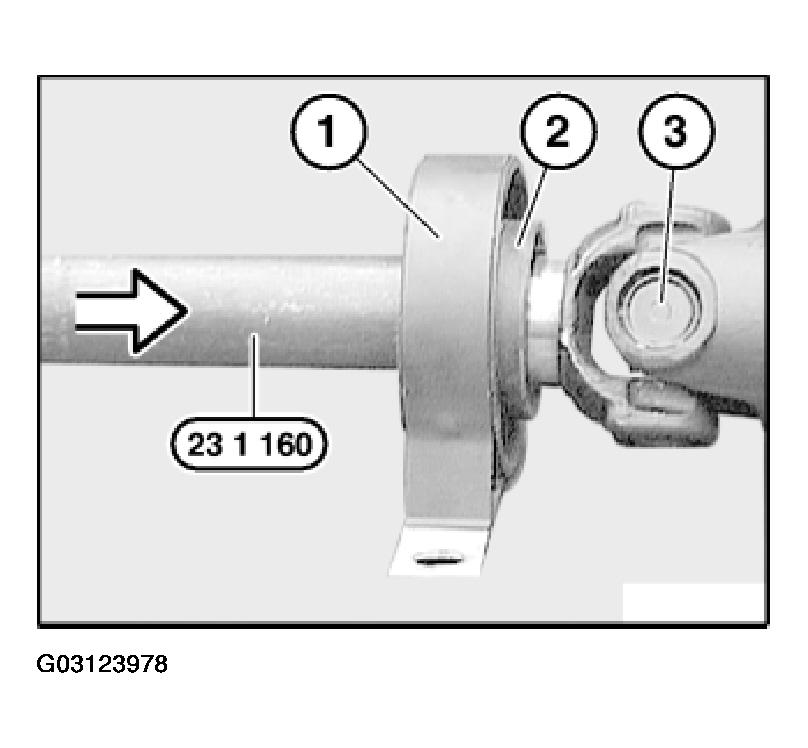

Fig 6: Driving Center Mount Using Special Tool 23 1 160

G03123978

Courtesy of BMW OF NORTH AMERICA, INC.

Install new snap ring (1), with plate to bearing.

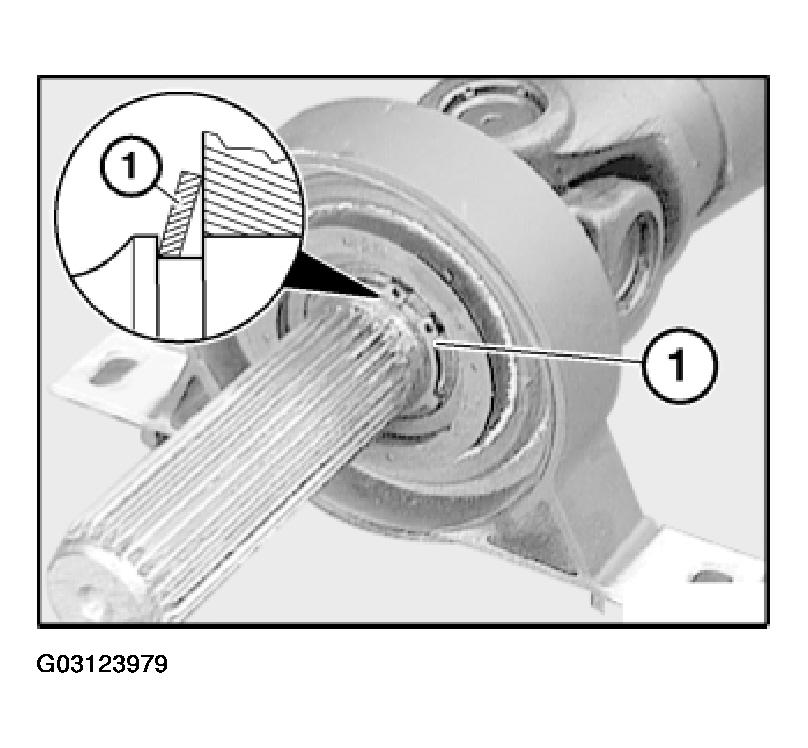

Fig 7: Installing Snap Ring With Plate To Bearing

G03123979

Courtesy of BMW OF NORTH AMERICA, INC.

Screw threaded ring (1) off propeller shaft; if necessary, use special tool 26 1 040 to provide assistance.

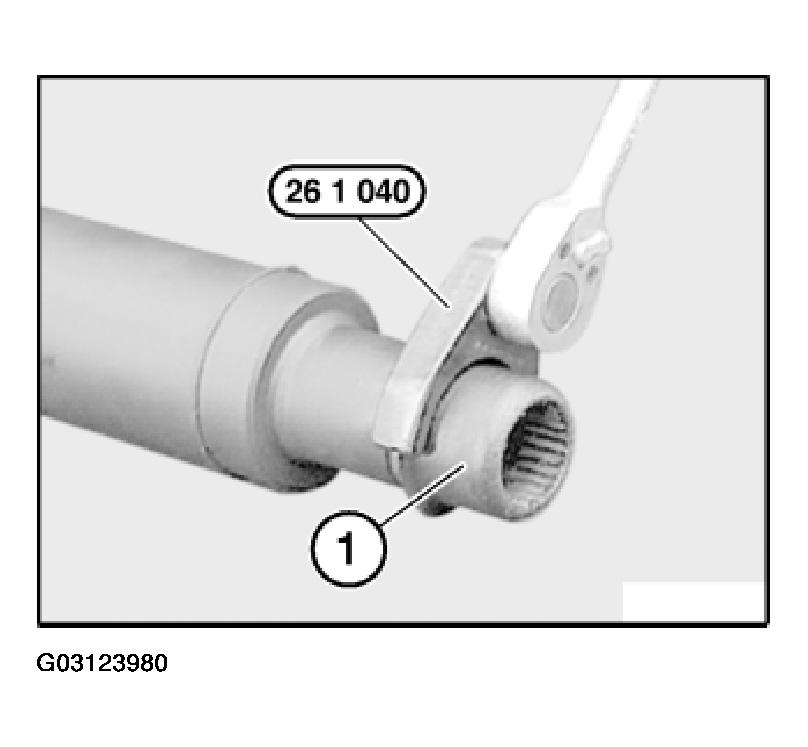

Fig 8: Screwing Threaded Ring Off Propeller Shaft Using Special Tool 26 1 040

G03123980

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, insert new clamping ring (1) in threaded ring (2).

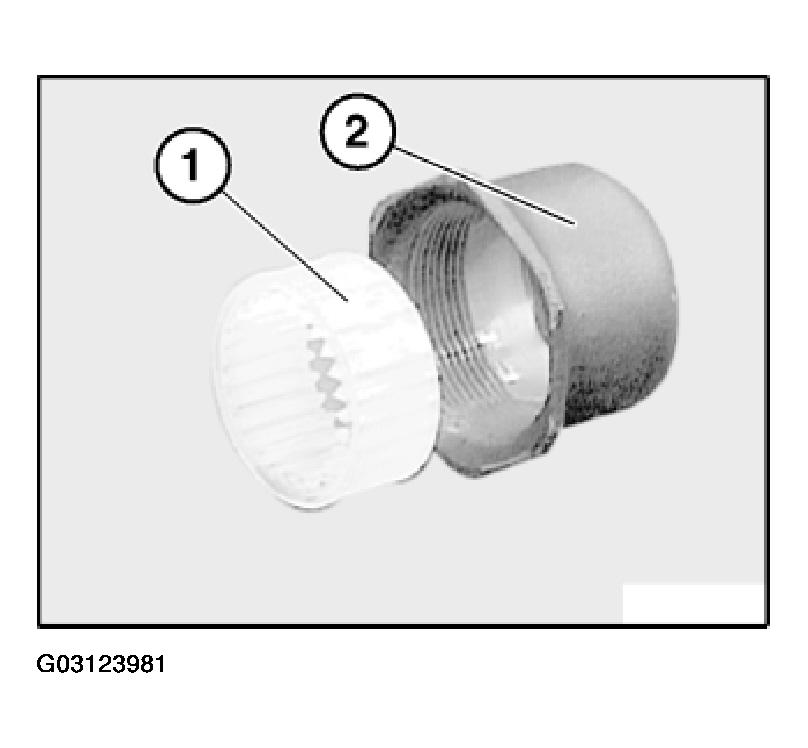

Fig 9: Inserting Clamping Ring In Threaded Ring

G03123981

Courtesy of BMW OF NORTH AMERICA, INC.

Force threaded ring (1) onto shaft (2).

Grease longitudinal splines of shaft (2) uniformly.

Observe markings and force rear propeller shaft (3) onto shaft (2) (markings must be flush).

Screw down threaded ring (1) with propeller shaft (3) until hand-tight.

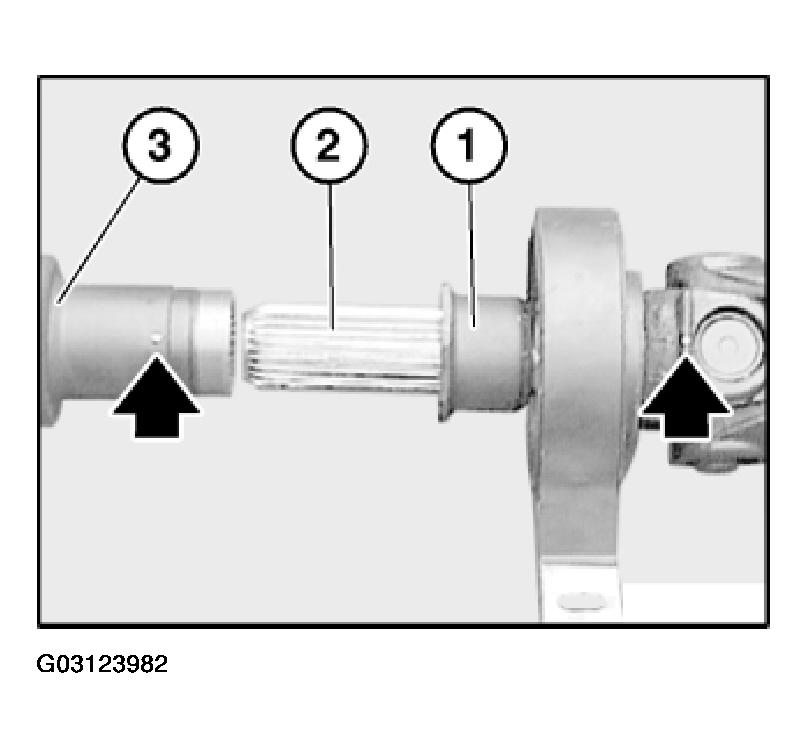

Fig 10: Identifying Marking On Propeller Shaft

G03123982

Courtesy of BMW OF NORTH AMERICA, INC.
