17 11 031 Replacing fan cowl M52TU / M54 automatic with A/C system

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, 2004 BMW 330xi, and 2004 BMW 330i. However, it is still accessible from the selected car via links, so may be relevant.

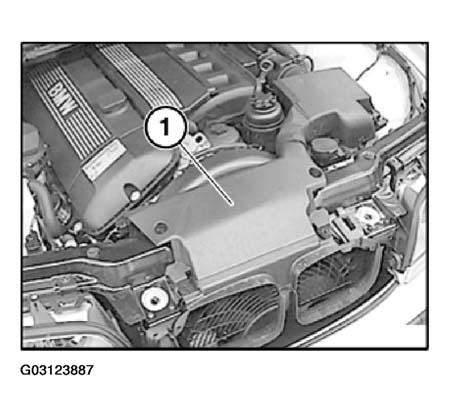

Lever out expansion rivets and remove intake hood (1).

Fig 1: Removing Intake Hood

G03123887

Courtesy of BMW OF NORTH AMERICA, INC.

Remove fan impeller with fan clutch from water pump. See 11 52 020 REMOVING AND INSTALLING/REPLACING FAN CLUTCH (S52 / S54 / M52 / M52TU / M54 / M56)

M52TU only:

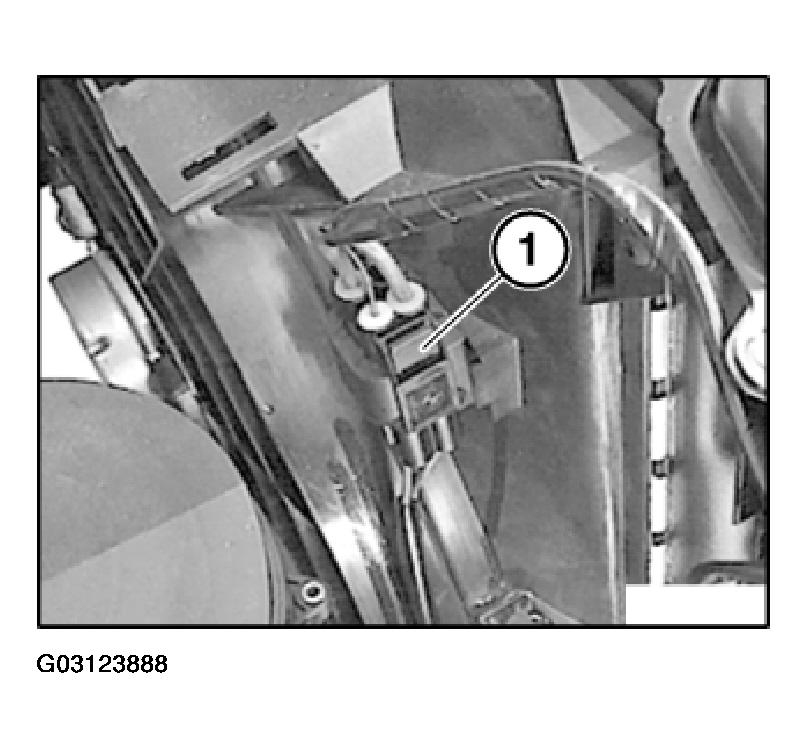

Unfasten plug connection (1) and disconnect.

Fig 2: Removing Fan Impeller With Fan Clutch From Water Pump

G03123888

Courtesy of BMW OF NORTH AMERICA, INC.

M54 only:

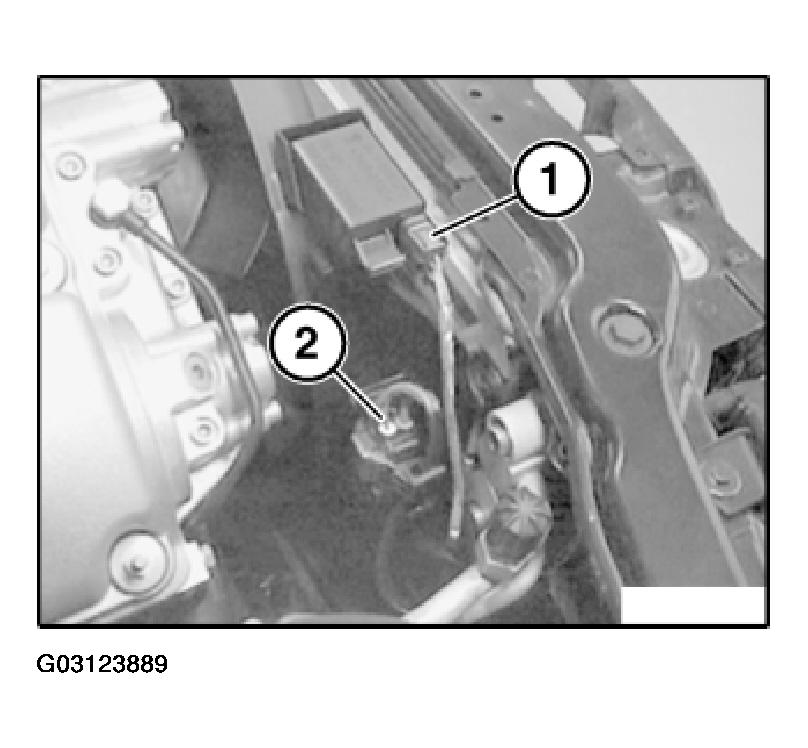

Detach plug (1) from AUC sensor.

Unfasten plug connection (2) and disconnect.

Fig 3: Detaching Plug From AUC Sensor

G03123889

Courtesy of BMW OF NORTH AMERICA, INC.

M52TU and M54:

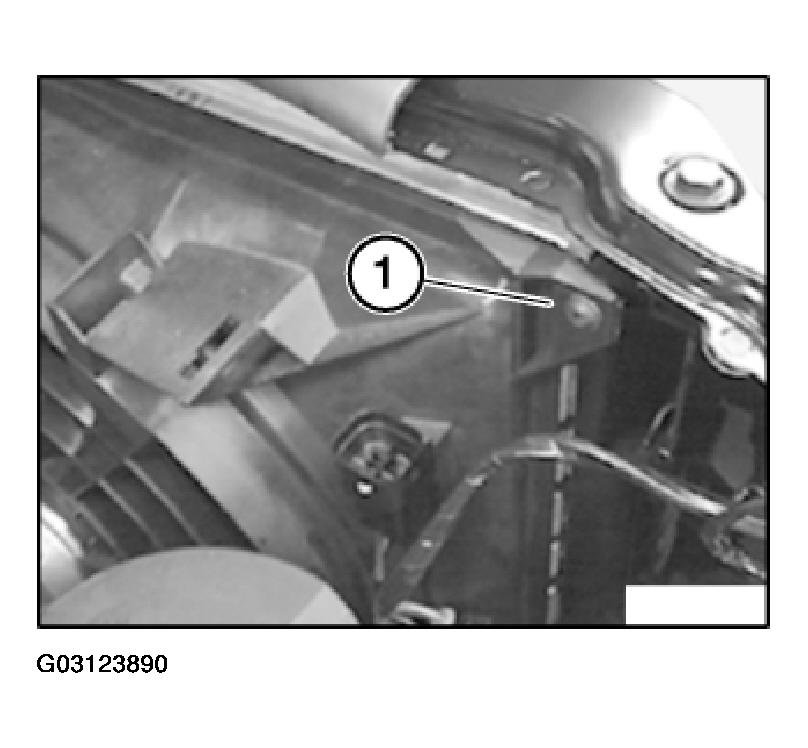

Release screw (1).

Fig 4: Releasing Screw

G03123890

Courtesy of BMW OF NORTH AMERICA, INC.

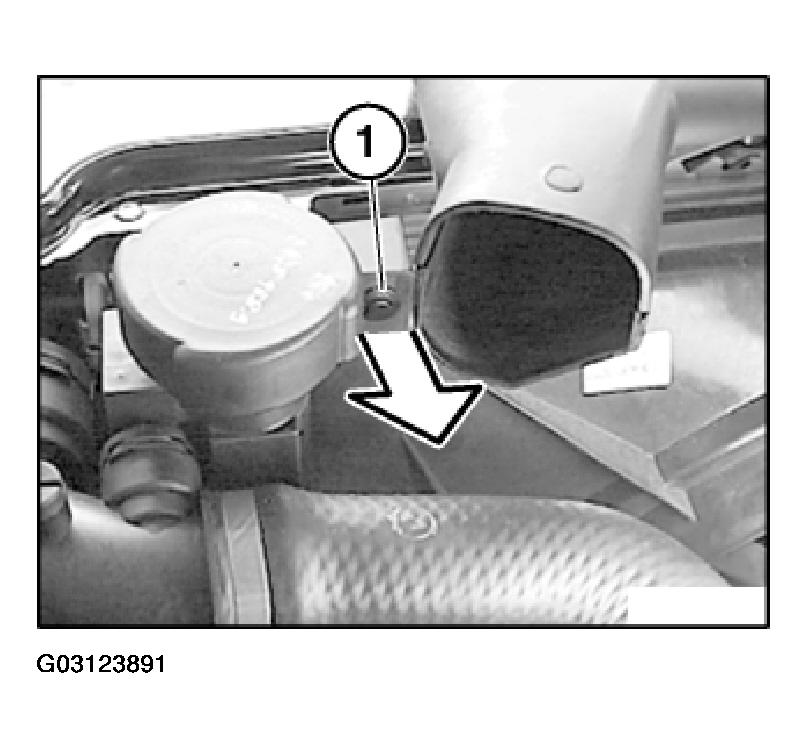

Lever out expansion rivet (1).

Fig 5: Levering Out Expansion Rivet

G03123891

Courtesy of BMW OF NORTH AMERICA, INC.

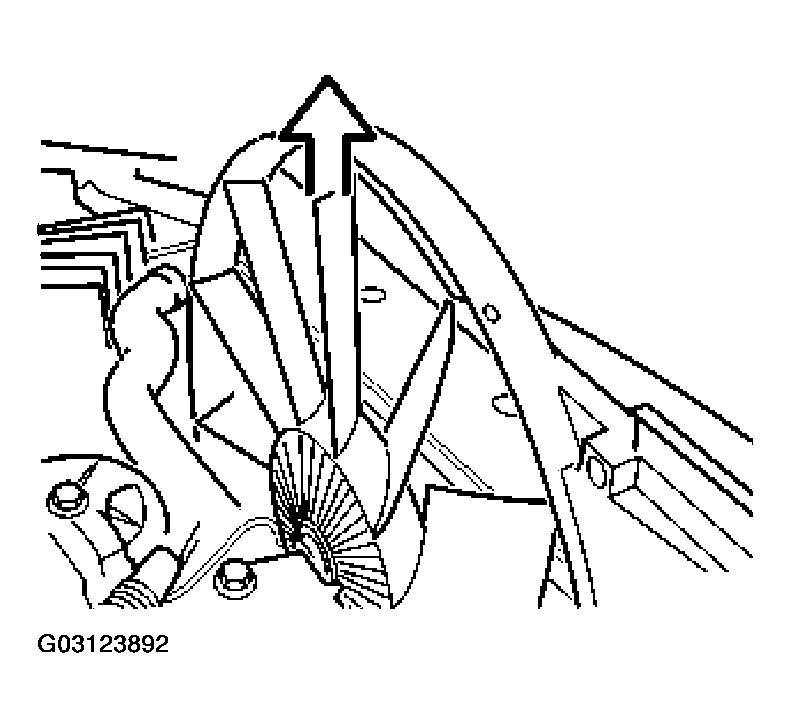

Gently press fan cowl in middle at top towards rear and unhook guide lug.

Lift out fan cowl and fan impeller together.

Fig 6: Lifting Out Fan Cowl And Fan Impeller Together

G03123892

Courtesy of BMW OF NORTH AMERICA, INC.
