17 40 000 Removing and installing / replacing complete auxiliary fan

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, 2004 BMW 330xi, and 2004 BMW 330i. However, it is still accessible from the selected car via links, so may be relevant.

M57, M57TU only:

Lever out expansion rivets (1).

Remove intake cover (2).

Fig 1: Removing Intake Cover

G03123914

Courtesy of BMW OF NORTH AMERICA, INC.

M54 only:

Lift out expansion rivets.

Remove intake cover (1).

Fig 2: Removing Expansion Rivets

G03123915

Courtesy of BMW OF NORTH AMERICA, INC.

M57, M57TU and M54:

Remove complete front bumper. See 51 11 000 REMOVING AND INSTALLING COMPLETE FRONT BUMPER (FROM 10/01)

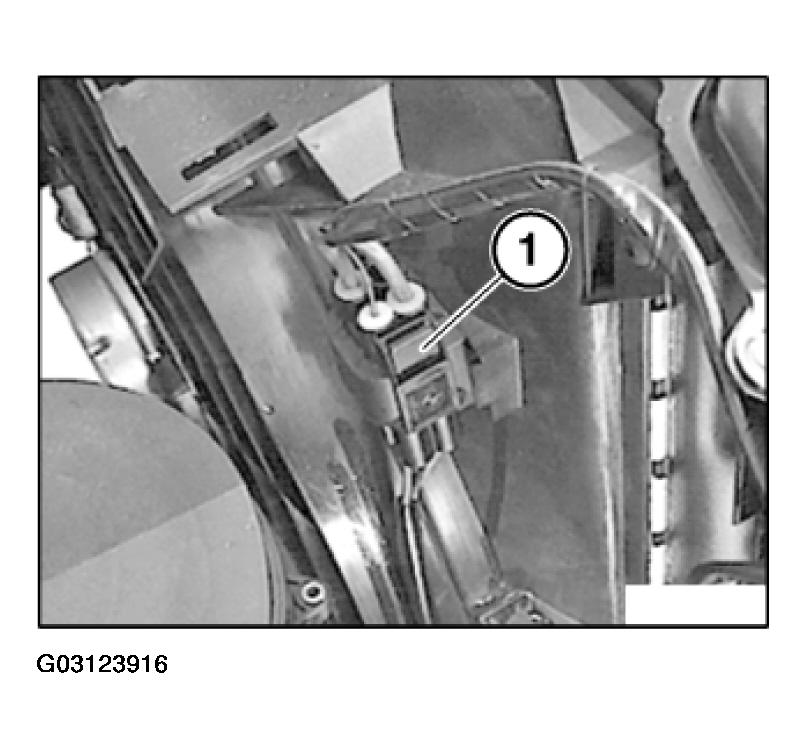

Unlock and disconnect plug (1).

Fig 3: Disconnecting Plug

G03123916

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out expansion rivets (1).

Remove fan cowl (2).

Fig 4: Removing Fan Cowl

G03123917

Courtesy of BMW OF NORTH AMERICA, INC.

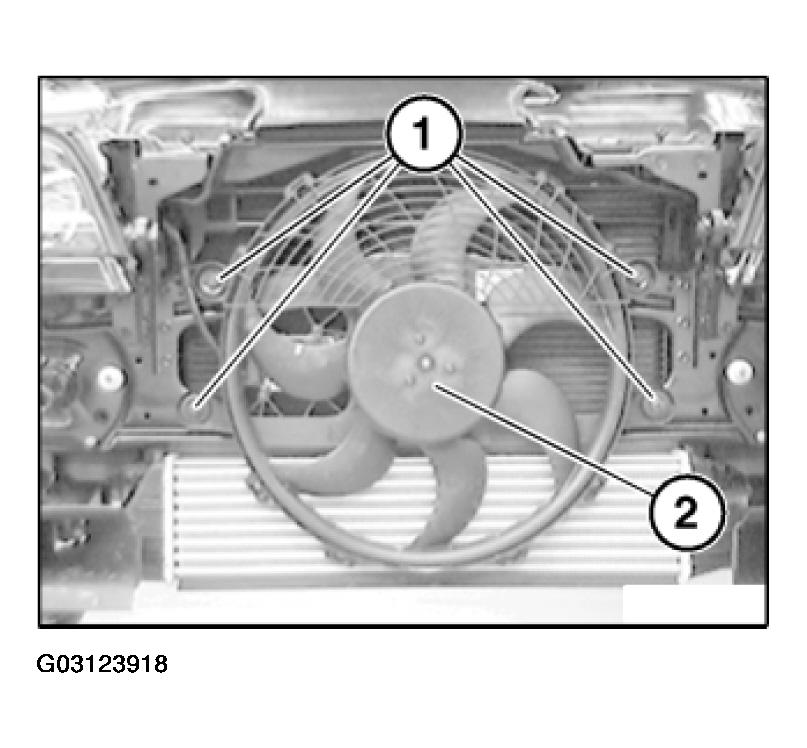

Release screws (1).

Remove fan impeller (2).

Fig 5: Removing Fan Impeller

G03123918

Courtesy of BMW OF NORTH AMERICA, INC.
