16 12 010 Removing and installing/replacing carbon canister with LDP (leak diagnosis pump)

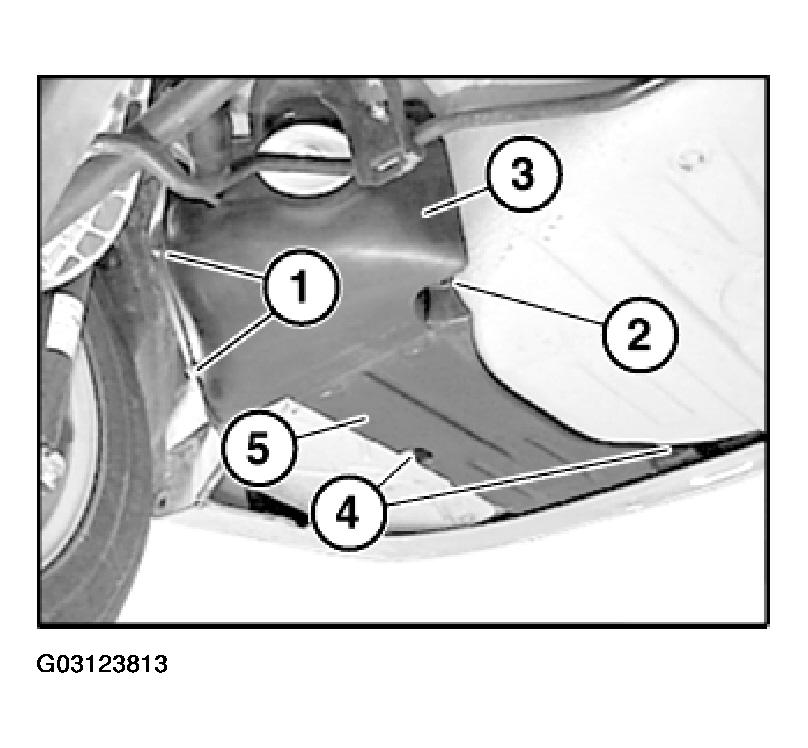

Release screws (1), lift out expansion rivet (2) and remove cover (3).

Lever out expansion rivets (4) and remove cover (5).

Fig 1: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

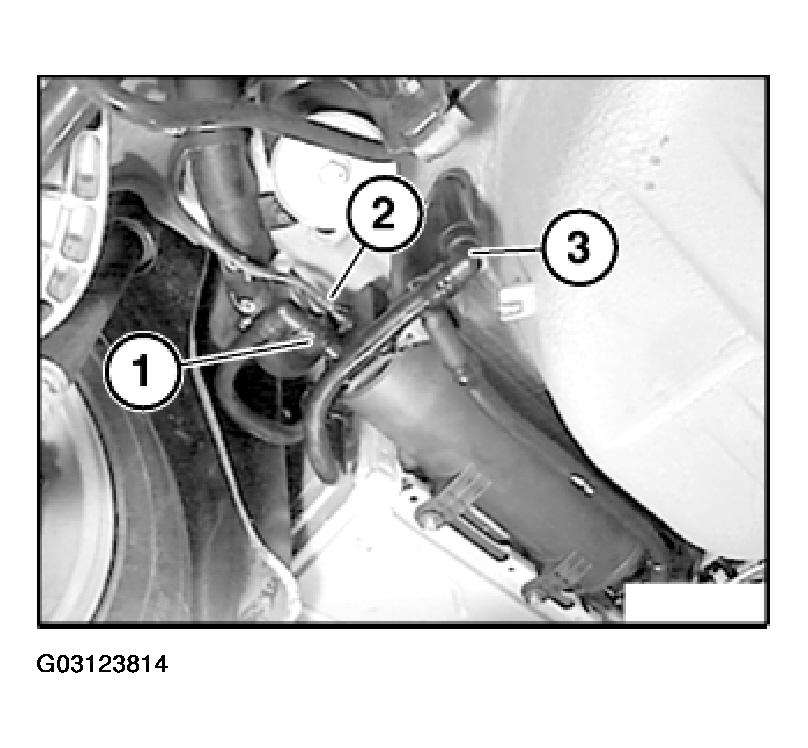

Unfasten lines (1)... (3) and detach.

1. Line to expansion tank
2. Scavenging air line
3. Intake line for dust filter

Fig 2: Unfastening Lines And Detach

Courtesy of BMW OF NORTH AMERICA, INC.

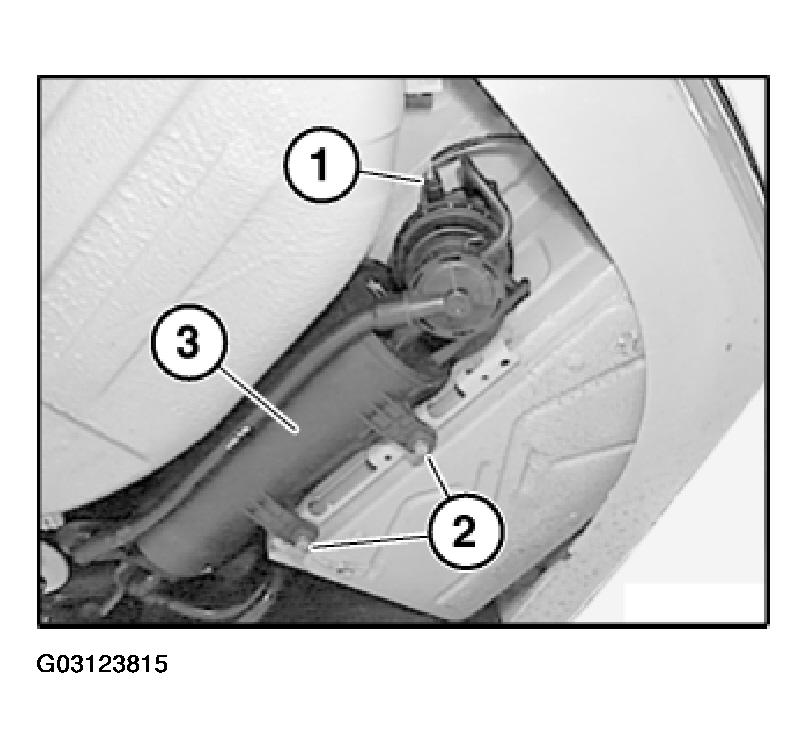

Unfasten plug connection (1).

Release screws (2) and remove carbon canister (3) with leakage diagnosis pump towards bottom.

Fig 3: Removing Carbon Canister

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

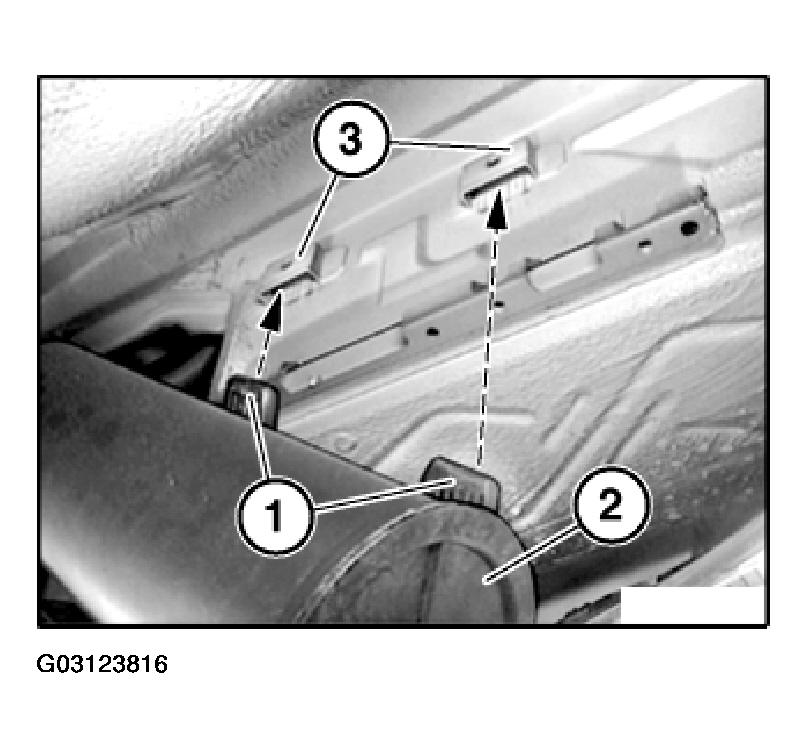

Press rubber-encased lugs (1) on carbon canister (2) into mountings (3).

Fig 4: Pressing Rubber-Encased Lugs On Carbon Canister Into Mountings

Courtesy of BMW OF NORTH AMERICA, INC.
