13 31 029 Checking fuel pump delivery pressure (M54)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

13 3 010
13 5 220
61 3 050

Switch off ignition.

CAUTION: The fuel in the fuel lines is under pressure (approx. 3 bar)! Catch and dispose of escaping fuel.

Remove cover from fuel injectors. See HOUSING COVER

Remove dust cap (1) from measuring valve on fuel rail.

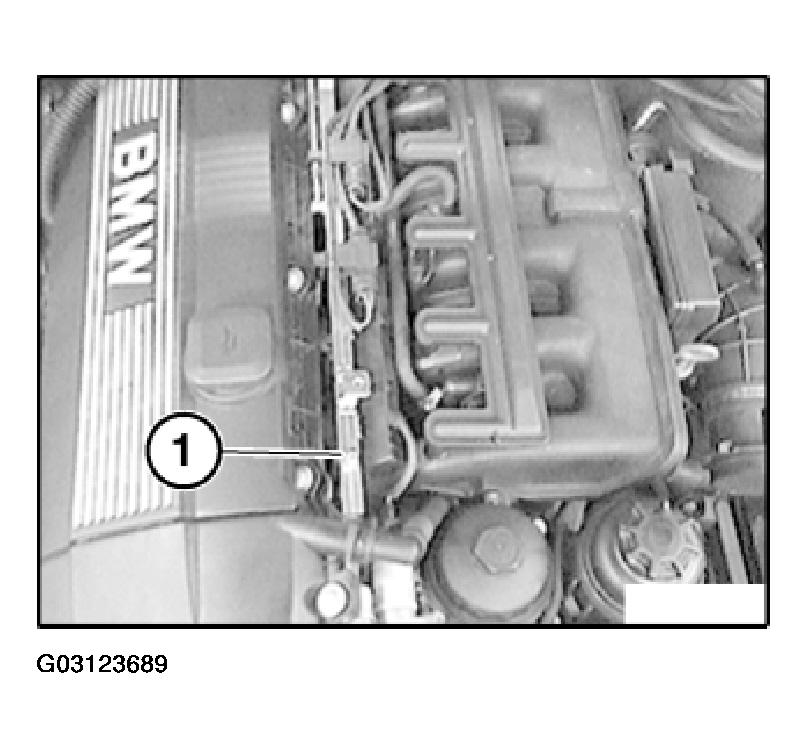

Fig 1: Removing Dust Cap From Measuring Valve On Fuel Rail

Courtesy of BMW OF NORTH AMERICA, INC.

Prepare special took kit 13 5 220 (consisting of 13 5 221 and 13 5 222).

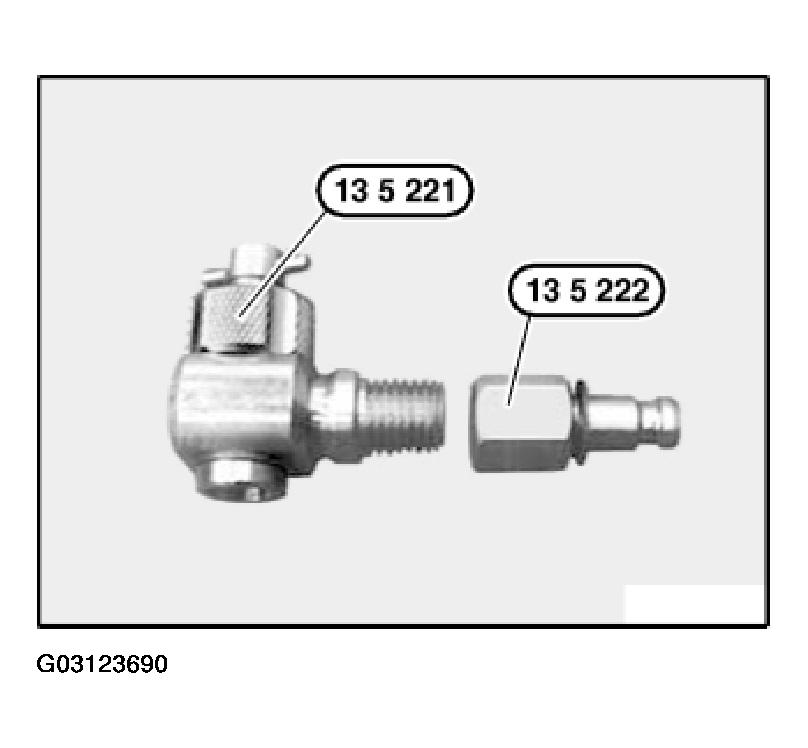

Fig 2: Identifying Special Took Kit

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew check valve (1) on special tool kit 13 5 220.

Fit special tool kit 13 5 220 on measuring valve and tighten knurled nut until hand-tight.

Start engine.

Screw in check valve (1) until a pressure reading is indicated on DIS Tester.

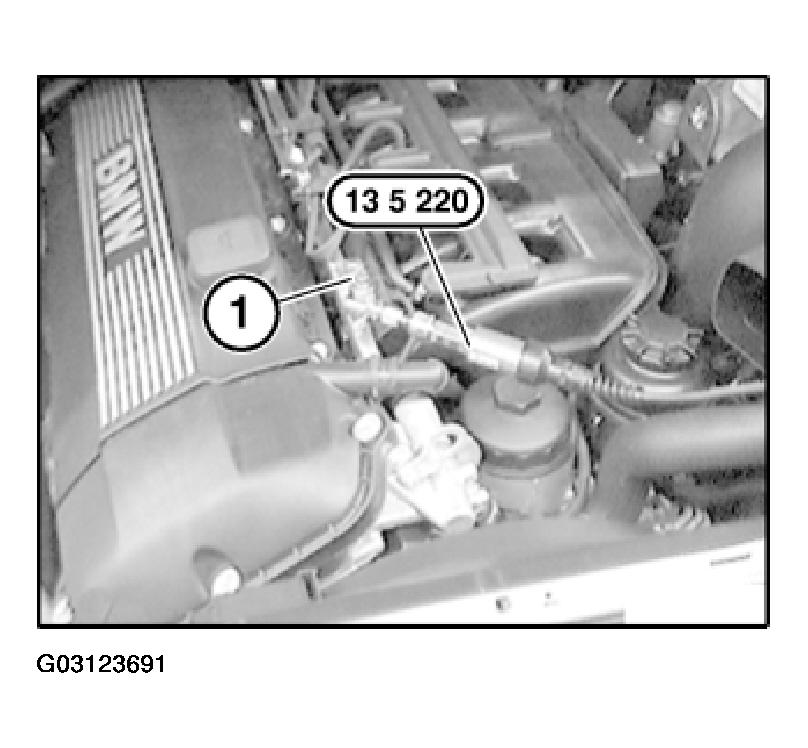

Fig 3: Unscrewing Check Valve

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Do not under any circumstances screw in the check valve up to the mechanical stop. This could damage the valve in the pressure regulator housing.

Measuring fuel pressure:

Connect pressure sensor to DIS Tester
Start engine.
Select Measurement.
Multimeter function appears
Select Pressure test
Read off fuel pressure

Compare actual value of test pressure with specified value.

Switch off engine.

Checking fuel pump:

Detach fuel pump relay.

NOTE: Check whether fuel pump no longer starts up during engine starting procedure (engine fails to start).

Connect special tool 61 3 050 to terminal (87) and terminal (30).

Press button and read off fuel pump delivery pressure on DIS Tester.

Compare actual value with specified value of delivery pressure.

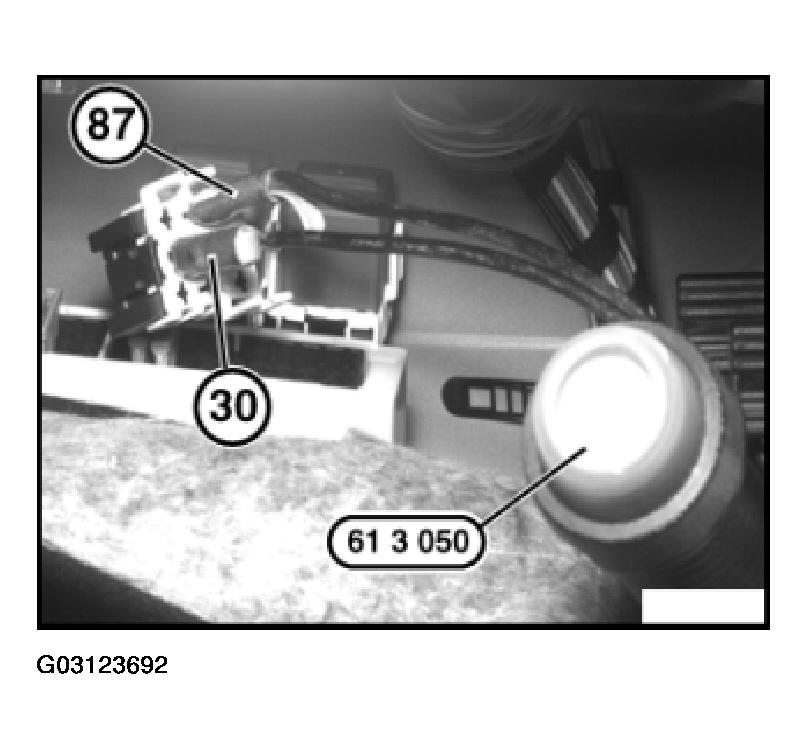

Fig 4: Connecting Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Keep special tool 13 3 010 ready for further tests.

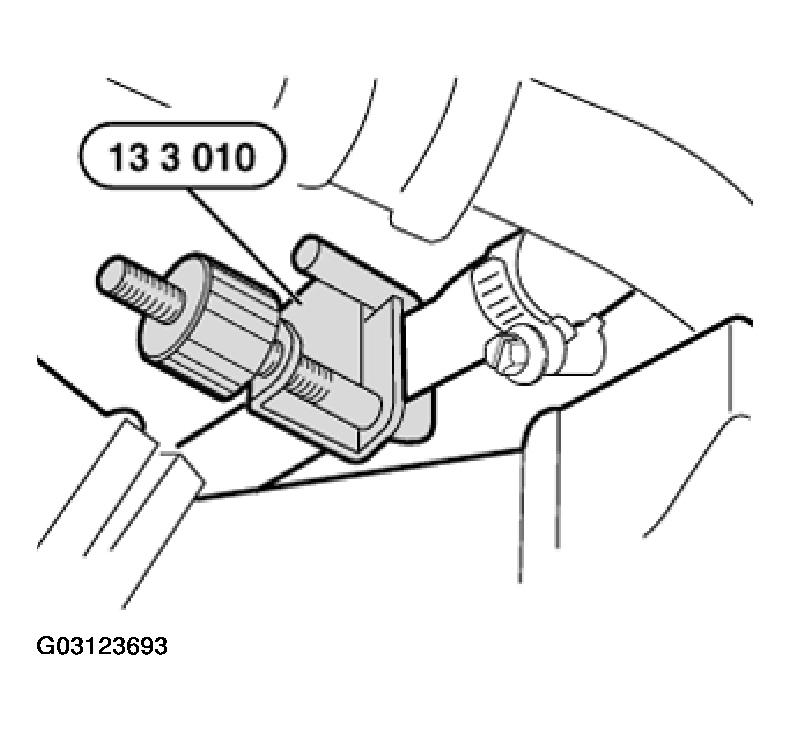

Fig 5: Identifying Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Interrogate fault memory of DME control unit.
Check stored fault messages.
Rectify faults.
Then clear fault memory.
