132 001 Replacing air cleaner element (M54)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

E53 only:

Open clips (1).

Lift top section (2) of intake filter housing.

Fig 1: Lifting Top Section Of Intake Filter Housing

Courtesy of BMW OF NORTH AMERICA, INC.

E46 only:

Open clips (1).

Open retainers (2) on air-mass flow sensor.

Remove top section (3) of intake filter housing.

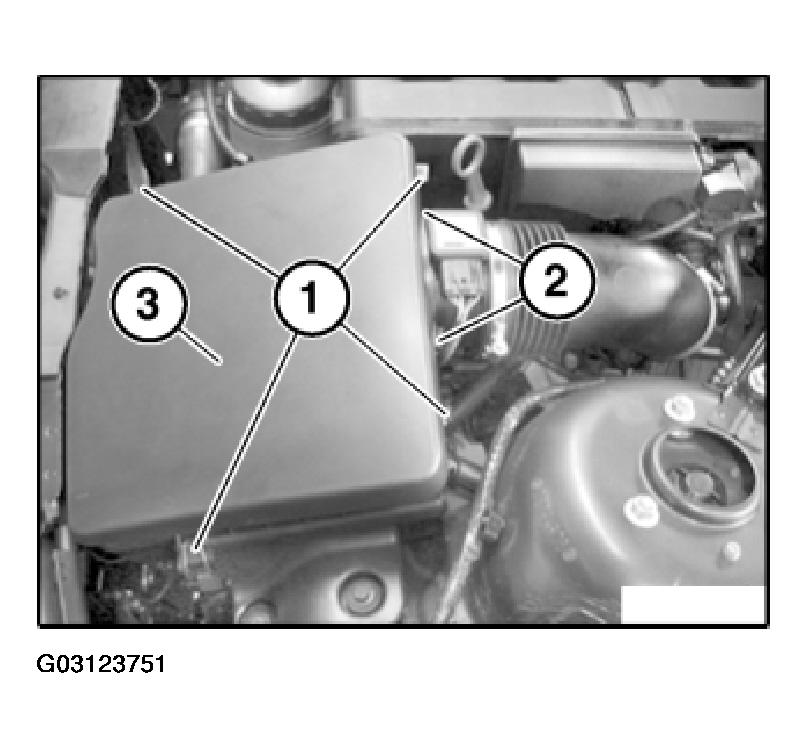

Fig 2: Opening Retainers On Air-Mass Flow Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

E85 only:

Open clips (1).

Open retainers (2) on air-mass flow sensor.

Lift top section (3) of intake filter housing.

Fig 3: Lifting Top Section Of Intake Filter Housing

Courtesy of BMW OF NORTH AMERICA, INC.

E53, E46 and E85:

Remove air cleaner element.

Installation:

Clean top and bottom sections of intake filter housing from inside.

Install new air cleaner element.

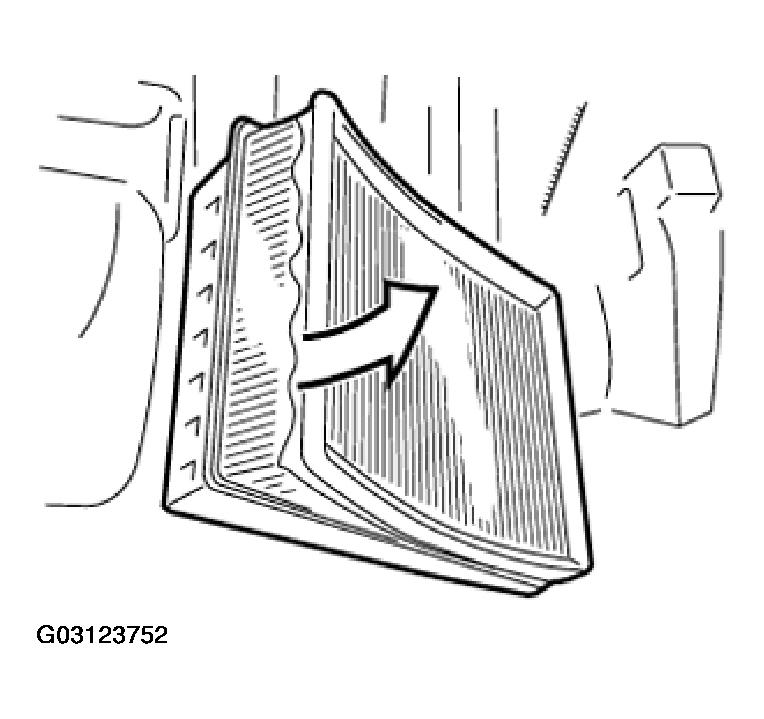

Fig 4: Installing New Air Cleaner Element

Courtesy of BMW OF NORTH AMERICA, INC.

Check seal between air-mass flow sensor and air cleaner top section for damage, replace if necessary.

Coat seal with antiseize agent to facilitate joining of air cleaner and throttle body.
