12 14 524 Replacing pulse generator on exhaust camshaft (M52TU, M54, M56)

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 330xi, 2005 BMW 330i, and 2005 BMW 330Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Check stored fault messages.
Switch off ignition.

Location:

On cylinder head at front on exhaust side.

Unlock plug (1) and detach from pulse generator.

Fig 1: Unlocking Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) on cylinder head.

Remove pulse generator.

Installation:

Check sealing ring for possible damage, replace if necessary.

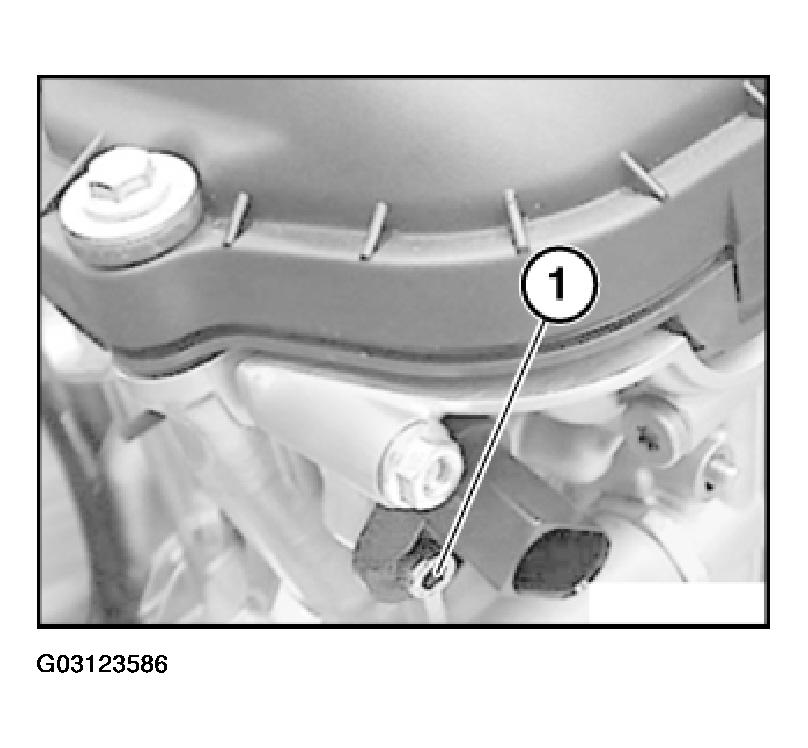

Fig 2: Releasing Screw On Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Interrogate fault memory of DME control unit.
Rectify faults.
Now clear the fault memory.
