11 23 010 Removing and installing or replacing vibration damper (M52TU / M54 / M56)

Special tools required:

• 11 8 190
• 11 8 200
• 11 8 210

Necessary preliminary tasks:

• Unscrew and remove splash guard. See 51 11 000 REMOVING AND INSTALLING COMPLETE FRONT BUMPER (FROM 10/01)
• Remove fan impeller with fan clutch and fan cowl. See 11 52 020 Removing and installing/replacing fan clutch (S52 / S54 / M52 / M52TU / M54 / M56)
• E83/E85/E60: Remove fan cowl with electric fan.
• Remove A/C compressor drive belt. See 64 52 520 REMOVING AND INSTALLING / REPLACING COMPLETE A/C COMPRESSOR
• Remove alternator drive belt. See 12 31... REPLACING ALTERNATOR BELT PULLEY

Version 1

Vibration damper and hub for vibration damper are two parts:

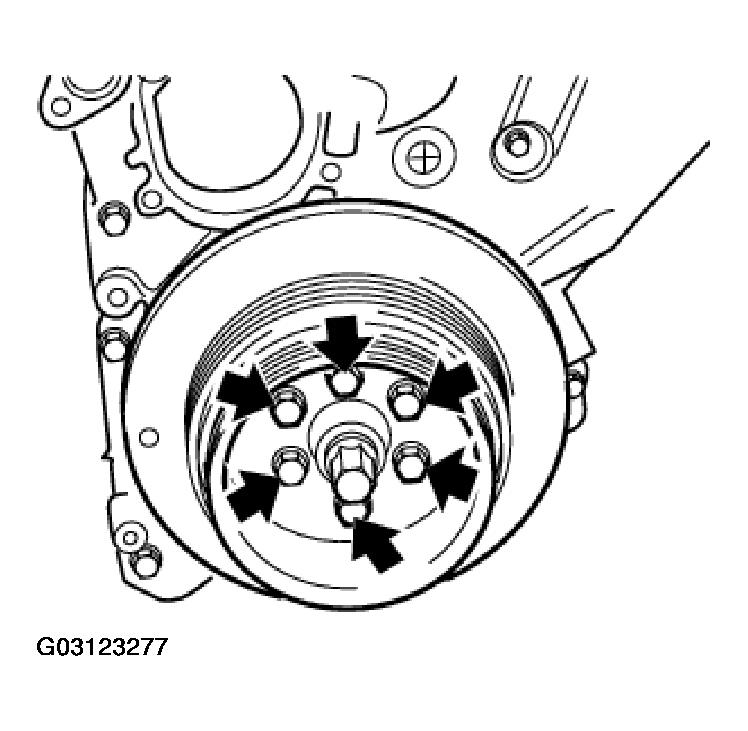

Unscrew vibration damper bolts and take off vibration damper.

Fig 1: Identifying Vibration Damper Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Version 1

Vibration damper and hub for vibration damper are two parts:

Installation:

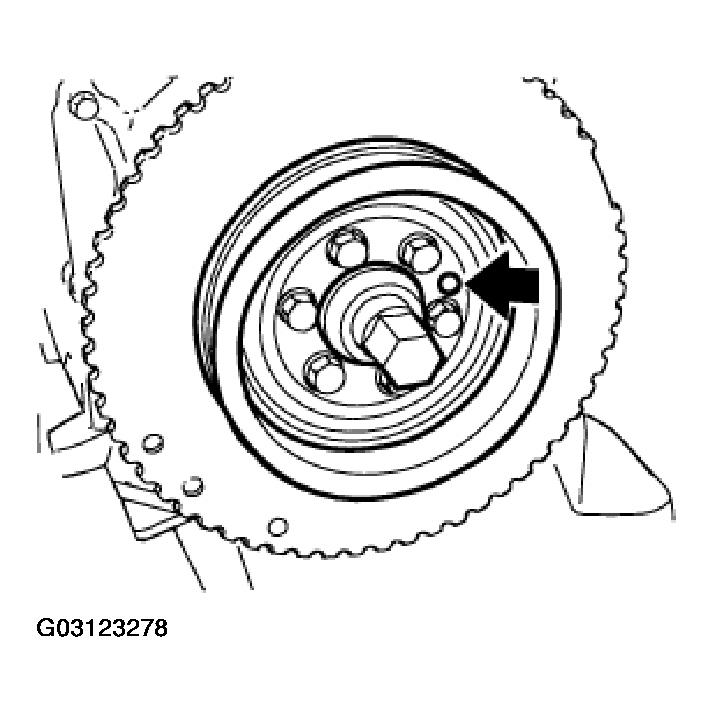

Align locating bore in vibration damper to dowel pin.

Install and tighten down screws.

Tightening torque. Refer to ENGINE - TIGHTENING TORQUES - 3-SERIES (E46) .

Fig 2: Aligning Locating Bore In Vibration Damper To Dowel Pin

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

Vibration damper and hub for vibration damper are one part:

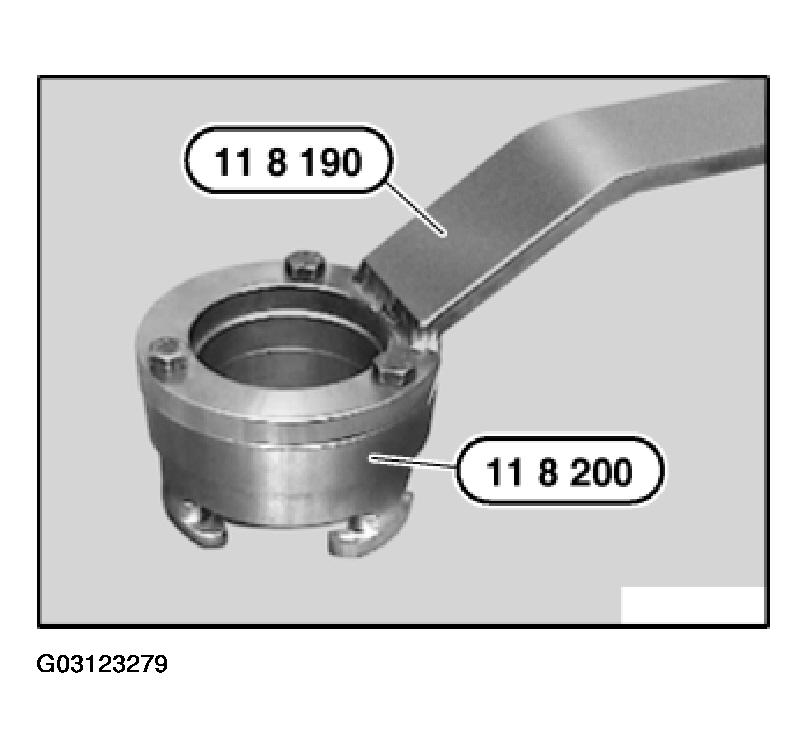

Screw special tool 11 8 190 to special tool 11 8 200.

Fig 3: Screwing Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

Fig 4: Identifying Opening In Snap

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

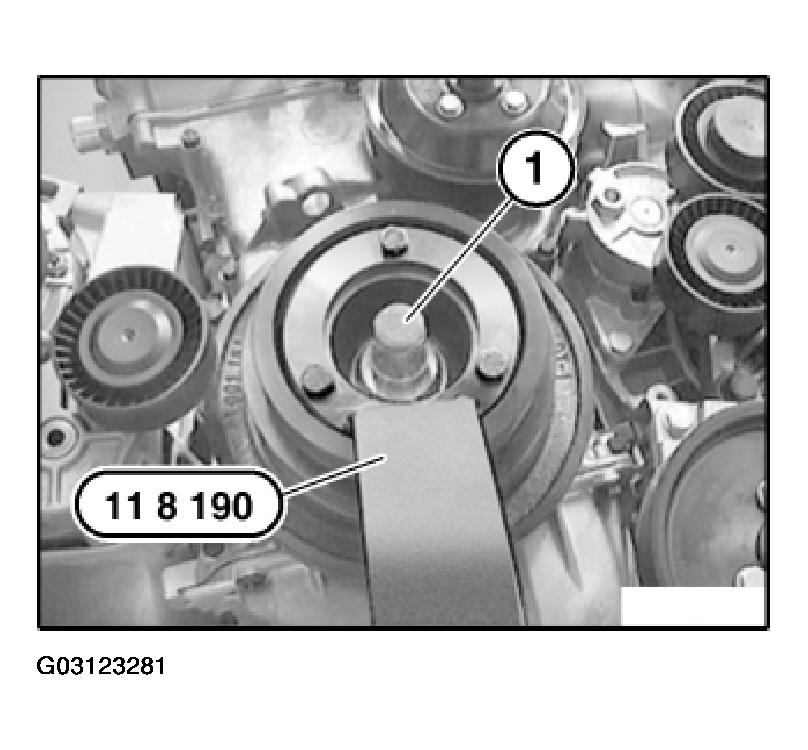

When releasing and tightening down central bolt, grip special tool 11 8 190 with assistance of a second person.

Fig 5: Releasing Central Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

Insert special tool 11 8 200 in openings on vibration damper and turn counterclockwise so that counter-supports snap into place on vibration damper.

Release central screw (1).

Version 2

Feed out special tools 11 8 190 / 11 8 200.

Remove central screw and washer.

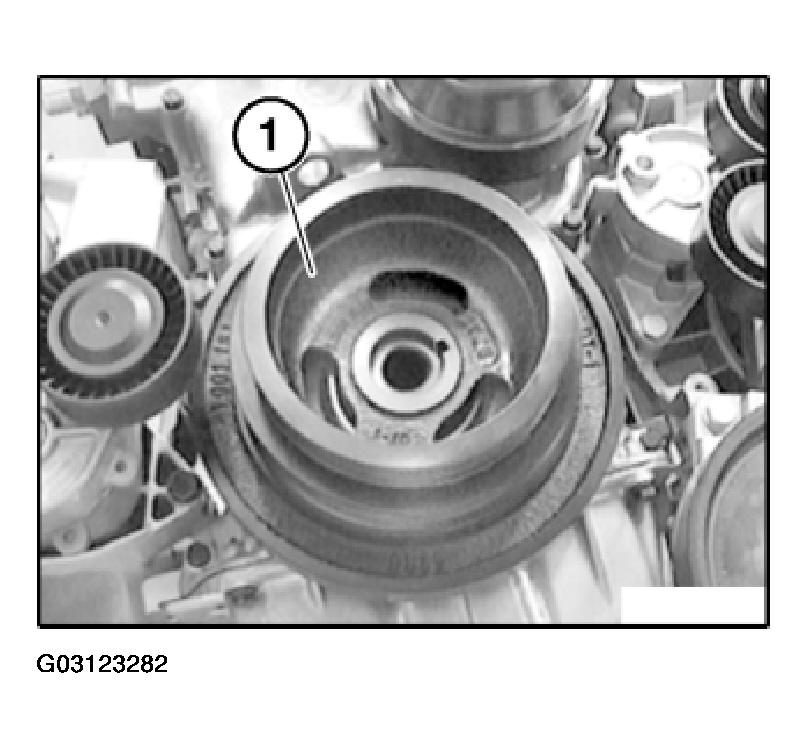

Carefully detach vibration damper (1) by hand.

Fig 6: Detaching Vibration Damper By Hand

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

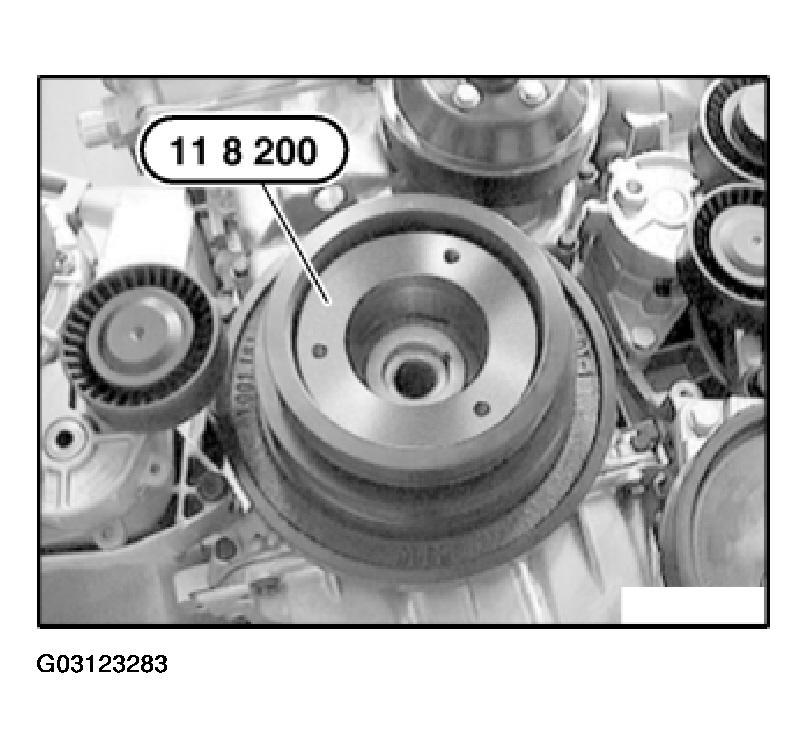

Insert special tool 11 8 200 in openings on vibration damper and turn clockwise so that counter-supports snap into place on vibration damper.

Fig 7: Inserting Special Tool In Openings On Vibration Damper

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

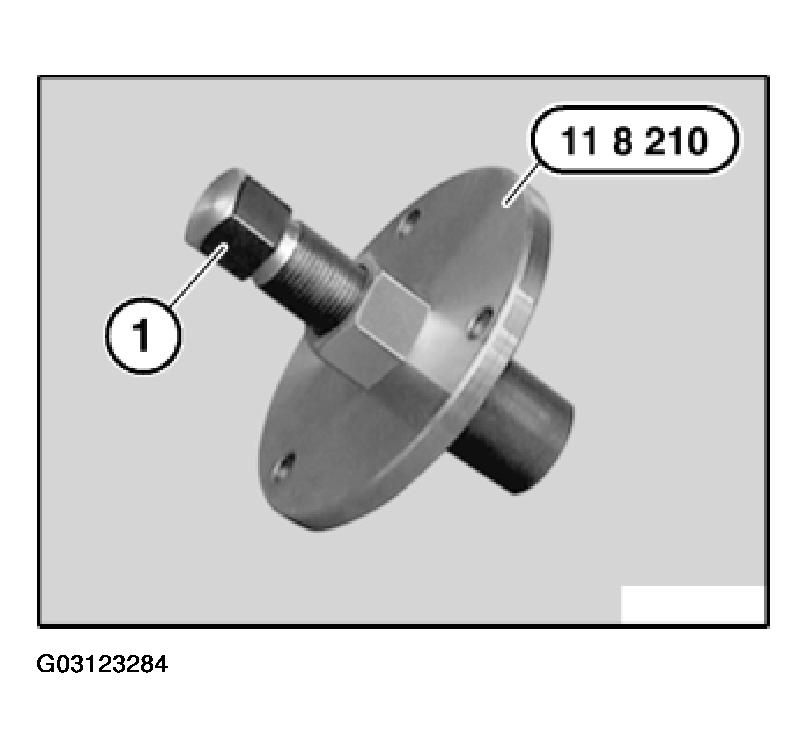

Screw out spindle (1) on special tool 11 8 210 as far as possible.

Z3 only:

Screw in spindle (1) on special tool 11 8 210 approx. 15 mm and screw out again only after installation between special tool 11 8 200 and cooler.

Fig 8: Identifying Spindle

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

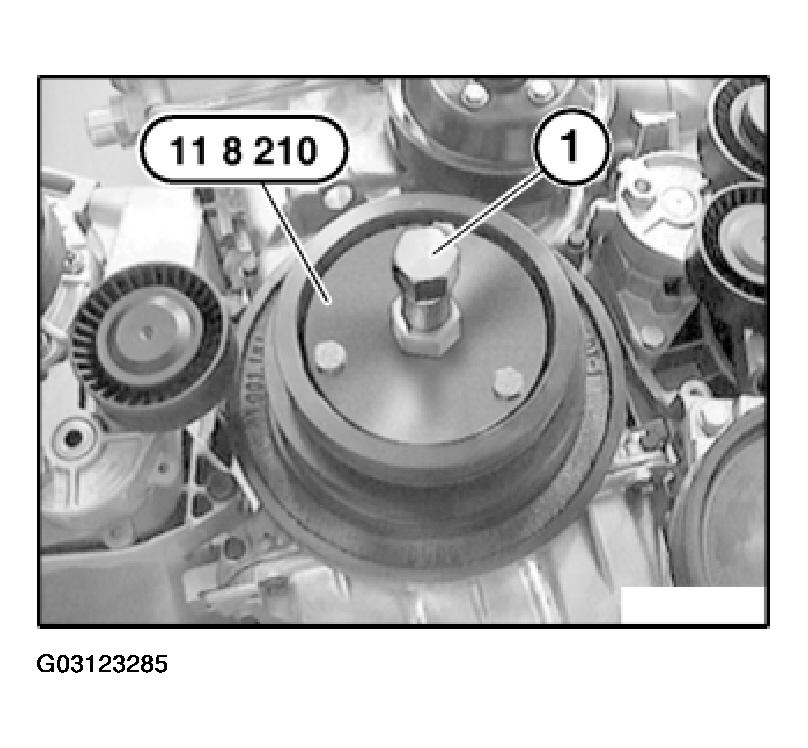

Carefully install special tool 11 8 210.

Screw special tool 11 8 210 to special tool 11 8 200. Detach vibration damper by turning spindle (1) on special tool 11 8 210.

Fig 9: Installing Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

Installation:

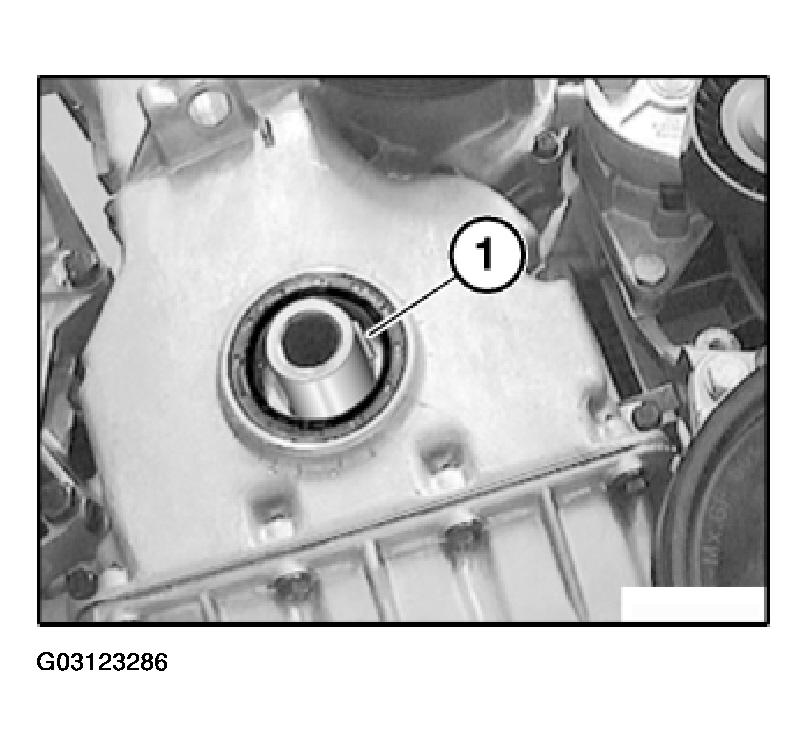

Check featherkey (1) for damage and correct installation position.

Replace radial seal in lower timing case cover.

Fig 10: Checking Featherkey For Damage

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

Installation:

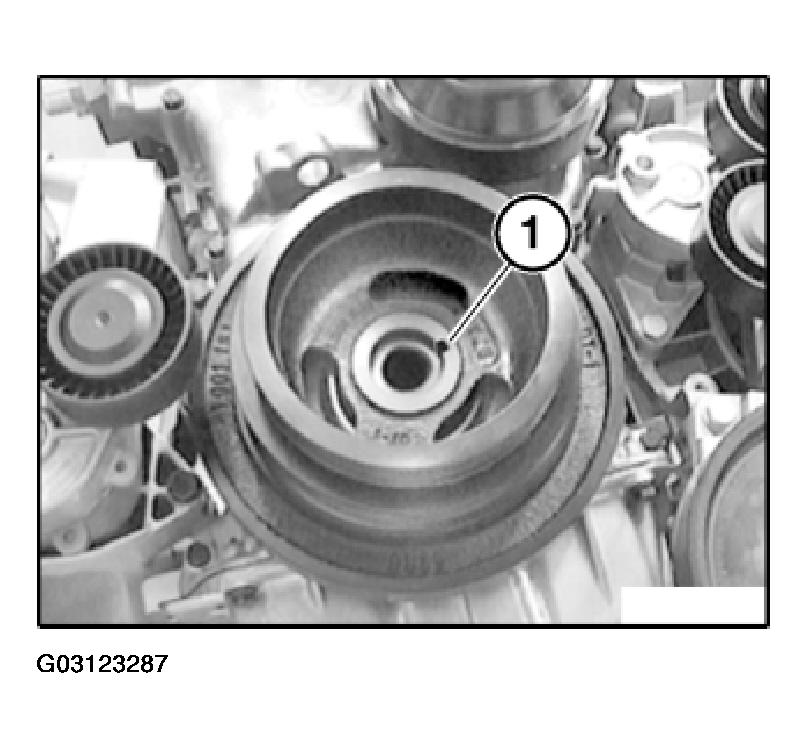

Align groove (1) in vibration damper to featherkey.

Fit vibration damper.

Fig 11: Aligning Groove In Vibration Damper

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

Installation:

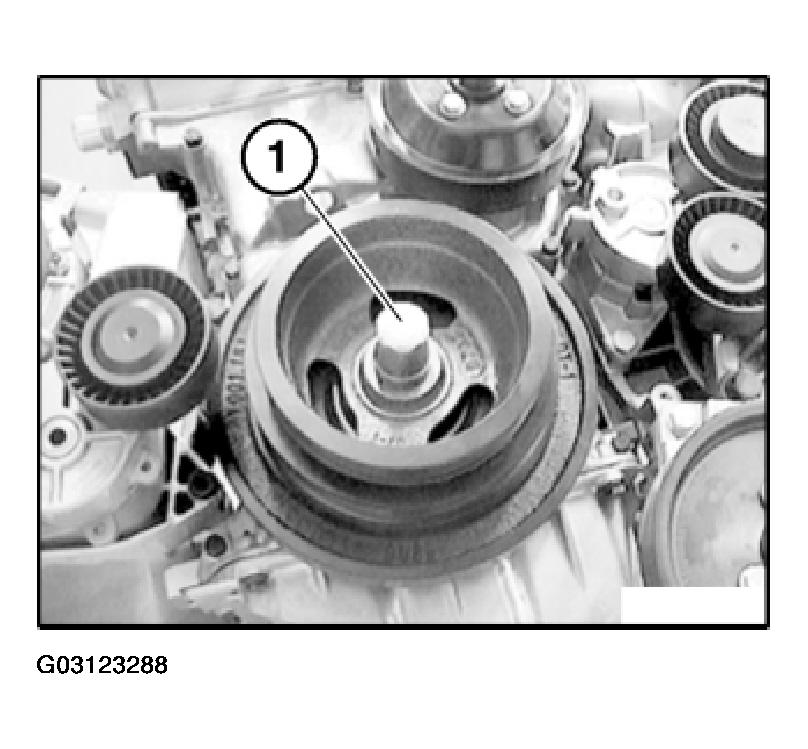

Replace central screw (1).

Install central screw and washer.

Fig 12: Replacing Central Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

Installation:

Screw special tool 11 8 190 to special tool 11 8 200.

Fig 13: Screwing Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

Insert special tool 11 8 200 in openings on vibration damper and turn clockwise so that counter-supports snap into place on vibration damper.

Tighten down central screw (1).

Tightening torque. Refer to ENGINE - TIGHTENING TORQUES - 3-SERIES (E46) .

Fig 14: Inserting Special Tool In Openings On Vibration Damper

Courtesy of BMW OF NORTH AMERICA, INC.
