11 12 719 Resurfacing cylinder head sealing surface (M52 / M52TU / M54 / M56)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

(cylinder head dismantled)

Check flatness of cylinder head sealing surface with a commercially available straightedge.

Deviation from flatness max. 0.05 mm.

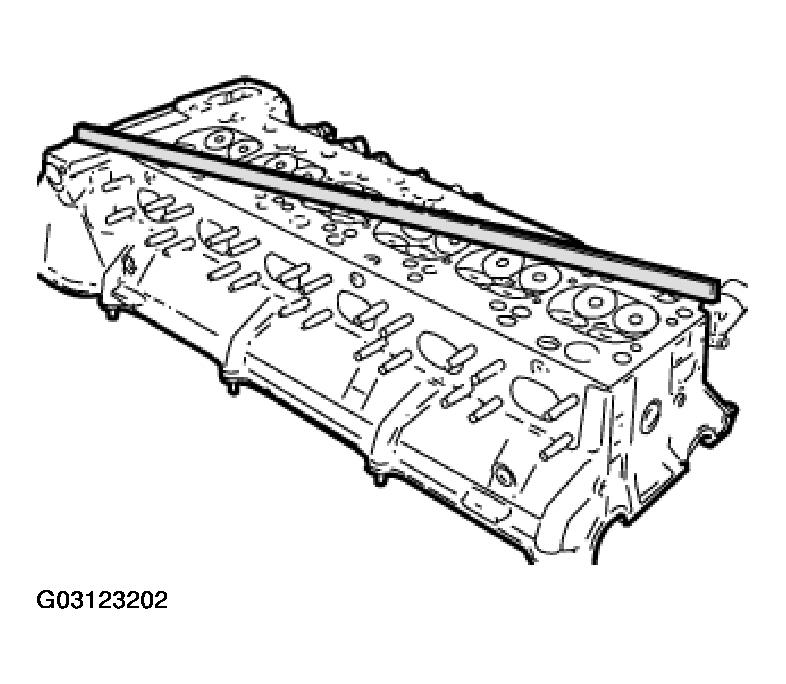

Fig 1: Checking Flatness Of Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Machining limit.

Fig 2: Identifying Machining Limit

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For compression comparison check, a repair cylinder head seal is provided.

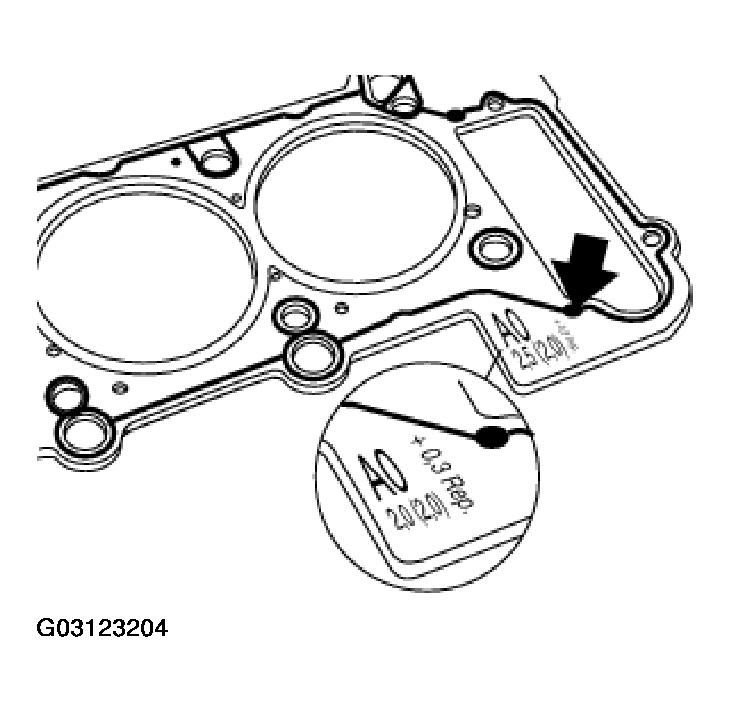

Fig 3: Identifying Cylinder Head Seal

Courtesy of BMW OF NORTH AMERICA, INC.
