11 12 600 Reaming a valve guide (M52 / S52 / M52TU / M54 / M56)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 4 210

(valve removed)

NOTE: In event of excessive clearance between valve stem and valve guide:
Valve guide is reamed and a repair valve with a larger stem diameter is installed.

Assemble reaming tool and guide taper (1) from special tool kit 00 4 210 depending on stem diameter. Press guide taper (1) onto valve seat. Starting from combustion chamber side, ream valve guide dry. Rotate reaming tool once in downwards direction.

NOTE: Remachine valve seat after reaming.

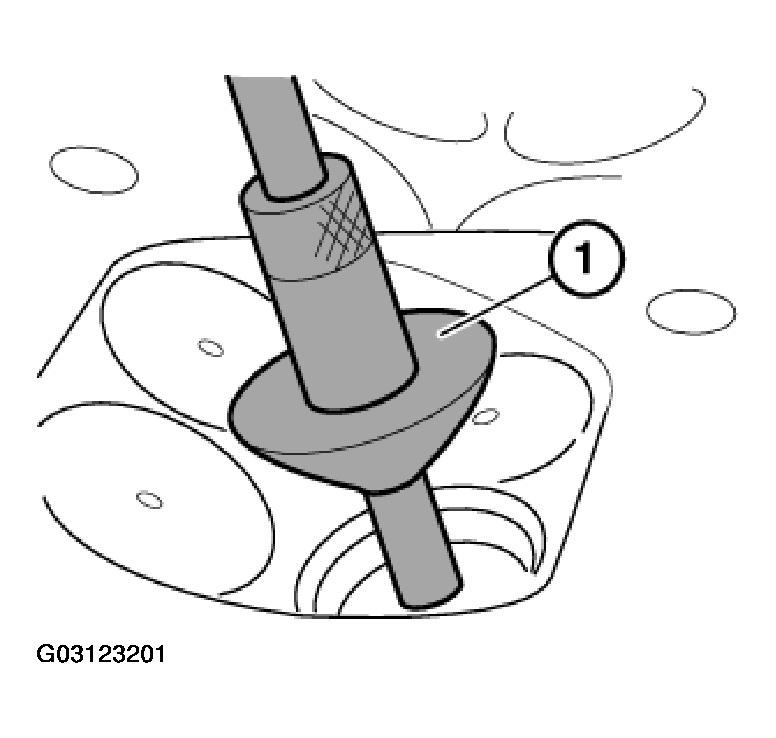

Fig 1: Assembling Reaming Tool & Guiding Taper From Special Tool Kit

Courtesy of BMW OF NORTH AMERICA, INC.
