11 12 527 Remachining a valve seat (M52 / S52 / M52TU / M54 / M56)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 3 520
00 3 580

(cylinder head dismantled)

Machine valve seat surface with special tool 00 3 520 or with special tool 00 3 580 in accordance with manufacturer's instructions.

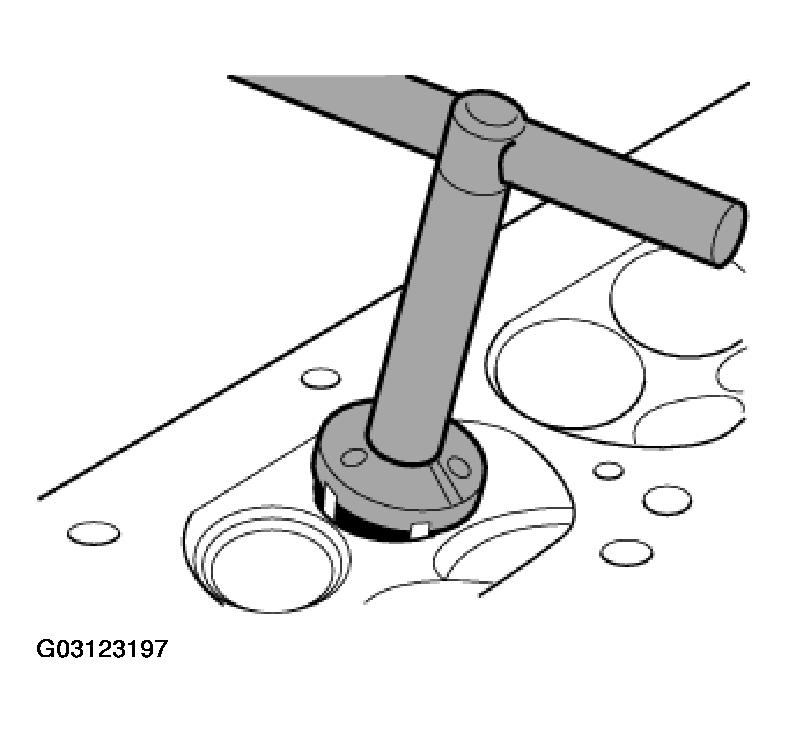

Fig 1: Surfacing Valve Seat With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: After machining the valve seat surface, remachine the outside and inside diameters with a correction milling tool to the prespecified diameter to produce valve seat width (5).

Valve-seat angle
Correction angle, outside
Correction angle, inside
Outside diameter seat face
Valve-seat width

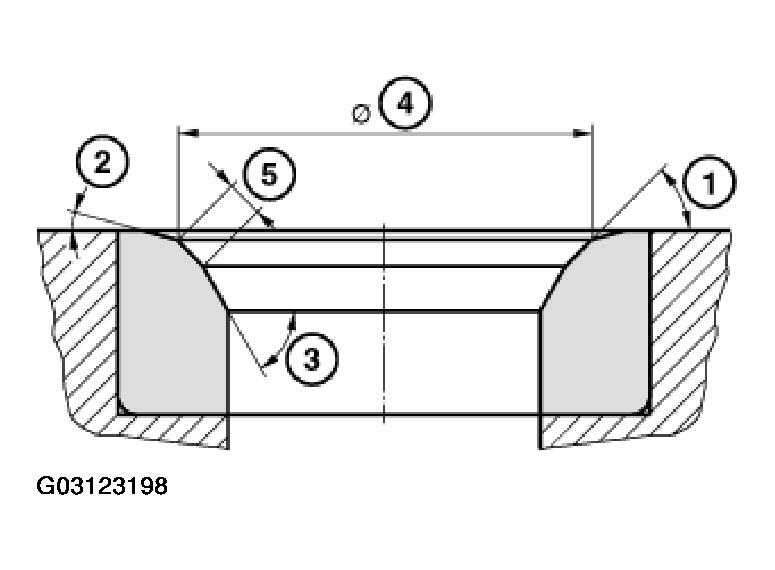

Fig 2: Remachining Outside & Inside Diameters

Courtesy of BMW OF NORTH AMERICA, INC.

Specified values (1 to 5).
