11 12 100 Removing and installing/replacing cylinder head (M52TU / M54 / M56): Removal

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Removal of cylinder head is described separately from installation.

Remove double VANOS adjustment unit.

Remove camshafts with bearing strips.

Release screw connection between timing case cover and cylinder head.

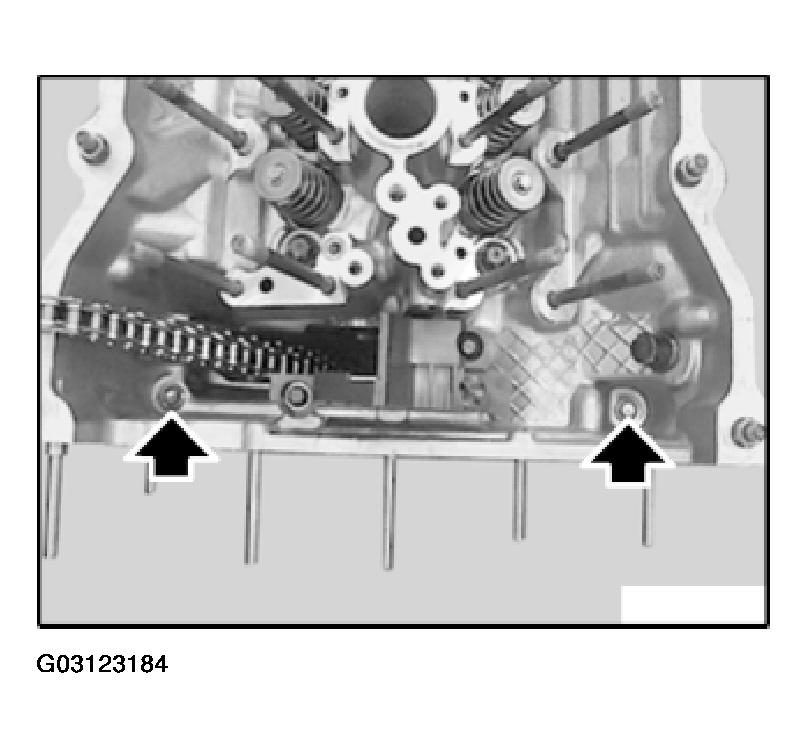

Fig 1: Releasing Screw Connection Between Timing Case Cover & Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws, remove chain guide.

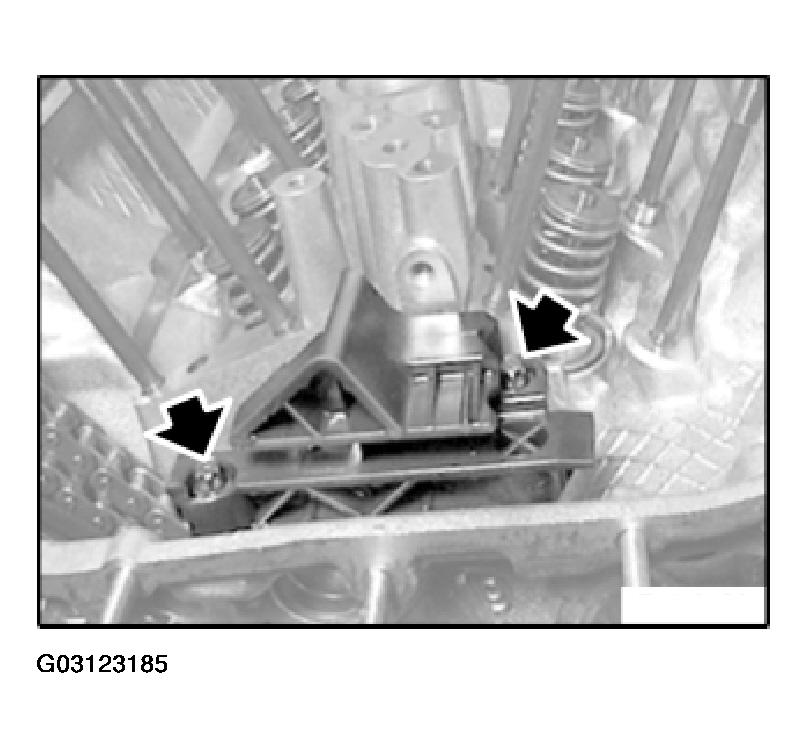

Fig 2: Releasing Screws Removing Chain Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Release cylinder head bolts from outside to inside in sequence 14 to 1.

Lift off cylinder head.

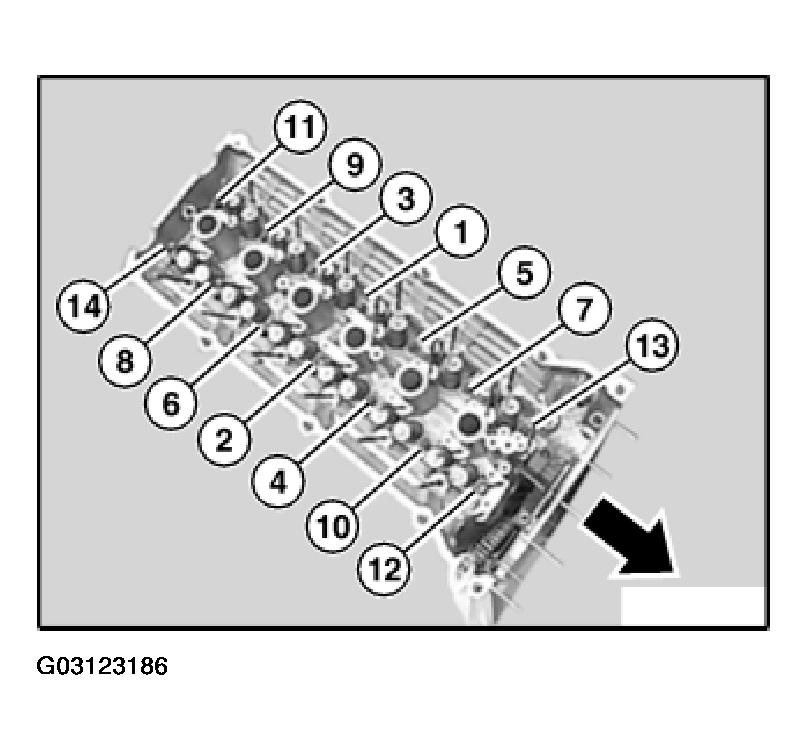

Fig 3: Identifying Cylinder Head Bolt

Courtesy of BMW OF NORTH AMERICA, INC.
