SPECIAL TOOL

In conjunction with:	11 7 342
Note:	With correction angle for control diagram
Engine:	S54
SI number:	1 15 00(609)
Order number:	11 9 130
	Setting gauge

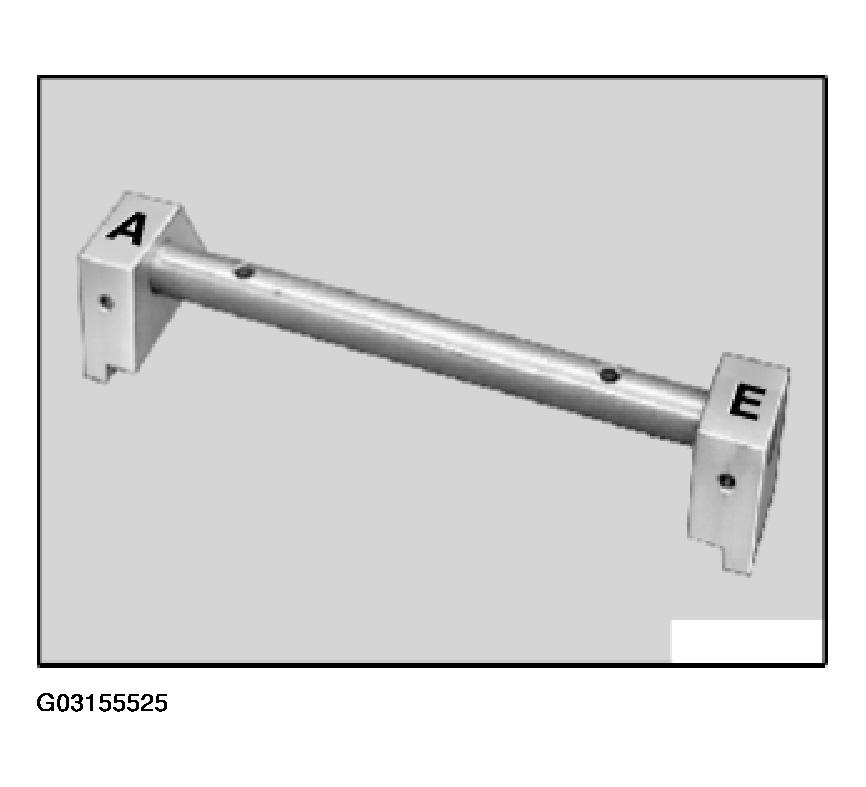

Fig 1: Identifying Setting Gauge

Courtesy of BMW OF NORTH AMERICA, INC.
