11 0 340 Accessories
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 BMW Z3, 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW Z3, and 2001 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL
| In conjunction with: | 11 1 060 |
| Note: | For removing and installing valve springs Engine: M20, M21, M30, M40, M41, M42, M43, M44, M47, M47TU, M50, M51, M52, M57, M57D25, M57D30, M60, M62, M70, M73, N40, N42, N62, N73, S14, S38, S50B30, S50B32, S54, S62 |
| SI number: | 1 12 93(701) |
| Order number: | 11 0 340 |
| Accessories | |

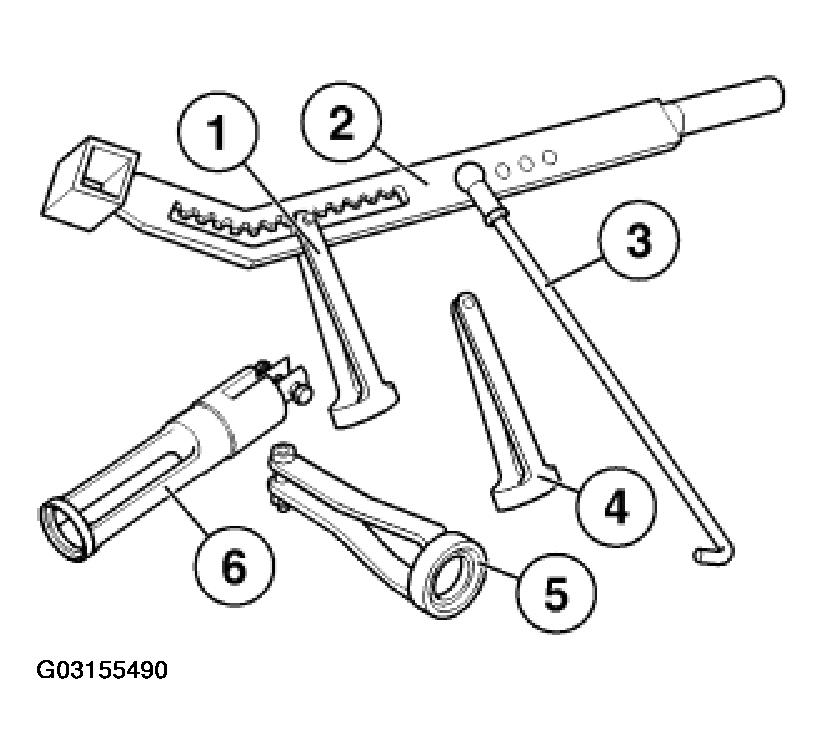

| Consisting of: | |
| 1 = 11 0 341 | Valve spring cage |
|
NOTE:
Engine: M43, M73
|
|
| 2 = 11 0 342 | Pressure lever |
|
NOTE:
Engine: all, except M10
|
|
| 3 = 11 0 343 | Hook |
|
NOTE:
Length 220 mm - Engine: all, except M10
|
|
| 5 = 11 0 345 | Valve spring cage |
|
NOTE:
Engine: M44, M52, M62, S62, S54
|
|
| 6 = 11 0 346 | Valve spring cage |
|
NOTE:
Engine: M47, M47TU, M57, N40, N42
|
