00 0 220 Special tool cabinet, length 2 m
WARNING: This page is about a different car, the 2005 BMW 760i, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

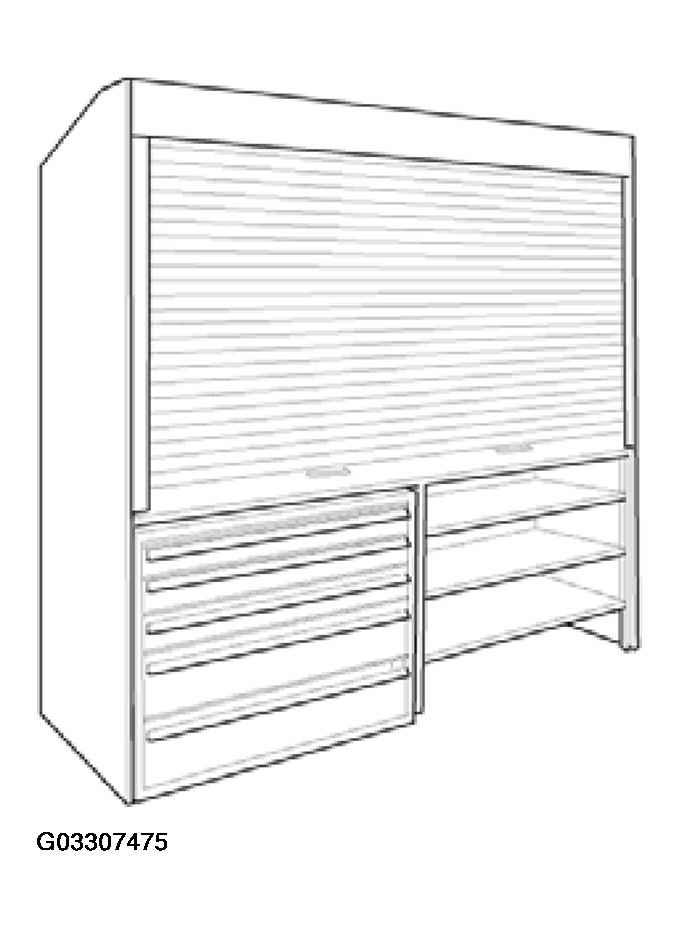

SPECIAL TOOL CABINET SPECIFICATIONS
| Note: | Dimensions: (LxHxD) 2.05 m x 2.10 m x 0.65 m. For extended accommodation of special tools. IMPORTANT! Use Order No. 00 1 000 to erect a complete 6 m long special tool cabinet. |
| SI number: | 0 01 00 (549) |
| Order number: | 00 0 220 |
| Special tool cabinet, length 2 m | |
| Consisting of: | |
| 1 = 00 0 221 | Frame with roller shutter |
|
NOTE:
Basic frame for erecting a separate 2 m long special tool cabinet. NOTE: If ordered individually as a mounting frame, the complete scope of delivery must already be present under Order No. 00 0 220. Overall length with a mounting frame: 4 m.
|
|
| In conjunction with: 00 0 225 / Not available without roller shutter for stability reasons! | |
| 2 = 00 0 222 | Side panel, left |
|
NOTE:
Required only once for erecting the basic frame
|
|
| 3 = 00 0 223 | Side panel, right |
|
NOTE:
Required only once for erecting the basic frame
|
|
| 4 = 00 0 224 | Large special tool board 2 m x 1 m |
|
NOTE:
This special tool board serves as the rear panel of basic and mounting frames and is the basis for large stationary and moving special tool boards.
|
|
| In conjunction with: Hook set and films | |
| 5 = 00 0 225 | Roller shutter, lockable |
|
NOTE:
Included in scope of delivery 00 0 221. This order number is for reordering purposes only.
|
|
| 6 = 00 0 226 | Side frame |
|
NOTE:
Required only once for setting up the basic frame
|
