62 21 000 Removing And Installing Entire Instrument Carrier (Z3 Roadster, Z3 Coupe): Notes

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Remove steering wheel. Refer to STEERING WHEEL .

Remove panelling for instrument panel at bottom, refer to 51 45 180

Unfasten screws, then slide instrument cluster straight out of trim and fold over.

CAUTION: Place cleaning rags on steering column to avoid scratches in glass of instrument carrier.

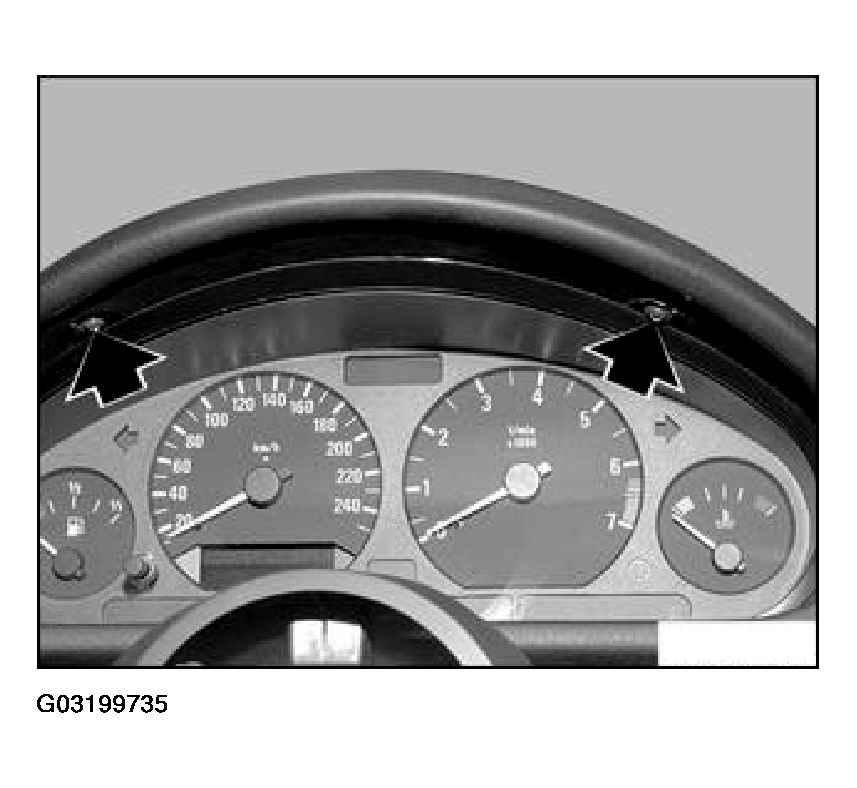

Fig 1: Locating Instrument Cluster Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Push levers on connectors forward and take out connectors.

Fig 2: Removing Connectors

Courtesy of BMW OF NORTH AMERICA, INC.
