51 24 130 Removing and installing/replacing striker for luggage compartment lid lock (Z3 coupe, M coupe): Notes

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Open trunk lid.

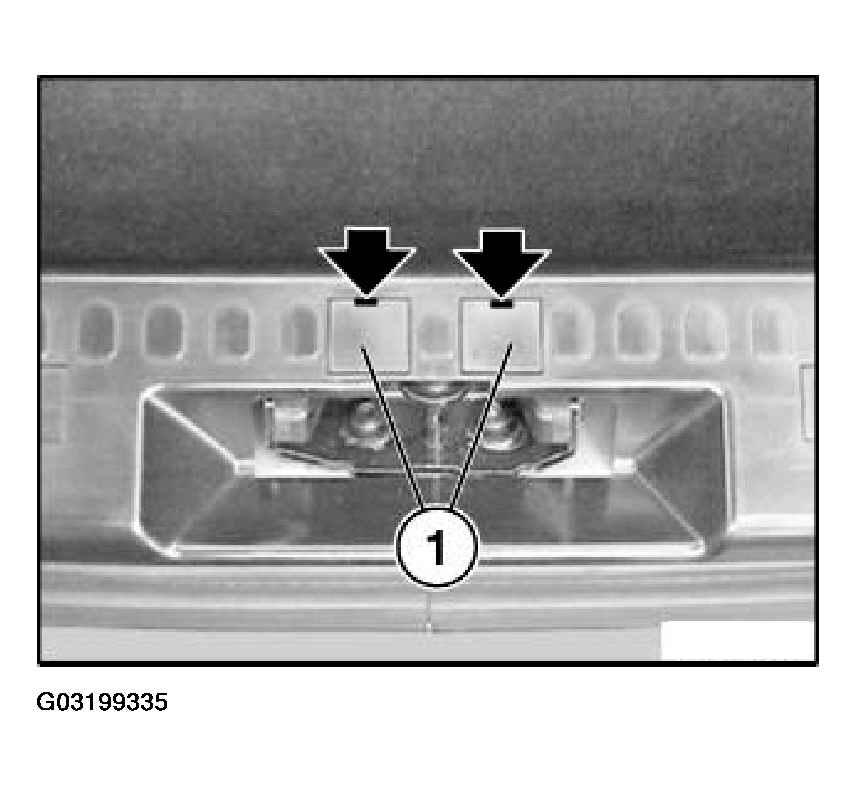

Lift out inserts upward (1) through cut-out of striker (lower section of trunk lid lock).

Fig 1: Removing Inserts

Courtesy of BMW OF NORTH AMERICA, INC.

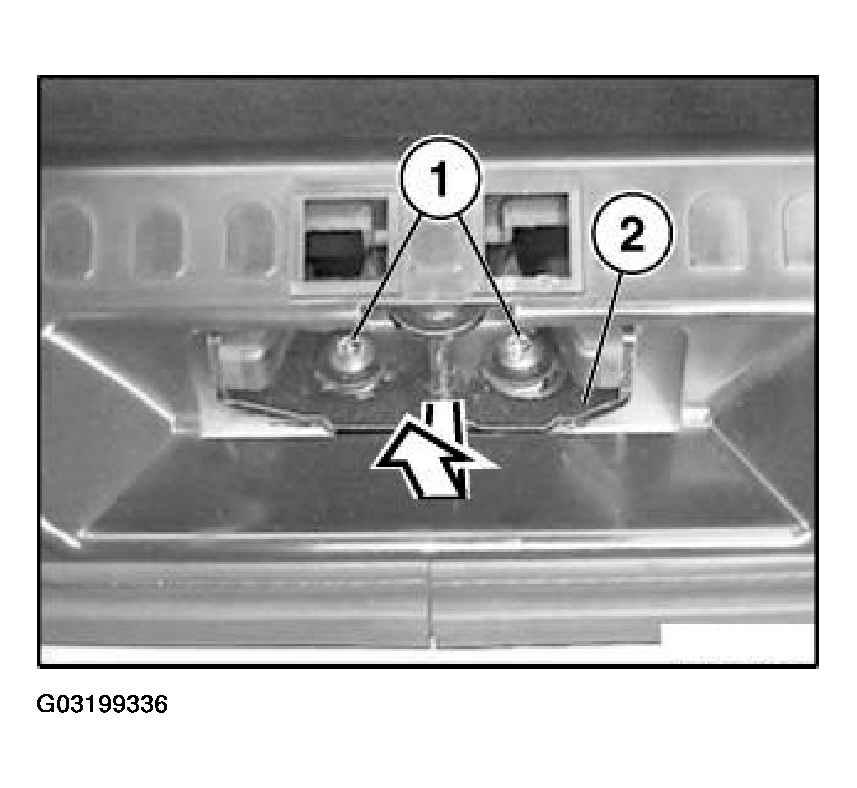

Unfasten screws (1) and remove striker (2).

Fig 2: Removing Striker

Courtesy of BMW OF NORTH AMERICA, INC.
