51 44 007 Removing and installing/replacing roof liner (with glass tilt roof) (Z3 Coupe, M Coupe)

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

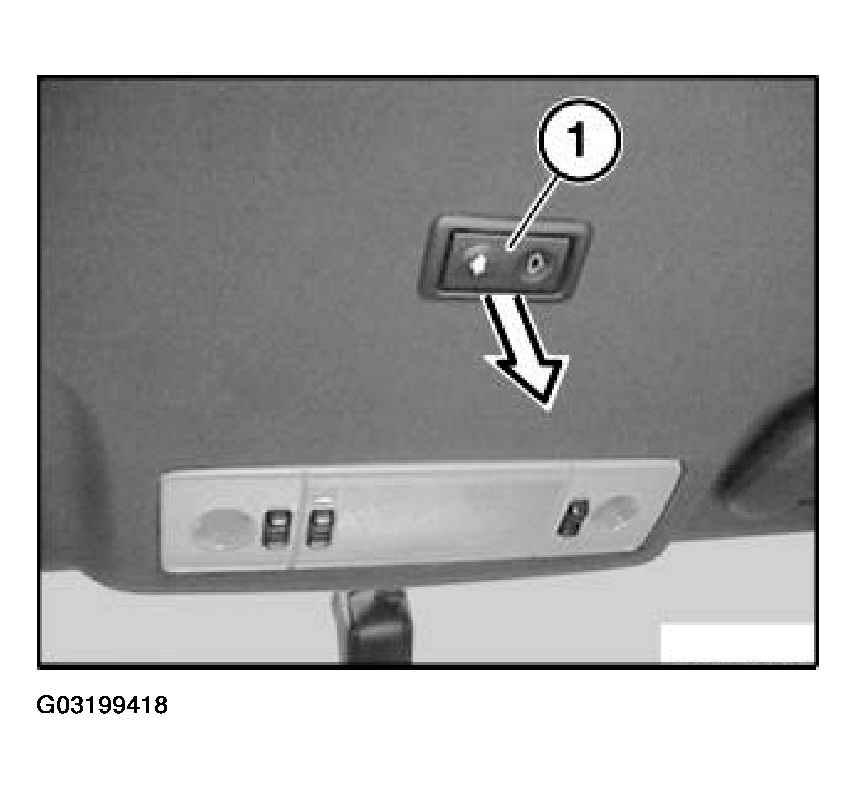

Lever out switch (1) and disconnect plug connection.

Fig 1: Removing Switch

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: When working on the glass tilt roof, the roof liner is only lowered (not removed).
In this case the windshield is not removed.

Further work, refer to Remove (lower) roof liner, refer to 51 44 005 REMOVING AND INSTALLING/REPLACING ROOF LINER (Z3 COUPE, M COUPE).
