51 44 005 Removing and installing/replacing roof liner (Z3 Coupe, M Coupe): Notes

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Remove entire ceiling light, refer to 63 31 000

Remove luggage compartment light, refer to 63 31 080

Remove both trim pieces for door pillar (B-pillar), refer to 51 43 150 Removing and installing/replacing panel for door pillar, left or right (Z3 coupe, M coupe) .

Remove both trim pieces for rear roof pillar (C-pillar), refer to 51 43 251 Removing and installing/replacing panel for roof pillar at rear (C-pillar), left or right (Z3 coupe, M coupe) .

Remove both sun visors and counter supports, refer to 51 16 080 Removing and installing/replacing sun visor and counter support on left or right (Z3 coupe, M coupe) .

Remove both speaker finishers for rear speakers, refer to 65 12 020 .

On version with HiFi system also:

Remove both speaker finishers for tweeters, refer to 65 13 100 .

NOTE: If the roof liner is only to be lowered, the windshield is not removed and only the A-pillar trim is removed.

Only when lowering roof liner:

Remove trim piece for front roof pillar (A -pillar), refer to 51 43 201 Removing and installing/replacing panel for roof pillar, front left or right (Z3 Roadster, M Roadster, Z3 Coupe, M Coupe)

Only when removing and installing/replacing roof liner:

Remove windshield, refer to 51 31 000 Removing and installing windshield (Z3 Roadster, M Roadster, Z3 Coupe, M Coupe) .

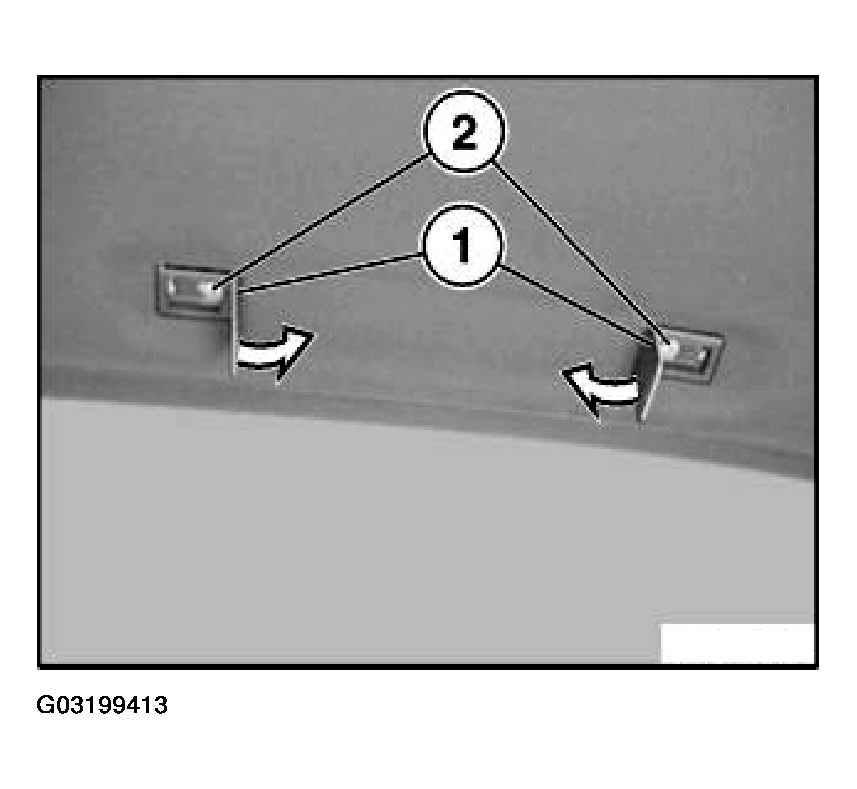

Lift out inserts (1).

Release screws (2) and remove finishers.

Fig 1: Removing Finishers

Courtesy of BMW OF NORTH AMERICA, INC.

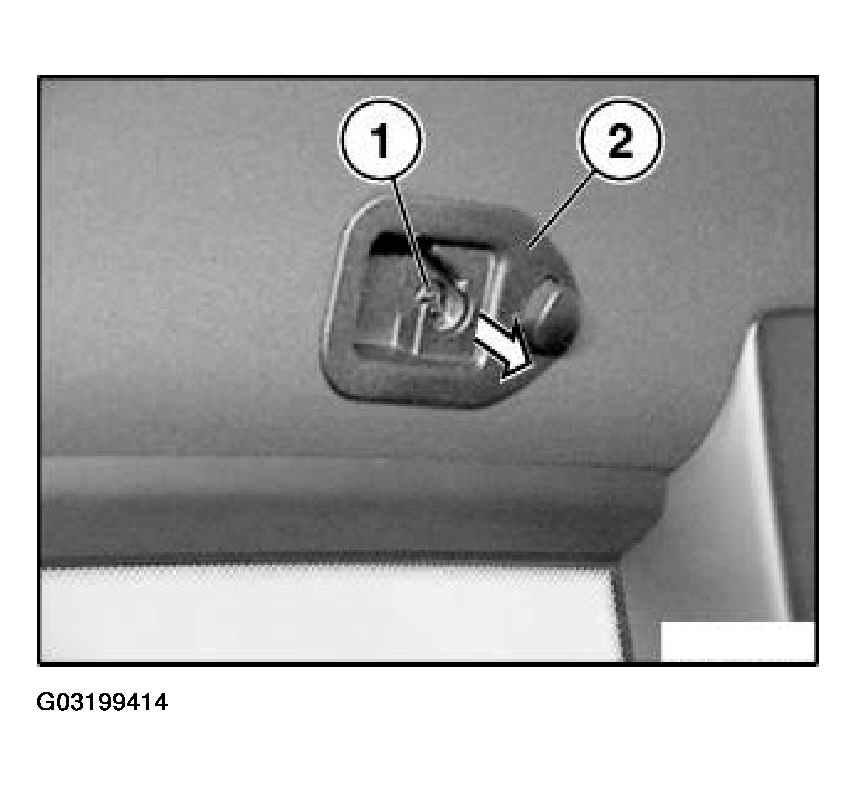

Unfasten screw (1) and remove left/right hanging hook (2).

Fig 2: Removing Hanging Hook

Courtesy of BMW OF NORTH AMERICA, INC.

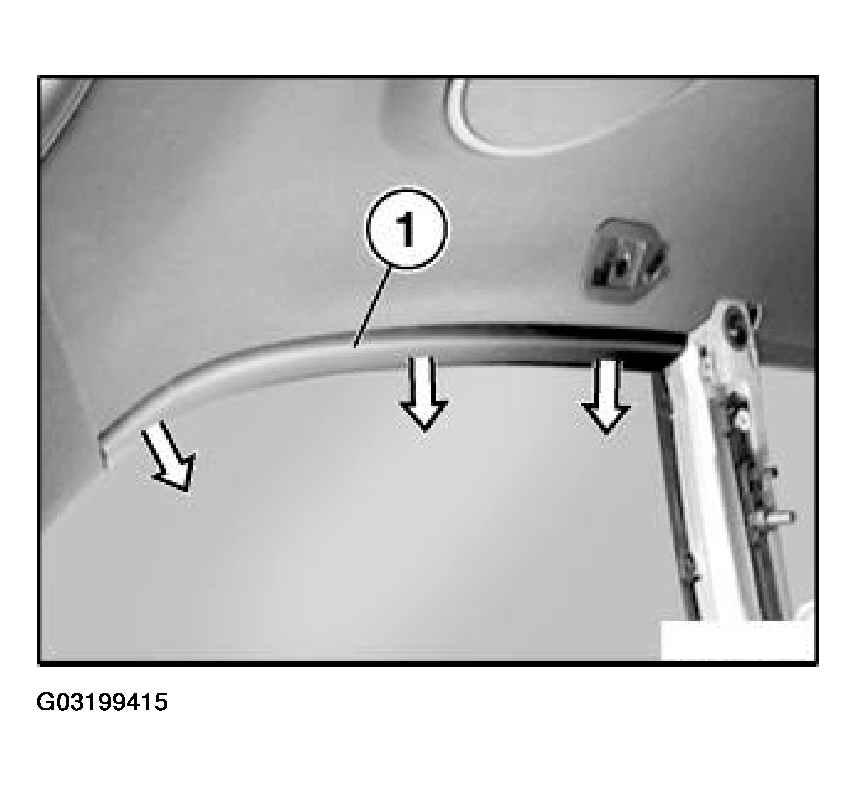

Pull off trim (1) downward.

Fig 3: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.
