51 44 005 Removing and installing/replacing roof liner (Z3 Coupe, M Coupe): Installation:

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

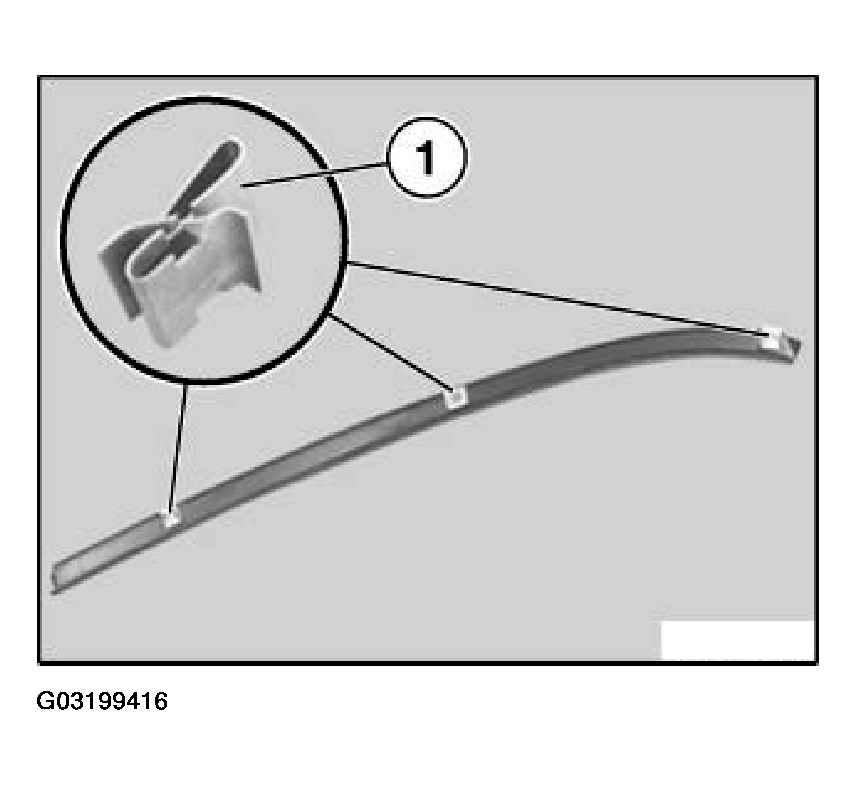

If applicable, replace defective clips (1).

Fig 1: Removing Defective Clips

Courtesy of BMW OF NORTH AMERICA, INC.

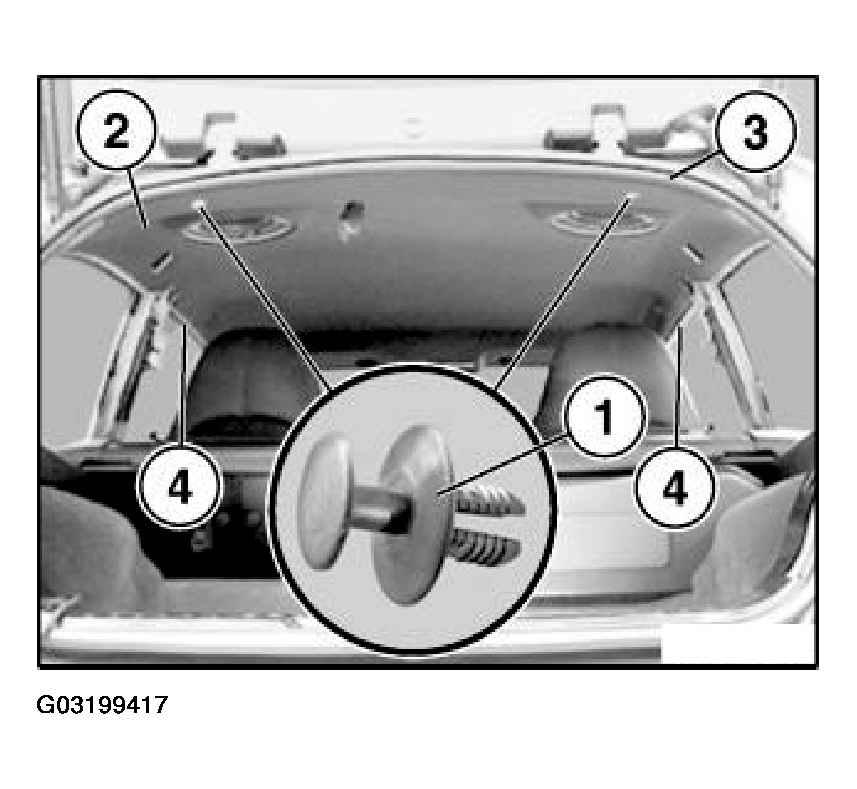

Release expansion rivets (1).

Thread headlining (2) out of seals (3) at rear and at doors (4).

Lift out headlining (2) through windscreen opening.

Fig 2: Lifting Out Headlining

Courtesy of BMW OF NORTH AMERICA, INC.
