51 49 008 Removing and installing (entire) tailgate trim (Z3 coupe, M coupe): Installation:

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Install new cover caps (1).

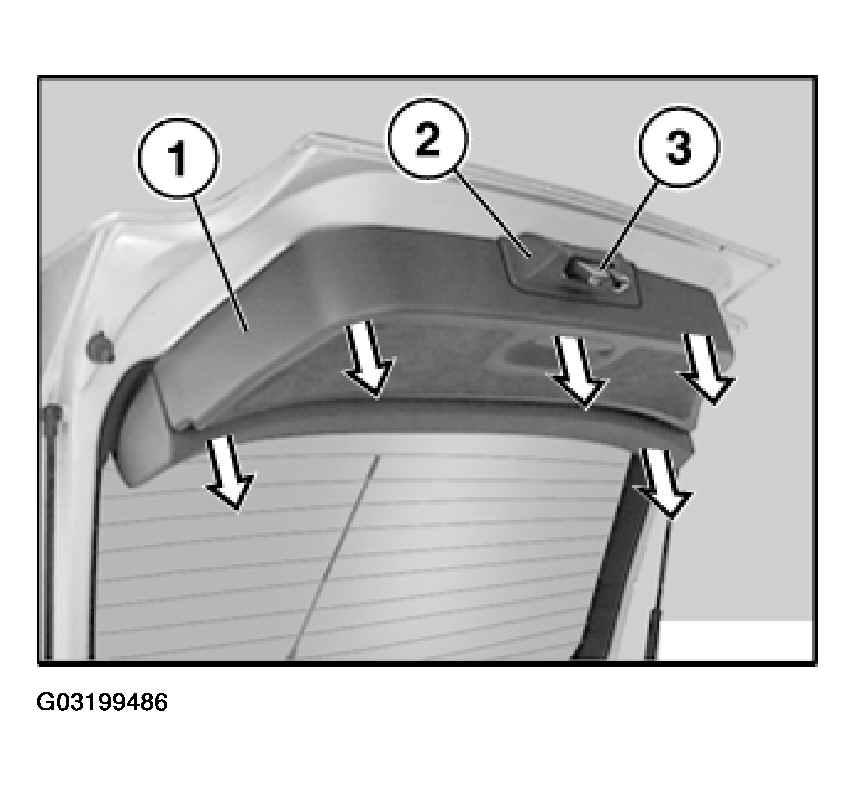

Unclip panelling (1) for tailgate downward.

NOTE: When removing panelling, do not damage trim (2) on upper section of trunk lid lock (3).

Fig 1: Removing Panelling

Courtesy of BMW OF NORTH AMERICA, INC.

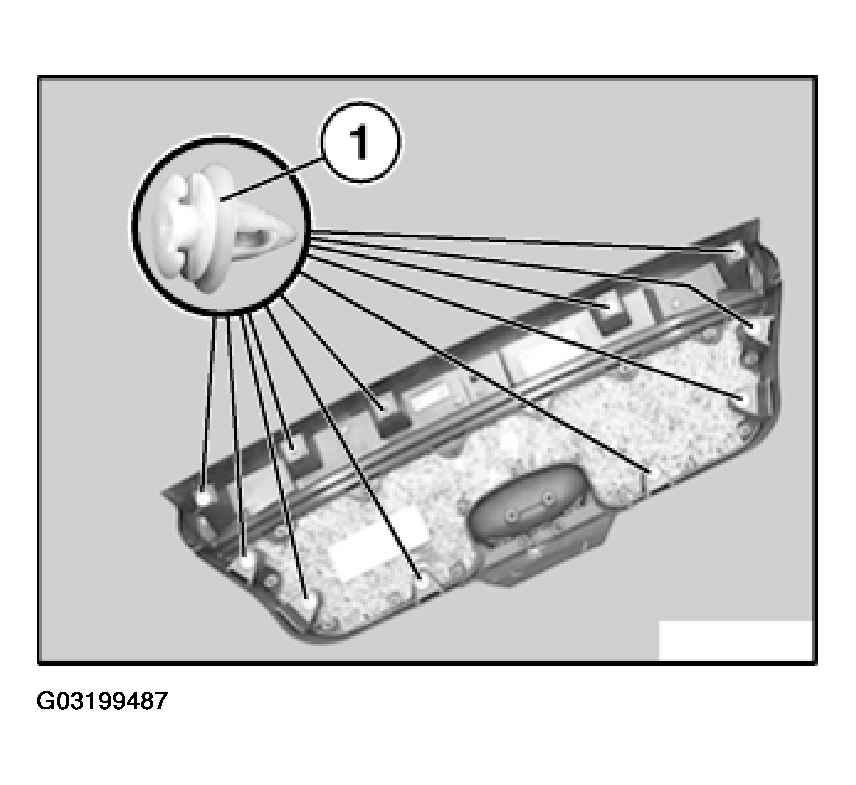

If necessary, replace defective clips (1).

Fig 1: Removing Defective Clips

Courtesy of BMW OF NORTH AMERICA, INC.
