(Bumper removed)

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

(If necessary, remove front bumper.)

Unfasten nut (1) and remove shock absorber (2).

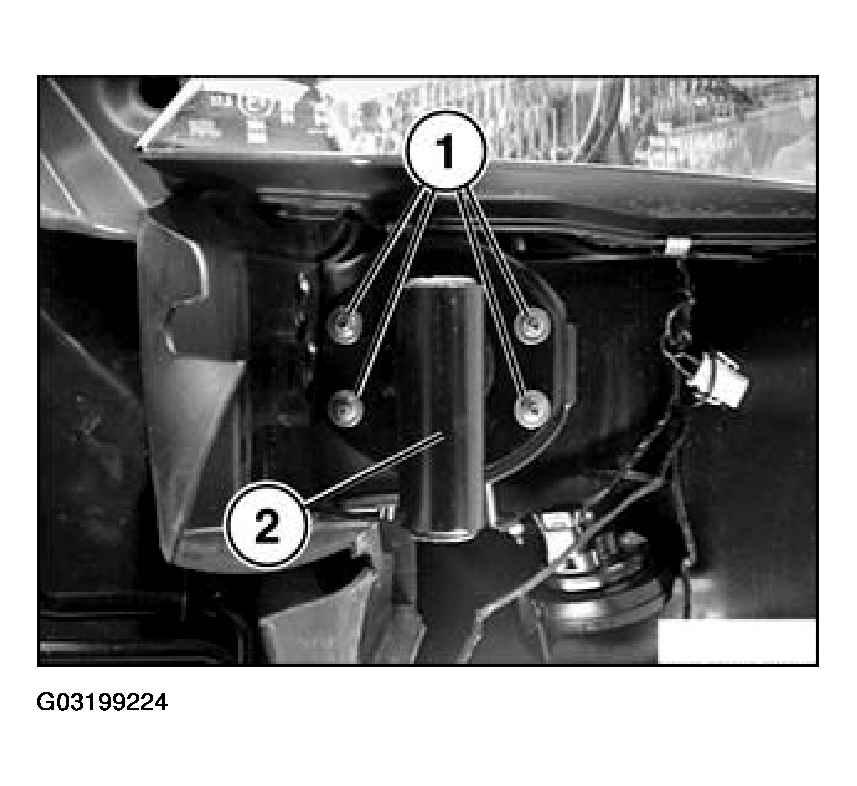

Fig 1: Removing Shock Absorber
G03199224Courtesy of BMW OF NORTH AMERICA, INC.

Tightening Torque, 9 Nm.
