51 47 154 Removing and installing side finisher in luggage compartment at front left or right (Z3 coupe, M coupe): Notes
WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.
Remove side finisher in luggage compartment at rear, refer to 51 47 155 Removing and installing/replacing breast in luggage compartment at rear left or right (Z3 coupe, M coupe) .
Remove trim for door pillar, refer to 51 43 150 Removing and installing/replacing panel for door pillar, left or right (Z3 coupe, M coupe) .
Removing luggage compartment separating wall trim at left or right, refer to 51 46 041 Removing and installing/replacing luggage compartment separating wall trim on left or right (Z3 coupe, M coupe)

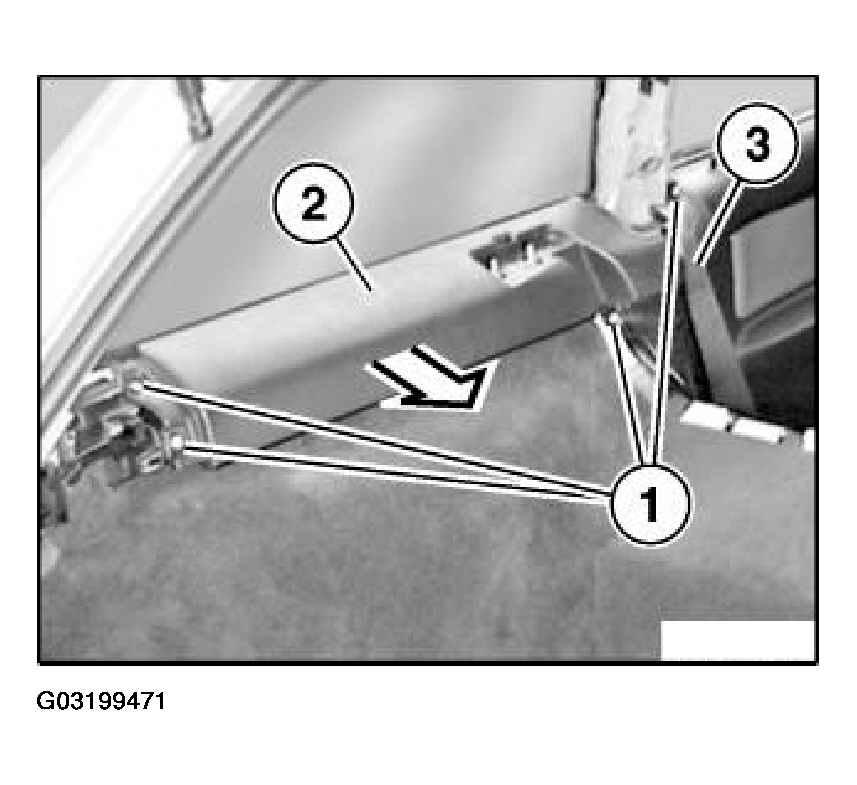

Unscrew bolts (1). Unclip side finisher (2) toward inside and remove.
