51 47 145 Removing and installing/replacing roller sun blind (Z3 coupe, M coupe): Installation:

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

If applicable, replace defective clips (1).

Fig 1: Locating Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts (1) on left/right.

Lever out and remove roller sun blind (2) towards top.

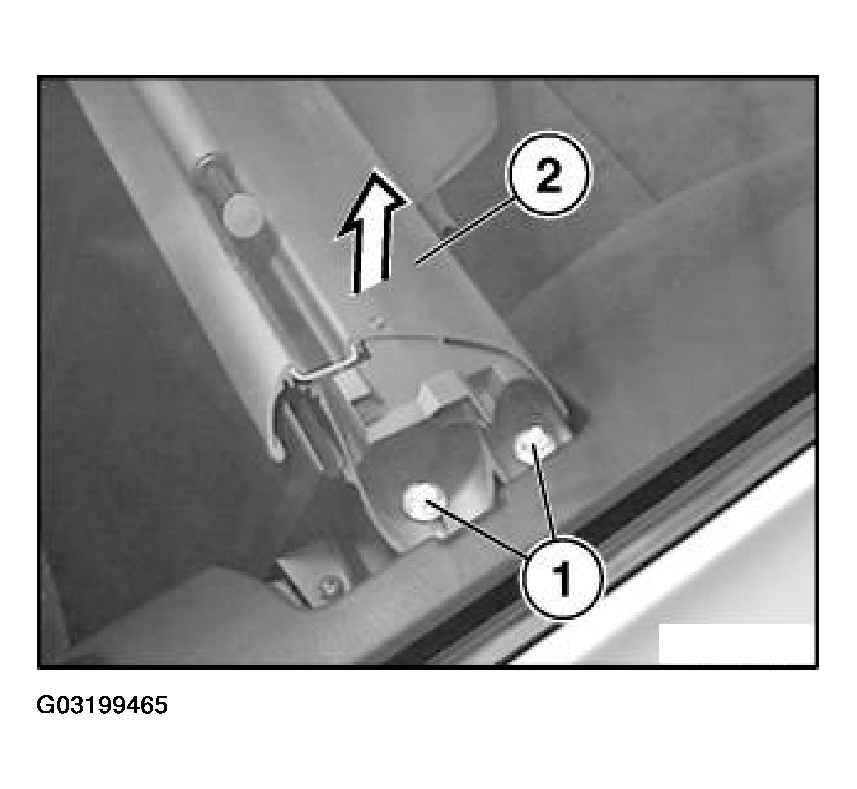

Fig 2: Removing Roller Sun Blind

Courtesy of BMW OF NORTH AMERICA, INC.

Check function.
