23 12 056 Replacing Radial Seal For Output Flange (S5D 200G/ 250G): Installation:

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Do not fit retaining plate.

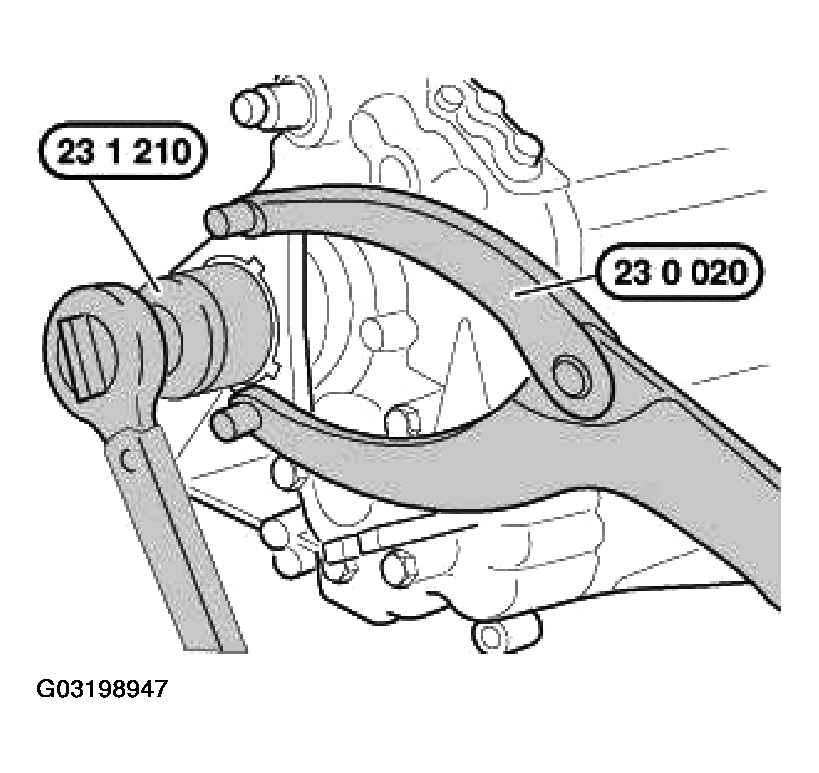

Brace output flange with special tool 23 0 020.

Fig 1: Releasing Collar Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release collar nut with special tool 23 1 210.

Install collar nut with screw retaining compound.

Tightening torque, 23 21 1AZ. Refer to 23 21 TRANSMISSION SHAFTS .

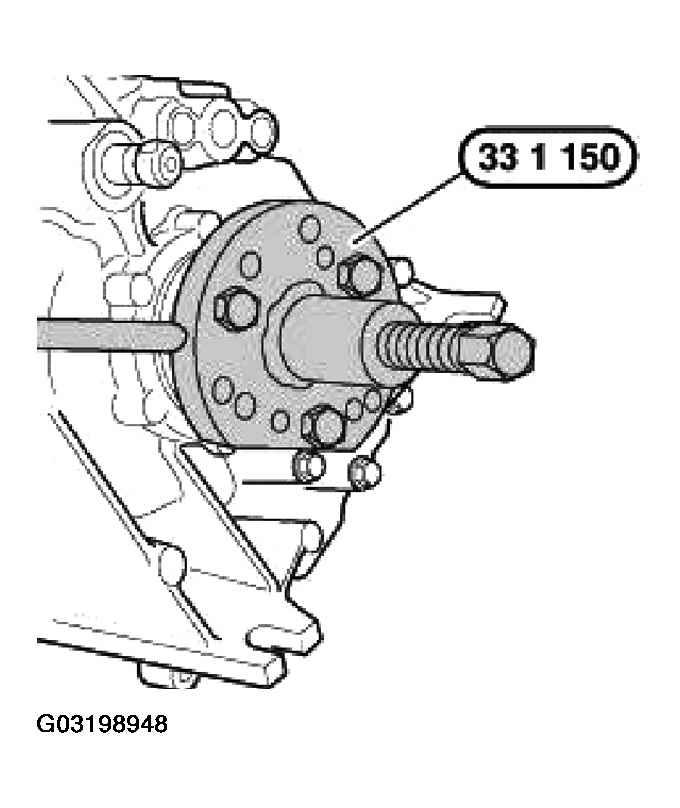

Detach output flange with special tool 33 1150 from output shaft.

Fig 1: Detaching Output Flange

Courtesy of BMW OF NORTH AMERICA, INC.

For transmissions from year of manufacture 01/99: heat output flange to approx. 80°C, e.g. with a hot air blower. Slide output flange onto the output shaft.

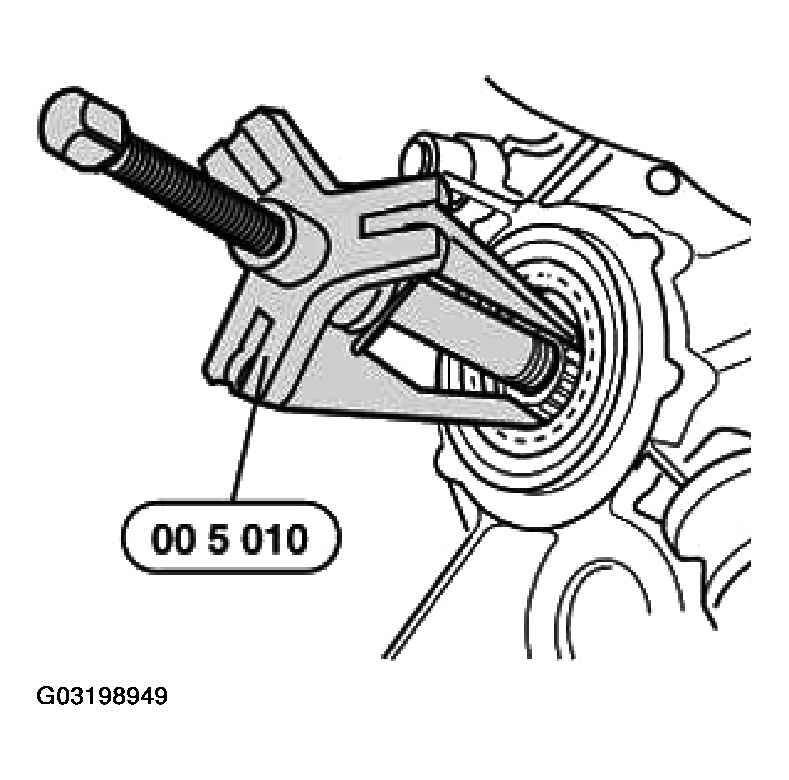

Remove radial seal with special tool 00 5 010.

Fig 1: Removing Radial Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Coat sealing lips of new radial seal with transmission oil.

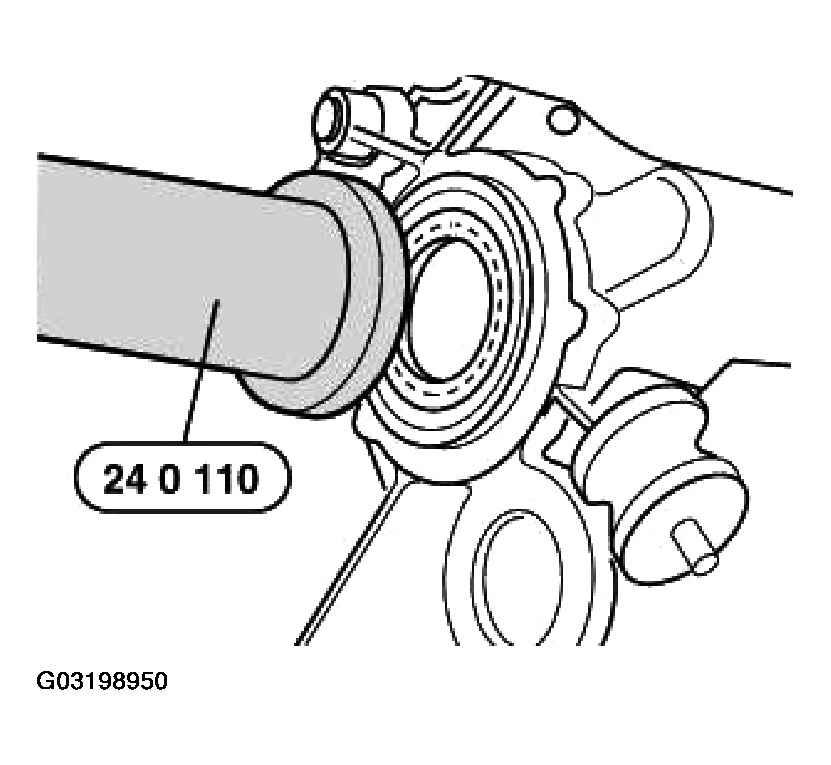

Drive in radial seal flush with special tool 24 0 110.

Fig 2: Installing Radial Seal

Courtesy of BMW OF NORTH AMERICA, INC.
